Full Welded Compound Steel Grating Plate Zinc Coating For Building Material
Full Welded Compound Steel Grating Plate Zinc Coating For Building Material
Specifications
Brand Name :
CHENG HE
Model Number :
A36 Q195 Q235 Q275 Q345 304 316 304L 316L
Certification :
ISO9001
Place of Origin :
HE BEI,CHINA
MOQ :
1pc
Payment Terms :
D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100T/DAY
Delivery Time :
15-20 Days
Packaging Details :
standard packing ,Bundle with metal pallet in Conatiners or as the customs requirement
Material :
A36 Q195 Q235 Q275 Q345 304 316 304L 316L
Technology :
welded / pressure locked
Name :
Full Welded A36 S275 Q235 Galvanized Steel Walkway Grating for Building Material
Surface treatment: :
Hot Galvanized
OEM :
available
Specification :
YB/T4001 or NAAMM or BS4592 or JJS
Description

Full Welded A36 S275 Q235 Galvanized Steel Walkway Grating for Building Material

Description:

Composite steel grid grating is composed by steel grid grating of certain load-bearing and checkered plates.

This kind of bar gratings may deform going through the hot dipped zinc coating process. So heavy type steel bar with big gauge is normally chosen in making composite steel grid gratings.

The checkered plates are normally in the thickness of 3mm, 4mm, 5mm or 6mm.

composite lattice steel plate by hot-dip zinc processing, it will be due to thermal stress generated warpage, in particular the use of larger models steel grid plate, school-more difficult, please note that selection.

Grating Standardizations:

Countries National Standards for Grating Materials Galvanizing Standards
China YB/T 4001.1-2007 GB 700-88 GB/T13912-2002
America ANSI/NAAMM(MBG531-00) ASTM(A36) ASTM(A123)
Britain BS4592-1995 BS4360(43A ) BS729
Australia AS1657-1992 AS3679 AS1650

Shipping Information:

  • FOB Port:Tianjin
  • Lead Time:7 - 15 days
  • Dimensions per Unit:5.8 × 1 × 0.03 Meters
  • Weight per Unit:200 Kilograms
  • Units per Export Carton:1000
  • Export Carton Dimensions L/W/H:11.8 × 2.35 × 2.35 Meters
  • Export Carton Weight:27 Tons (US)

Main Export Markets:

  • Asia
  • Australasia
  • Central/South America
  • Eastern Europe
  • Mid East/Africa
  • North America
  • Western Europe

Our Services:

1. We can provide free steel bar grating samples of small sizes, but customers need to pay the express cost.(This can be discussed)

2. OEM is accepted. We have technical engineers. Then we can design steel bar grating for customers’

projects, and make

products according to customers’ drawing.

3. Once receiving customers’ inquiries. Our company promises to provide services within 24 hours.

Installation Method:

  1. Directly weld the steel grating plate or footboard in the support steel structure, and the welding place brushes zinc powder paint.
  2. Uses special-purpose steel grating installment clamp, which does not destroy galvanization level, disassembles and assembles conveniently. Each set of installation clamp includes up-clamp, down-clamp, head bolt and nut.
  3. According to the need, provide stainless steel installment clamp or bold jointing and so on tight method.
  4. Generally the gap between steel grating plate is 100mm.
  5. The steel grating plate which approaches the vibration should weld or add rubber packing.

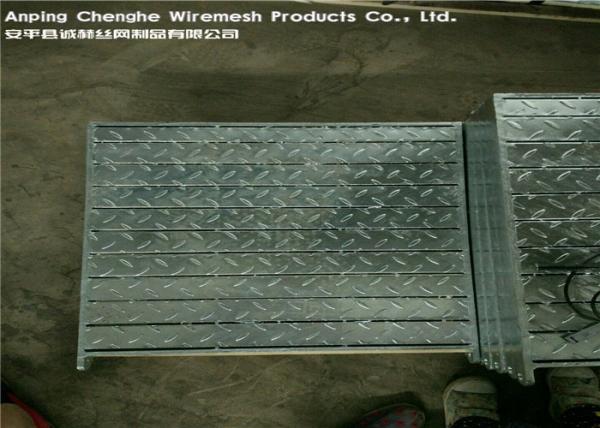

Picture;

Full Welded Compound Steel Grating Plate Zinc Coating For Building Material
