Steel Grid Trench Drain Metal Grate High Bearing Bright Surface Good Ventilation
Steel Grid Trench Drain Metal Grate High Bearing Bright Surface Good Ventilation
Steel Grid Trench Drain Metal Grate High Bearing Bright Surface Good Ventilation
Steel Grid Trench Drain Metal Grate High Bearing Bright Surface Good Ventilation
Specifications
Brand Name :
CHENG HE
Model Number :
Q195 Q235 Q275 Q345 SS304 316 304lL 316L
Certification :
ISO9001
Place of Origin :
HE BEI
MOQ :
1pc
Payment Terms :
D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100T/DAY
Delivery Time :
15-20DAYS
Packaging Details :
PALLET
Material :
Q235 195 275 345 SS304 316 304lL 316L
Finished :
gavlanized
Length :
0.1-6m
Width :
0.1-2m
Shape :
According to drawing
Height :
10-300mm
Description

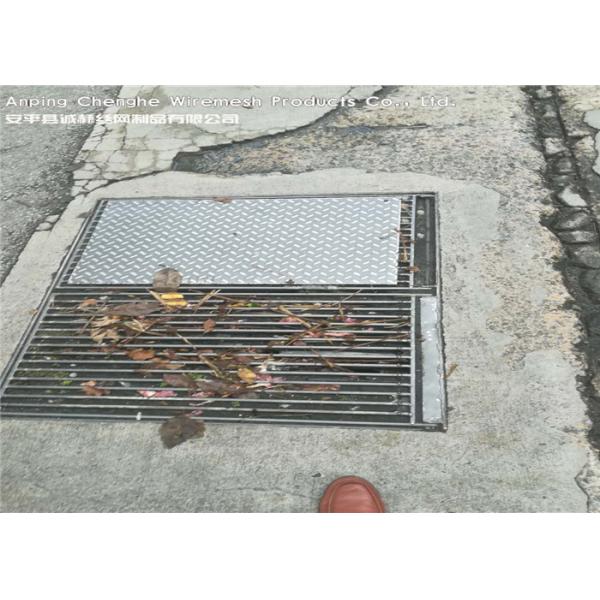

Q195 235 SS304 316 Steel Grating for Airfield Highway Bridge Drain Cover

Description:

Steel grid is a product, made of bearing steel bars welded to the linking wire rod of high voltage resistance welding, which is further processed by cutting, slotting, stiletto , trimming and edge binding.

Feature:

high strength, light structure with firm grids pressure welded structure and high bearing property, easy suspending installation, beautiful appearance ,durability with hot galvanized finish, good anti-corrosive property, and bright surface, good ventilation, lighting. cooling and anti-explosion. and deposit-proof.

Materials & Finishes

Pedestrian gratings are manufactured in carbon steel and 300 series stainless steels. Carbon steel products are available bare (no finish), painted with manufacturers standard paint, or hot dip galvanized. Stainless steel products are available mill finish, commercially cleaned or electro-polished.

Manufacturing Methods

Steel Grid Trench Drain Metal Grate High Bearing Bright Surface Good Ventilation

WELDED GRATING

Economical design ideal for most industrial applications. Manufactured by welding the bearing bar/cross bar intersection, typically with automated forge welding equipment. Available in carbon steel and stainless steel.		 Steel Grid Trench Drain Metal Grate High Bearing Bright Surface Good Ventilation

DOVETAIL PRESSURE LOCKED

Popular for the manufacture of aluminum, stainless steel, and close mesh gratings. Cross bars are inserted into pre-punched holes in the bearing bars and hydraulically deformed to lock the bars in place.
Steel Grid Trench Drain Metal Grate High Bearing Bright Surface Good Ventilation

SWAGED PRESSURE LOCKED

Assembled by inserting pre-punched bearing and cross bars into an “eggcrate” configuration and deforming the cross bars under intense hydraulic pressure. Available in all materials and ideal for architectural and ornamental applications.		 Steel Grid Trench Drain Metal Grate High Bearing Bright Surface Good Ventilation

RIVETED GRATING

Exceptionally durable grating manufactured by riveting bearing bars and bent connecting bars at their contact points. Excellent for applications involving impact loads and repetitive traffic patterns.
Steel Grid Trench Drain Metal Grate High Bearing Bright Surface Good Ventilation

Product PictureSteel Grid Trench Drain Metal Grate High Bearing Bright Surface Good VentilationSteel Grid Trench Drain Metal Grate High Bearing Bright Surface Good Ventilation
