Sidewalk Large Industrial Metal Floor Grates With Hinge 0.1-6m Length
Sidewalk Large Industrial Metal Floor Grates With Hinge 0.1-6m Length
Sidewalk Large Industrial Metal Floor Grates With Hinge 0.1-6m Length
Sidewalk Large Industrial Metal Floor Grates With Hinge 0.1-6m Length
Specifications
Brand Name :
CHENG HE
Model Number :
Q195 Q235 Q275 Q345 SS304 316 304lL 316L
Certification :
ISO9001
Place of Origin :
HE BEI
MOQ :
1KG
Payment Terms :
D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100T/DAY
Delivery Time :
15-20DAYS
Packaging Details :
PALLET
Material :
Q235 195 275 345 SS304 316 304lL 316L
Finished :
gavlanized
Length :
0.1-6m
Width :
0.1-2m
Shape :
According to drawing
Height :
10-300mm
Description

Q195 235 SS304 316 Hot Gavlanized Pedestrian Grating for sidewalk with Hinge

Description:

Applications for our hot gavlanized pedestrian grating products include airfield landing mats and trenches, airplane unloading ramps, highway bridge decking and sidewalks, concrete reinforcements, vault covers, ramps and docks, industrial flooring and trenches, off-shore drilling rigs and paper mills

Materials & Finishes

Pedestrian gratings are manufactured in carbon steel and 300 series stainless steels. Carbon steel products are available bare (no finish), painted with manufacturers standard paint, or hot dip galvanized. Stainless steel products are available mill finish, commercially cleaned or electro-polished.

Manufacturing Methods

Sidewalk Large Industrial Metal Floor Grates With Hinge 0.1-6m Length

WELDED GRATING

Economical design ideal for most industrial applications. Manufactured by welding the bearing bar/cross bar intersection, typically with automated forge welding equipment. Available in carbon steel and stainless steel.		 Sidewalk Large Industrial Metal Floor Grates With Hinge 0.1-6m Length

DOVETAIL PRESSURE LOCKED

Popular for the manufacture of aluminum, stainless steel, and close mesh gratings. Cross bars are inserted into pre-punched holes in the bearing bars and hydraulically deformed to lock the bars in place.
Sidewalk Large Industrial Metal Floor Grates With Hinge 0.1-6m Length

SWAGED PRESSURE LOCKED

Assembled by inserting pre-punched bearing and cross bars into an “eggcrate” configuration and deforming the cross bars under intense hydraulic pressure. Available in all materials and ideal for architectural and ornamental applications.		 Sidewalk Large Industrial Metal Floor Grates With Hinge 0.1-6m Length

RIVETED GRATING

Exceptionally durable grating manufactured by riveting bearing bars and bent connecting bars at their contact points. Excellent for applications involving impact loads and repetitive traffic patterns.
<div class="fltlft" ;="" padding-top:10px;"="" style="float: left;">
Sidewalk Large Industrial Metal Floor Grates With Hinge 0.1-6m Length

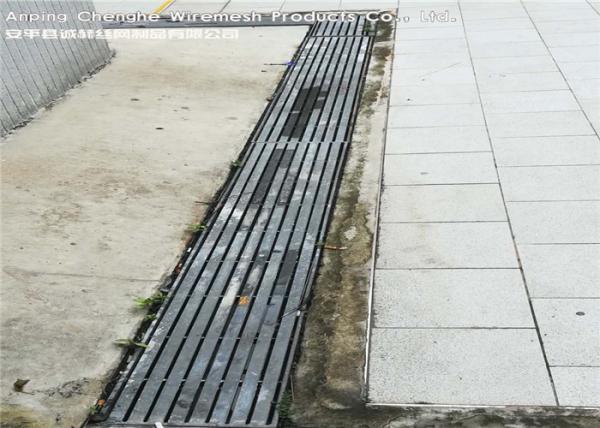

Product Picture

Sidewalk Large Industrial Metal Floor Grates With Hinge 0.1-6m Length
