Strong Stainless Steel Decorative Expanded Metal Panels Width 10cm - 2m
Strong Stainless Steel Decorative Expanded Metal Panels Width 10cm - 2m
Specifications
Brand Name :
CHENG HE
Model Number :
Q195 Q235 Q275 Q345 SS304 316 304lL 316L
Certification :
ISO9001
Place of Origin :
HE BEI
MOQ :
1KG
Payment Terms :
D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100T/DAY
Delivery Time :
15-20DAYS
Packaging Details :
in waterproof paper in rolls. Custom packing available at request
Material :
Galvanized Sheet, Plain Steel Sheet, Aluminum Sheet, Stainless Steel Sheet, Nickel Sheet, PVC coat Expanded Metal
Finished :
gavlanized/PVC
Name :
Q195 235 304 316 304L 316L Expanded Metal Mesh in Width 10cm-2m
Width :
0.1-2m
Thickness :
0.3mm-12mm
Height :
10-300mm
Description

Q195 235 304 316 304L 316L Expanded Metal Mesh in Width 10cm-2m

Description:

Expanded metal sheet is made by first creating multiple slits in the sheet, and then stretching the sheet. The stretching creates a unique diamond pattern opening with one of the strands protruding at a slight angle. These raised strands can be flattened later in the process if desired. As you can see this process creates no waste (thus keeping down production costs) and it can add structural strength to the product.

(1) Expanded Metal Material: Galvanized Sheet, Plain Steel Sheet, Aluminum Sheet, Stainless Steel Sheet, Nickel Sheet, PVC coat Expanded Metal.

(2) Expanded Metal Product Feature: Expanded metal has features of strong, beautiful appearance, and good ventilation etc. Colors can be applied on expanded metal.

Strand width: 0.3mm-12mm

(3) Application of Expanded Metal: Expanded Metal is also named Expanded Mesh or Expanded Metal Mesh. Expanded Metal is widely in industrial, building, household railway, highway, construction, grain, mechanical maintenance, and musical facilities.


Application:

Expanded Metal is typically used for screening, ventilating or security as a guard. The openings permit passage of light, air, heat and sound, and sheet is lightweight and easy to fabricate and form. Decorative patterns have the same properties and are used aesthetically. Decorative patterns may be found in applications like retail shelving, signage, partitions, ceiling tiles, and more.

thickness of plate
(mm) nominal size of mesh size of standard products Calculated weigth
(mm) (mm)
THICKNESS SWD LWD STRAND WIDTH LENGTH kg/m2
0.8 10 25 1.12 1.41
12 30 1.35
15 40 1.68
2 18 50 2.03 1800 3600
22 60 2.47 2000 4000
29 80 3.26 2500 5000 4.42
36 100 4.05
44 120 4.95 5.29
3 36 100 4.05
44 120 4.95
55 150 4.99 2000 5000 4.27
2500 6400
65 180 4.6 2000 6400 3.33
2500 8000
4 22 60 4.5 1500 2000-3000 12.84
30 80 5 2000-4000 10.46
38 100 6 2000 2000-4500 9.91
5 24 60 6 2000-3000 19.62
35 80 6 2000-4000 14.71
38 100 7 2000-4500 14.67
56 150 6 2000-6000 8.41
76 200 6 2000-6000 6.19
6 32 80 7 2000-4000 20.6
38 100 7 2000-4500 17.35
56 150 7 2000-6000 11.77

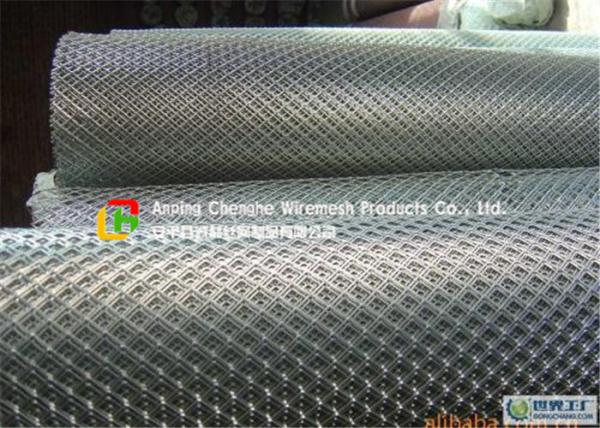

Product Picture
