5 Micron Stainless Steel Wire Mesh Dutch Twill Cloth Filter Screen Ultrathin Thickness
5 Micron Stainless Steel Wire Mesh Dutch Twill Cloth Filter Screen Ultrathin Thickness
Specifications
Brand Name :
CHENG HE
Model Number :
Q195 Q235 Q275 Q345 SS304 316 304lL 316L
Certification :
ISO9001
Place of Origin :
HE BEI
MOQ :
1KG
Payment Terms :
D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100T/DAY
Delivery Time :
15-20DAYS
Packaging Details :
in waterproof paper in rolls. Custom packing available at request
Material :
SS304 316 304lL 316L
Name :
Dutch Twill Cloth Filter Screen 5 Micron Stainless Steel Wire Mesh
wire diameter :
0.025-2mm
Width :
0.2-8m
Lenght :
100' 50' or your request
Height :
Tianjin(Xingang),China
Description
Dutch Twill Cloth Filter Screen 5 Micron Stainless Steel Wire Mesh

Description:

Stainless Steel Woven Wire Mesh and Stainless Steel Woven Wire Cloth are widely used in petroleum, chemical industry, environment protection, mine, airspace, paper-making, electronic, metallurgy, etc.

Special size and specification are available according to customers requirements.

Material for weaving stainless steel wire mesh ( wire cloth ) is divided into Type 302, Type 304, Type 304L, Type 316 and Type 316L.

5 Micron Stainless Steel Wire Mesh Dutch Twill Cloth Filter Screen Ultrathin Thickness

5 Micron Stainless Steel Wire Mesh Dutch Twill Cloth Filter Screen Ultrathin Thickness

Advantages:

1.Standard opening sizes,uniform opening and good permeability

2.Ultrathin thickness

3.Precise control filtration effect

4.Corrosion resistant and good creep resistance

5.Acid,alkali and wear resistance

6.High temperature performance

7.Low-elongation and high tension



Quality Management:

Digital Controlled Machines & Well-Trained Staff:
Our Digital Controlled Welding Machines and our well-trained workers also ensure ourstainless steel welded wire mesh can satisfy the top quality requirement from worldwide


Stainless Steel Wire Quality:

For stainless steel welded wire mesh, the material quality control is regarded as the vital importance. We have signed Long-term Buying Contract with Chinese best stainless steel wire manufacturer-Taiyuan Stainless Steel Wire Corp, this ensure our stainless steel wire are the top quality in China.

Trade Information

1. Port: FOB SHANGHAI, or CIF & CNF discharging any port
2. MOQ: 30 square meters
3. Delivery time: 7-30 days
4. Packing: waterproof paper or as customers' requirements
5. Shipment: Sea Shipping, Air Freight, DHL
6. Supply capability: 1,000 square meters / month

Typical Weaving Patterns for Stainless Steel Wire Mesh: Plain weave, twill weave, dutch weave.

General Use: Stainless steel wire mesh, with its excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc.

Mesh/Inch Wire Diameter Aperture Open Area Weight(LB) /100 Square Foot
Inch MM Inch MM
1x1 .080 2.03 .920 23.37 84.6 41.1
2X2 .063 1.60 .437 11.10 76.4 51.2
3X3 .054 1.37 .279 7.09 70.1 56.7
4X4 .063 1.60 .187 4.75 56.0 104.8
4X4 .047 1.19 .203 5.16 65.9 57.6
5X5 .041 1.04 .159 4.04 63.2 54.9
6X6 .035 .89 .132 3.35 62.7 48.1
8X8 .028 .71 .097 2.46 60.2 41.1
10X10 .025 .64 .075 1.91 56.3 41.2
10X10 .020 .51 .080 2.03 64.0 26.1
12X12 .023 .584 .060 1.52 51.8 42.2
12X12 .020 .508 .063 1.60 57.2 31.6
14X14 .023 .584 .048 1.22 45.2 49.8
14X14 .020 .508 .051 1.30 51.0 37.2
16X16 .018 .457 .0445 1.13 50.7 34.5
18X18 .017 .432 .0386 .98 48.3 34.8
20X20 .020 .508 .0300 .76 36.0 55.2
20X20 .016 .406 .0340 .86 46.2 34.4
24X24 .014 .356 .0277 .70 44.2 31.8
30X30 .013 .330 .0203 .52 37.1 34.8
30X30 .012 .305 .0213 .54 40.8 29.4
30X30 .009 .229 .0243 .62 53.1 16.1
35X35 .011 .279 .0176 .45 37.9 29.0
40X40 .010 .254 .0150 .38 36.0 27.6
50X50 .009 .229 .0110 .28 30.3 28.4
50X50 .008 .203 .0120 .31 36.0 22.1
60X60 .0075 .191 .0092 .23 30.5 23.7
60X60 .007 .178 .0097 .25 33.9 20.4
70X70 .0065 .165 .0078 .20 29.8 20.8
80X80 .0065 .165 .0060 .15 23.0 23.2
80X80 .0055 .140 .0070 .18 31.4 16.9
90X90 .005 .127 .0061 .16 30.1 15.8
100X100 .0045 .114 .0055 .14 30.3 14.2
100X100 .004 .102 .0060 .15 36.0 11.0
100X100 .0035 .089 .0065 .17 42.3 8.3
110X110 .0040 .1016 .0051 .1295 30.7 12.4
120X120 .0037 .0940 .0064 .1168 30.7 11.6
150X150 .0026 .0660 .0041 .1041 37.4 7.1
160X160 .0025 .0635 .0038 .0965 36.4 5.94
180X180 .0023 .0584 .0033 .0838 34.7 6.7
200X200 .0021 .0533 .0029 .0737 33.6 6.2
250X250 .0016 .0406 .0024 .0610 36.0 4.4
270X270 .0016 .0406 .0021 .0533 32.2 4.7
300X300 .0051 .0381 .0018 .0457 29.7 3.04
325X325 .0014 .0356 .0017 .0432 30.0 4.40
400X400 .0010 .0254 .0015 .370 36.0 3.3
500X500 .0010 .0254 .0010 .0254 25.0 3.8
635X635 .0008 .0203 .0008 .0203 25.0 2.63

Q: Why choose us?
A: 1. We are professional factory with full export experience. It is sure you buy wires from real professional manufacturer, you can get competitive price here. Our production lines are from smelting-drawing-annealing-qualified test to package. We make sure all qualified goods with high quality reach international standard.
2. As experienced exporter, We can give professional advices in transportation method to reduce your cost.
Q: Whether you have any quality certifications?
A: Yes, we have ISO9001 quality system certification .We can also provide other quality
inspection certificates if you need.
Q: How can I know my order production condition?
A: After sending payment, you shall get our financial confirmation payment letter when
we get information from bank. Then you will receive letters and photos so that you can
know your order condition.

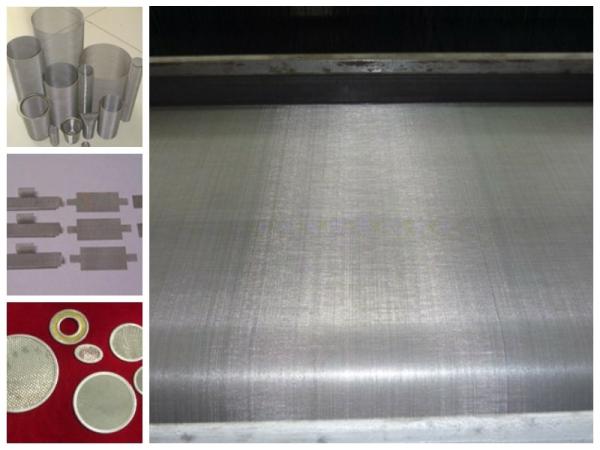

Product Picture

5 Micron Stainless Steel Wire Mesh Dutch Twill Cloth Filter Screen Ultrathin Thickness
