132X64 COG Graphic LCD Module With 6H Oclock Wide Viewing Angle

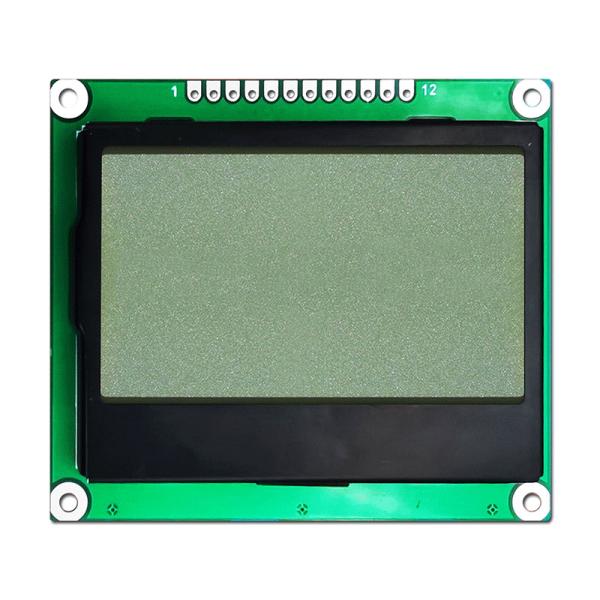

132X64 Graphic COG LCD Module | FSTN + Display /HTM-COG13264C01A-SPI

HTM-COG13264C01A-SPI | Monochrome Graphic Module | 128x64 Pixels | Transflective LCD | Side White Backlight | FSTN (+) Positive Display


HOTLCD 132x64 graphic Liquid Crystal Display module shows dark pixels on a white background. This transflective LCD Display is visible with ambient light or a backlight while offering a wide operating temperature range from -20 to 70 degrees Celsius. This HTM-COG13264C01A-SPI display has an optimal view of 6:00, operates at 3.3V supply voltage and is RoHS compliant.

LCD Product Specifications

Display Format:

132 x 64 Pixels

Display Type:

FSTN (+)

Display Mode:

Transflective

Optimal View:

6:00

Outline L x W x H:

66.0mm x 56.2mm x 5.5mm

Viewing Area L x W:

61mm x 44.15mm

Active Area L x W:

48.81mm x 26.21mm

Supply Voltage:

3.3 V

Backlight:

Side White

Interface:

Parallel

Controller Type:

ST7567

Connection Type:

Operating Temperature:

-20°C ~ 70°C

Storage Temperature:

-30°C ~ 80°C

Added Feature:

Built-in Negative Voltage

Absolute Maximum Ratings

Items

Symbol

MIN.

MAX.

Unit

Condition

Supply Voltage

VDD

-0.3

+3.6

V

VSS = 0V

Input Voltage

VIN

-0.3

VDD+0.3

V

VSS = 0V

Operating Temperature

TOP

-20

+70

℃

No Condensation

Storage Temperature

Tst

-30

+50

℃

No Condensation

Electrical Characteristics

Items Symbol MIN. TYP. MAX. Unit Condition
Operating Voltage VDD 2.8 3.3 - V -
Input High Voltage VIH 0.8 x VDD - VDD V

/CS1,/RES,A0,SCLK

SDA
Input Low Voltage VIL VSS - 0.2 x VDD V
Output High Voltage VOH 0.8 x VDD - VDD V D0~D7
Output Low Voltage VOL VSS - 0.2 x VDD V D0~D7
Operation Current Iop - 100 150 A VDD=3.3

LED Backlight Circuit

Items Symbol MIN. TYP. MAX. Unit Condition
Forword Voltage Vf BLA - 3.3 - V Without Resister
Forword Current If BLA - 45 - A -

All Products

Reliability Testing Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration.
Glass Cleanliness Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material.
Bezel Appearance Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.
PCB Appearance PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.
Soldering Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.

Search Keyword: 132x64 lcd, 132 x 64 lcd, lcd 132 x 64
