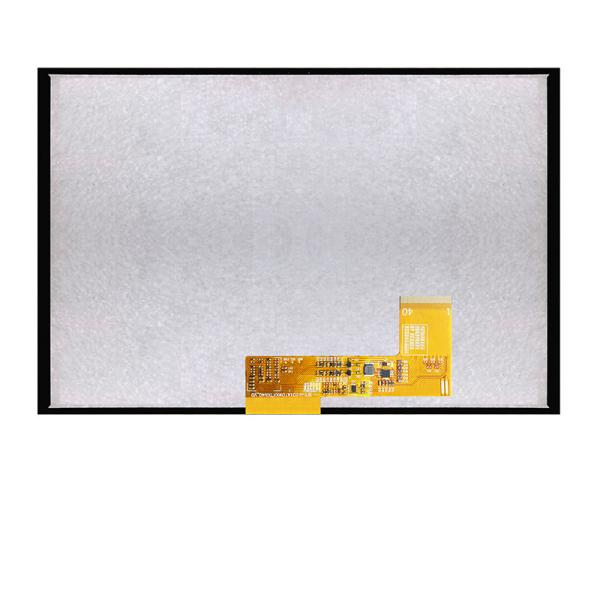

1280x800 Pixels IPS TFT LVDS LCD Module Sunlight Readable Type
1280x800 Pixels IPS TFT LVDS LCD Module Sunlight Readable Type
1280x800 Pixels IPS TFT LVDS LCD Module Sunlight Readable Type
1280x800 Pixels IPS TFT LVDS LCD Module Sunlight Readable Type
1280x800 Pixels IPS TFT LVDS LCD Module Sunlight Readable Type
1280x800 Pixels IPS TFT LVDS LCD Module Sunlight Readable Type
1280x800 Pixels IPS TFT LVDS LCD Module Sunlight Readable Type
1280x800 Pixels IPS TFT LVDS LCD Module Sunlight Readable Type
Specifications
Brand Name :
HOTHMI
Model Number :
TFT-H101A10WXIFTKN40
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Display Format: :
1280x800 Pixels
Display Type: :
Sunlight Readable
Outline L x W x H: :
229.10x148.90x4.35mm
Active Area L x W: :
216.96x135.60mm
Luminance: :
1000cd/m2
Interface: :
LVDS
Controller Type: :
EK79202B1
Operating Temperature: :
-20°C ~ 70°C
Description

1280x800 Pixels IPS TFT LVDS LCD Module Sunlight Readable Type

10.1inch 1280x800 IPS LVDS TFT Module Sunlight Readable/TFT-H101A10WXIFTKN40

TFT-H101A10WXIFTKN40 | 10.1" Sunlight Readable LCD | No Touch Screen | 1280X800 Pixels


This 1280X800 sunlight readable TFT is equipped with a powerful backlight for visibility in bright lighting conditions including direct sunlight. 24-bit LCD display with LVDS interface and full viewing angle. This LCD monitor is RoHS compliant. touchscreen.

General Feature

Item

Standard Value

Unit

Display Size

 10.1

Inch

Number of Pixels

 1280(H)*3(RGB)* 800(V)

dots

Active Area

 216.96(H)* 135.60(V)

mm

Outline Dimension

229.10(H) * 148.90(V) * 4.35(D)

mm

Viewing Direction

FULL O'clock

 -

Interface

LVDS

-

Driver IC

EK79202B1

 -

Driver Condition

 VCI=3.3V(Typ)

V

Backlight

-

 -

Touch Panel

 WHITOUT TOUCH

CTP Driver IC

 - -

Driver Condition

 VDD=3.3V

V

TFT Operation AT

 -20 ～ +70

℃

TFT Storage AT

 -30 ～ +85

℃

TFT Pin Description

Pin NO.

Symbol

Description
1 NC Don't connect
2~3 VCI Digital Power
4 NC Don't connect
5 RESX TFT Reset Pin.low in reset state
6 STBYB

Standby mode mode control.

STBYB = ″VCI″normal operation;STBYB = ″GND″Standby mod
7 GND Ground
8 D0N LVDS data input pins
9 D0P LVDS data input pins
10 GND Ground
11 D1N LVDS data input pins
12 D1P LVDS data input pins
13 GND Ground
14 D2N LVDS data input pins
15 D2P LVDS data input pins
16 GND Ground
17 DCKN LVDS clock input pins.
18 DCKP LVDS clock input pins.
19 GND Ground
20 D3N LVDS data input pins
21 D3P LVDS data input pins
22 GND Ground
23~24 NC Don't connect
25 GND Ground
26~27 NC Don't connect
28 HSD

18-bit / 24-bit input select.

HSD=″VCI″ 24 bit ; HSD=″GND″ 18 bit
29 NC Don't connect
30 GND Ground
31~32 LEDK LED Cathode
33~38 NC Don't connect
39~40 LEDA LED Anode

All Products

Reliability Testing Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration.
Glass Cleanliness Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material.
Bezel Appearance Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.
PCB Appearance PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.
Soldering Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.
Consistency Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units.
Product Integrity Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions.
Glass Color While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed.
ESD Protection & Safety All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices.

Search keyword: tft 10.1, tft 10.1", 10.1 tft lcd, 10.1" tft lcd, 10.1 inch tft lcd, tft lcd 10.1, 10.1 tft display, 10.1" tft display,10.1 inch tft display, tft display 10.1, tft display 10.1"

1280x800 Pixels IPS TFT LVDS LCD Module Sunlight Readable Type1280x800 Pixels IPS TFT LVDS LCD Module Sunlight Readable Type1280x800 Pixels IPS TFT LVDS LCD Module Sunlight Readable Type1280x800 Pixels IPS TFT LVDS LCD Module Sunlight Readable Type1280x800 Pixels IPS TFT LVDS LCD Module Sunlight Readable Type1280x800 Pixels IPS TFT LVDS LCD Module Sunlight Readable Type1280x800 Pixels IPS TFT LVDS LCD Module Sunlight Readable Type1280x800 Pixels IPS TFT LVDS LCD Module Sunlight Readable Type1280x800 Pixels IPS TFT LVDS LCD Module Sunlight Readable Type1280x800 Pixels IPS TFT LVDS LCD Module Sunlight Readable Type

TFT Custom Solutions

1280x800 Pixels IPS TFT LVDS LCD Module Sunlight Readable Type

Cable Customization

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

1280x800 Pixels IPS TFT LVDS LCD Module Sunlight Readable Type

Touchscreen Add-on

Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.

1280x800 Pixels IPS TFT LVDS LCD Module Sunlight Readable Type

Interface Customization

Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.

1280x800 Pixels IPS TFT LVDS LCD Module Sunlight Readable Type

Cover Glass

Equip your display with a custom cut cover glass to improve durability. Choose from a variety of cover glass thicknesses and get optical bonding to protect against moisture and debris.
