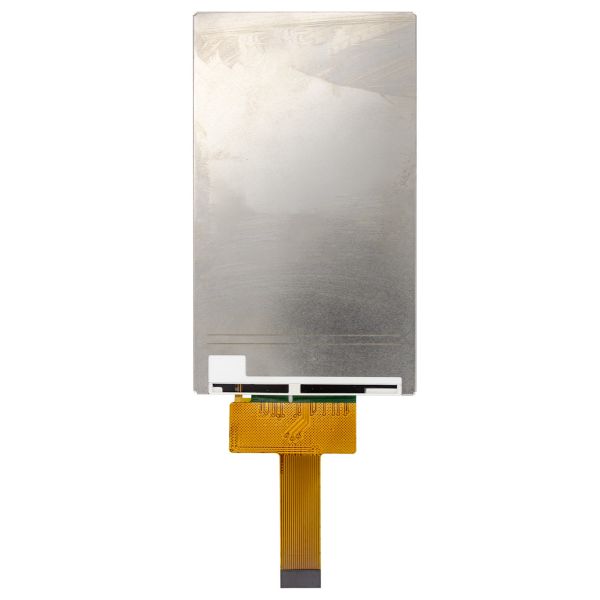

4.0 Inch 480x800 TFT LCD Display ST7701S IPS MIPI Interface Module
4.0 Inch 480x800 TFT LCD Display ST7701S IPS MIPI Interface Module
4.0 Inch 480x800 TFT LCD Display ST7701S IPS MIPI Interface Module
4.0 Inch 480x800 TFT LCD Display ST7701S IPS MIPI Interface Module
4.0 Inch 480x800 TFT LCD Display ST7701S IPS MIPI Interface Module
4.0 Inch 480x800 TFT LCD Display ST7701S IPS MIPI Interface Module
4.0 Inch 480x800 TFT LCD Display ST7701S IPS MIPI Interface Module
4.0 Inch 480x800 TFT LCD Display ST7701S IPS MIPI Interface Module
Specifications
Brand Name :
HOTHMI
Model Number :
TFT-H040A6W VIST4N20
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Display Format :
480x800 Pixels
Outline L x W x H :
57.14x96.85x2.1mm
Active Area L x W :
51.84x86.4mm
Luminance :
400cd/m2
Interface :
MIPI
Controller Type :
ST7701S
Operating Temperature :
-20°C ~ 70°C
Description

4.0 Inch 480x800 TFT LCD Display ST7701S IPS MIPI Interface Module

4.0 inch 480x800 IPS MIPI TFT Module /TFT-H040A6W VIST4N20

TFT-H040A6WVIST4N20 | 4.0" IPS LCD | 480x800px Screen | No Touchscreen

TFT-H040A6WVIST4N20 | 4.0" IPS LCD | 480x800px Screen | No Touchscreen | TFT-H040A6WVIST4N20
This 4.0" display is a 480x800 resolution IPS TFT. The LCD screen includes IPS technology which delivers enhanced color reproduction, better image consistency, sunlight readable capabilities with high brightness backlight, and boasts superior optical characteristics at any angle. This 24-bit true color Liquid Crystal Display also includes better FPC design with EMI shielding on the cable. It also has a built-in ST7701S IC driver and offers the same mechanical footprint and pinout as the TN display. This TFT is RoHS compliant

General Feature

Item

Standard Value

Unit

Display Size

 4.0

Inch

Number of Pixels

 480(H)*3(RGB)* 800(V)

dots

Active Area

 51.84x86.4mm

mm

Outline Dimension

57.14x96.85x2.1mm

mm

Viewing Direction

FULL O'clock

 -

Interface

MIPI

-

Driver IC

ST7701S

 -

Driver Condition

 VCI=2.8V(Typ)

V

Backlight

-

 -

Touch Panel

 WHITOUT TOUCH

CTP Driver IC

 - -

Driver Condition

 VDD=2.8V

V

TFT Operation AT

 -20 ～ +70

℃

TFT Storage AT

 -30 ～ +85

℃

TFT Pin Description

Pin NO.

Symbol

Description
1 NC Not Connect
2 LEDK LED Cathode
3 NC Not Connect
4 LEDA LED Anode
5 NC Not Connect
6 VCI Digital Power
7 IOVCC IO Supply Voltage
8 NC Not Connect
9 RESX Global Reset Signal. Active Low.
10 GND Ground
11 D1P
12 D1N MIPI-DSI data Lane 1 negative-end input/output pin.
13 GND Ground
14 DCKP MIPI-DSI clock Lane positive-end input pin.
15 DCKN MIPI-DSI clock Lane negative-end input pin.
16 GND Ground
17 D0P
18 D0N MIPI-DSI data Lane 0 negative-end input/output pin.
19~20 GND Ground

All Products

Reliability Testing Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration.
Glass Cleanliness Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material.
Bezel Appearance Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.
PCB Appearance PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.
Soldering Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.
Consistency Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units.
Product Integrity Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions.
Glass Color While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed.
ESD Protection & Safety All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices.

Search keyword: tft 4.0, tft 4.0", 4.0 tft lcd, 4.0" tft lcd, 4.0 inch tft lcd, tft lcd 4.0, 4.0 tft display, 4.0" tft display,4.0 inch tft display, tft display 4.0, tft display 4.0"

4.0 Inch 480x800 TFT LCD Display ST7701S IPS MIPI Interface Module4.0 Inch 480x800 TFT LCD Display ST7701S IPS MIPI Interface Module4.0 Inch 480x800 TFT LCD Display ST7701S IPS MIPI Interface Module4.0 Inch 480x800 TFT LCD Display ST7701S IPS MIPI Interface Module4.0 Inch 480x800 TFT LCD Display ST7701S IPS MIPI Interface Module4.0 Inch 480x800 TFT LCD Display ST7701S IPS MIPI Interface Module4.0 Inch 480x800 TFT LCD Display ST7701S IPS MIPI Interface Module4.0 Inch 480x800 TFT LCD Display ST7701S IPS MIPI Interface Module4.0 Inch 480x800 TFT LCD Display ST7701S IPS MIPI Interface Module

TFT Custom Solutions

4.0 Inch 480x800 TFT LCD Display ST7701S IPS MIPI Interface Module

Cable Customization

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

4.0 Inch 480x800 TFT LCD Display ST7701S IPS MIPI Interface Module

Touchscreen Add-on

Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.

4.0 Inch 480x800 TFT LCD Display ST7701S IPS MIPI Interface Module

Interface Customization

Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.

4.0 Inch 480x800 TFT LCD Display ST7701S IPS MIPI Interface Module

Cover Glass

Equip your display with a custom cut cover glass to improve durability. Choose from a variety of cover glass thicknesses and get optical bonding to protect against moisture and debris.
