128X64 SPI ST7567 FSTN Graphic LCD Module Wide Temperature For Instrumentation
128X64 SPI ST7567 FSTN Graphic LCD Module Wide Temperature For Instrumentation
128X64 SPI ST7567 FSTN Graphic LCD Module Wide Temperature For Instrumentation
128X64 SPI ST7567 FSTN Graphic LCD Module Wide Temperature For Instrumentation
128X64 SPI ST7567 FSTN Graphic LCD Module Wide Temperature For Instrumentation
128X64 SPI ST7567 FSTN Graphic LCD Module Wide Temperature For Instrumentation
128X64 SPI ST7567 FSTN Graphic LCD Module Wide Temperature For Instrumentation
128X64 SPI ST7567 FSTN Graphic LCD Module Wide Temperature For Instrumentation
Specifications
Brand Name :
HOTHMI
Model Number :
HTM-COG12864T01A-SPI
Place of Origin :
Dongguan, China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Product type :
Graphic LCD Module
Show contents :
128x64 dots

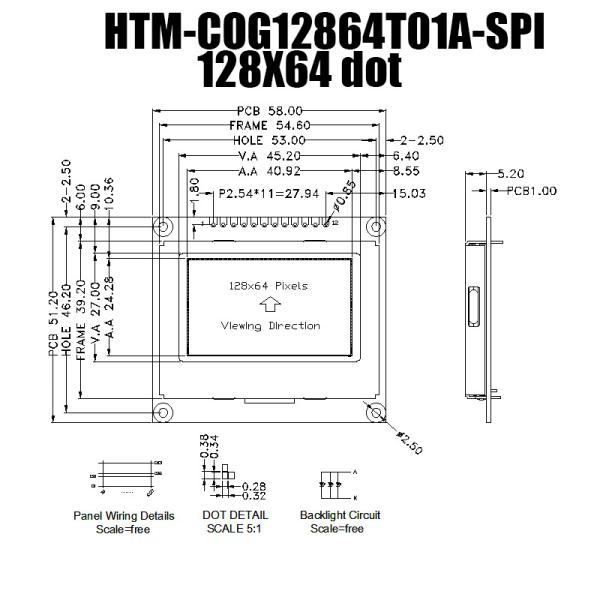

Outline size(mm) :
58x51.2x6.2mm
Size of View Window(mm) :
54.6x39.2mm
Display size(mm) :
45.2x27
Point spacing(mm) :
0.34x0.28
Visual angle :
6H
Connection PIN Number :
12 PIN
Working temperature :
-30~80 ℃
Power supply voltage :
3.3 (V)
Driver chip model :
ST7567
Interface method :
SPI
Special :
with Chinese character library
Description

128X64 SPI ST7567 FSTN Graphic LCD Module Wide Temperature For Instrumentation

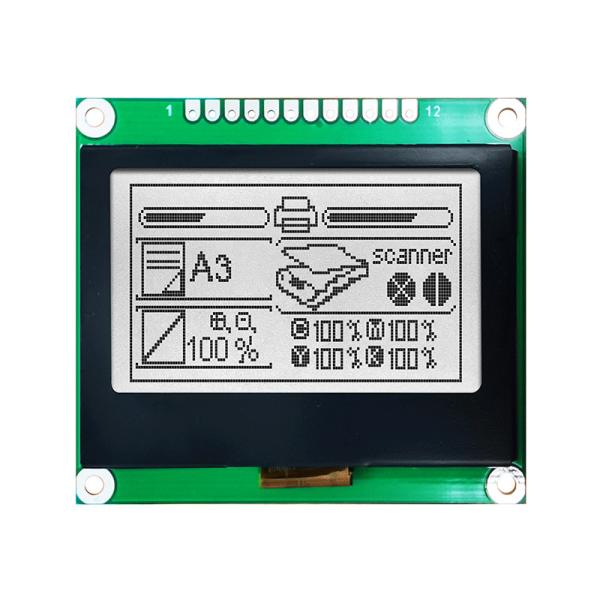

HTM-COG12864T01A-SPI | Monochrome Graphic Module | 128x64 Pixels | Transflective LCD | Side White Backlight | FSTN (+) Positive Display | Built-in Negative Voltage | IN-STOCK

Introducing the HTM-COG12864T01A-SPI, a reliable and high-quality monochrome graphic module perfect for instrumentation applications that require a wide temperature range. With its operating temperature range of -30℃~80℃, this module can perform in harsh environments and extreme conditions.

Featuring a 128x64 pixel transflective LCD display, this module offers clear and easy-to-read visuals with a 6 o'clock viewing angle. The FSTN (+) positive display and built-in negative voltage ensure excellent contrast and sharpness, making it suitable for use in both bright and dimly lit environments. The side white backlight provides additional visibility in low-light conditions.

The HTM-COG12864T01A-SPI is IN-STOCK, making it readily available for your instrumentation projects. Order now and take advantage of this reliable and high-performance LCD module to enhance your designs.

Product parameters

ITEM STANDARD VALUE UNIT
Number of dots 128x64 dots
Module dimension 58x51.2x6.2mm mm
View display area 54.6x39.2mm mm
Dot size 0.34x0.28 mm
Dot pitch 0.38x0.32 mm
Operating temp -30~80 ℃
Storage temp -40~80 ℃
Driving Method 1/ 128 DUTY,1/ 12 BIAS,VOP= 3.3V
Viewing direction 6H
Display mode
FSTN
Display type TRANSMISSIVE / NEGATIVE
Driver IC
ST7567
Backlight

WHITE
Product application industrial control, instrumentation

All Products

Bezel Appearance Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.

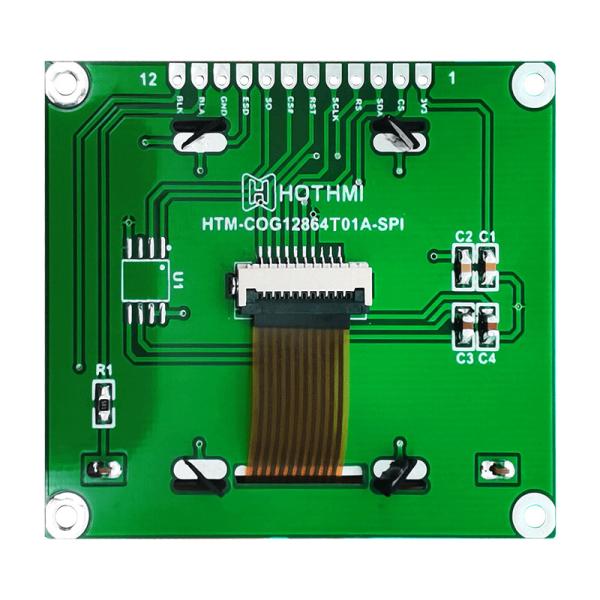

PCB Appearance PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.
Soldering Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.
Consistency Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units.

Search Keyword: lcd 128x64, lcd 128 x 64, 128x64 lcd, 128 x 64 lcd

LCD Custom Solutions

Cable Customization

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

128X64 SPI ST7567 FSTN Graphic LCD Module Wide Temperature For Instrumentation
128X64 SPI ST7567 FSTN Graphic LCD Module Wide Temperature For Instrumentation

Connector Customization

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

128X64 SPI ST7567 FSTN Graphic LCD Module Wide Temperature For Instrumentation

Interface Customization

Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.

128X64 SPI ST7567 FSTN Graphic LCD Module Wide Temperature For Instrumentation

PCB Modifications

Choose from a wide selection of changes including shape, size, pinout, and component layout of your PCB to make it a perfect fit for your application.

128X64 SPI ST7567 FSTN Graphic LCD Module Wide Temperature For Instrumentation
