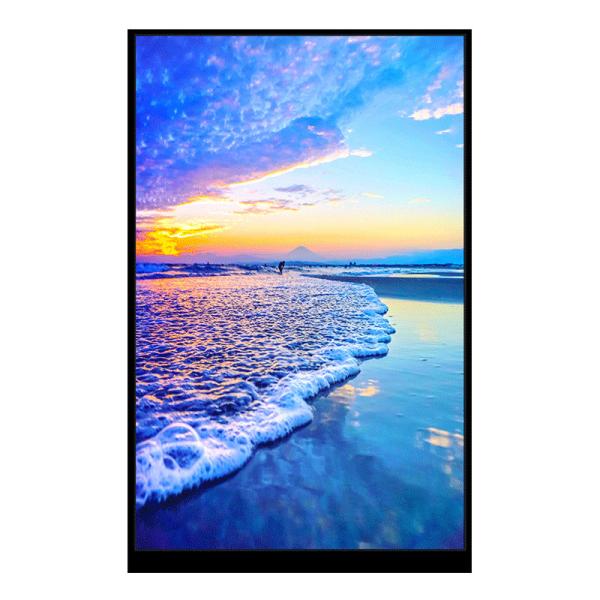

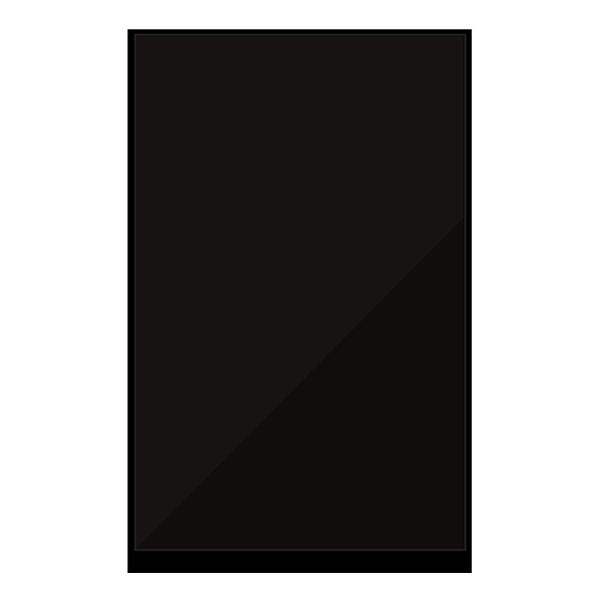

8.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 Technology TFT Module
8.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 Technology TFT Module
8.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 Technology TFT Module
8.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 Technology TFT Module
8.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 Technology TFT Module
8.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 Technology TFT Module
8.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 Technology TFT Module
8.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 Technology TFT Module
Specifications
Brand Name :
HOTHMI
Model Number :
TFT-H080B7HDINV6N30
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Display Format :
800x1280 Pixels

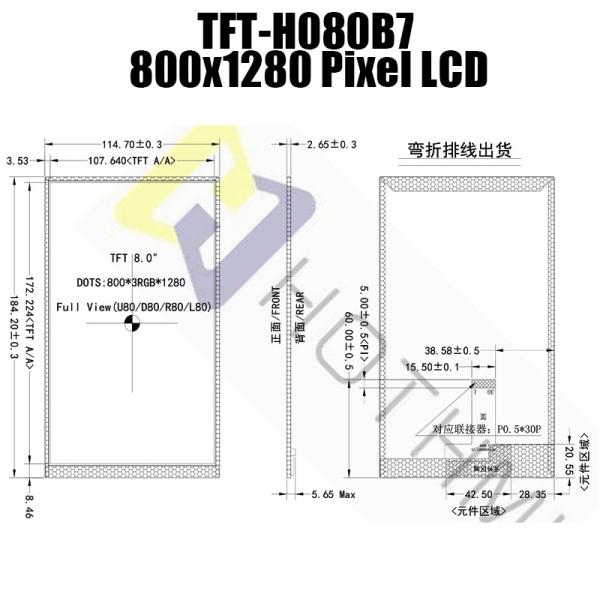

Outline L x W x H :
114.70x184.20x2.65
Active Area L x W :
107.64x172.224
Luminance :
600cd/m2
Interface :
MIPI 4L
Controller Type :
NV3051
Operating Temperature :
-20°C ~ 70°C
Description

8.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 Technology TFT Module

8.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 TFT Module Sunlight Readable

TFT-H080B7HDINV6N30 | 8.0" IPS LCD | 800x1280 Pixels | Sunlight Readable

Introducing the TFT-H080B7HDINV6N30 a 8.0 inch IPS LCD display that boasts a high resolution of 800x1280 pixels, delivering stunning visuals with vivid colors and crisp details. With its advanced technology, this display is also designed to be sunlight readable, ensuring optimal visibility even in bright outdoor environments.

Whether you're using it for gaming, streaming videos, or browsing the web, this TFT module is the perfect solution for your display needs. Its MIPI NV3051F1 technology ensures fast and efficient data transmission, while its IPS panel provides wide viewing angles and excellent color accuracy.

Upgrade your device with the TFT-H080B7HDINV6N30 and experience a new level of visual clarity and performance.

General information

Item Specification Unit
Outline Dimension 114.70x184.20x2.65mm mm
Display area 107.64x172.224mm mm
Number of Pixel 800(H) x 1280(V) pixels
Pixel pitch - mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
NTSC 70(Typ.) %
Surface treatment Antiglare, Hard-Coating (3H)
Weight - g
Back-light Single LED (Side-Light type)

Power

Consumption

 Logic System (White Pattern) NV3051 W
B/L System - W

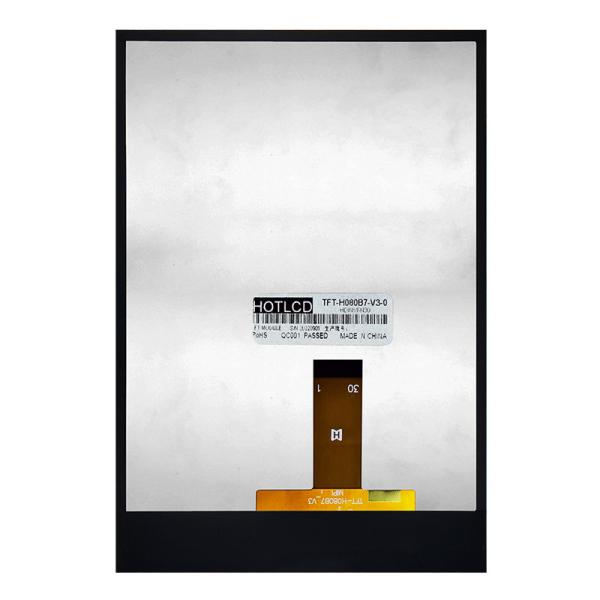

TFT Pin Description

Pin NO.

Symbol

Description
1 GND

Power supply ground
2 D2P

LVDS Positive data signal (+)
3 D2N

LVDS Negative data signal (-)
4 GND

Power supply ground
5 D1P

MIPI Positive data signal (+)
6 D1N

MIPI Negative data signal (-)
7 GND

Power supply ground
8 DCKP

MIPI Positive clock signal (+)
9 DCKN

MIPI Negative clock signal (-)
10 GND

Power supply ground
11 D0P

MIPI Positive data signal (+)
12 D0N

MIPI Negative data signal (-)
13 GND

Power supply ground
14 D3P

LVDS Positive data signal (+)
15 D3N

LVDS Negative data signal (-)
16 ~ 17 GND

Power supply ground
18 RESX

Reset pin
19 IOVCC

IO Supply Voltage
20 NC

Not connected
21 ~ 22 VCI

Power supply
23 NC

Not connected
24 ~ 26 LEDK

LED cathode
27 NC

Not connected
28 ~ 30 LEDA

LED anode

All Products

Reliability Testing Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration.
Glass Cleanliness Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material.
Bezel Appearance Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.
PCB Appearance PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.
Soldering Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.
Consistency Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units.
Product Integrity Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions.
Glass Color While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed.
ESD Protection & Safety All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices.

Search keyword: tft 8.0, tft 8.0", 8.0 tft lcd, 8.0" tft lcd, 8.0 inch tft lcd, tft lcd 8.0, 8.0 tft display, 8.0" tft display,8.0inch tft display, tft display 8.0, tft display 8.0"

8.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 Technology TFT Module8.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 Technology TFT Module8.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 Technology TFT Module8.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 Technology TFT Module8.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 Technology TFT Module8.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 Technology TFT Module8.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 Technology TFT Module8.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 Technology TFT Module8.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 Technology TFT Module

TFT Custom Solutions

8.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 Technology TFT Module

Cable Customization

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

8.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 Technology TFT Module

Touchscreen Add-on

Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.

8.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 Technology TFT Module

Interface Customization

Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.

8.0 Inch 800x1280 IPS LCD Display MIPI NV3051F1 Technology TFT Module

Cover Glass

Equip your display with a custom cut cover glass to improve durability. Choose from a variety of cover glass thicknesses and get optical bonding to protect against moisture and debris.
