Item

Specification

Unit

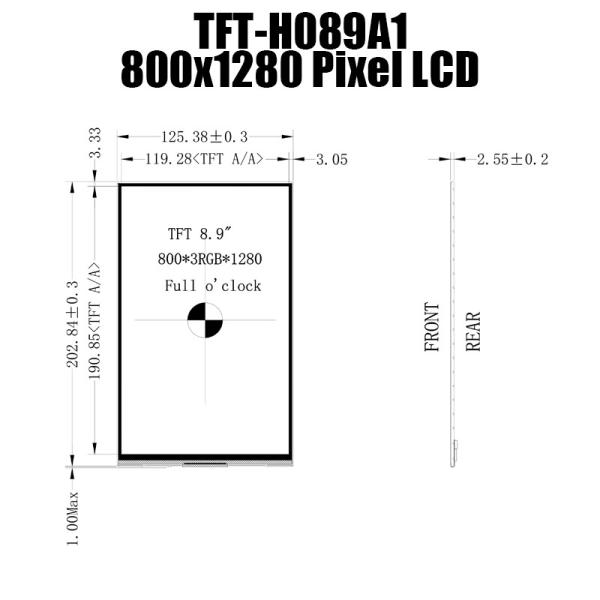

Outline Dimension

125.38x202.84x2.55mm

mm

Display area

119.28x190.85mm

mm

Number of Pixel

800(H) x 1280(V)

pixels

Pixel pitch

-

mm

Pixel arrangement

MIPI-4L

Display mode

Normally Black

NTSC

70(Typ.)

%

Surface treatment

Antiglare, Hard-Coating (3H)

Weight

-

g

Back-light

Single LED (Side-Light type)

Power

Consumption

Logic System (White Pattern)

JD9365D

W

B/L System

-

W
