11.6 Inch IPS 1920x1080 Wide Temperature TFT Display Panel For Industrial
11.6 Inch IPS 1920x1080 Wide Temperature TFT Display Panel For Industrial
11.6 Inch IPS 1920x1080 Wide Temperature TFT Display Panel For Industrial
11.6 Inch IPS 1920x1080 Wide Temperature TFT Display Panel For Industrial
11.6 Inch IPS 1920x1080 Wide Temperature TFT Display Panel For Industrial
11.6 Inch IPS 1920x1080 Wide Temperature TFT Display Panel For Industrial
Specifications
Brand Name :
HOTHMI
Model Number :
TFT-H116D01FHIWZ3N30
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Display content :
1920x1080 dots
Dimensions (mm) :
263.34x157.16
Field of view window size :
Full View
Backlight brightness :
350cd/m2
driver chip :
TBD
Interface :
EDP 2-Lane
Operating Temperature: :
-20°C~70 °C
Description

11.6 Inch IPS 1920x1080 Wide Temperature TFT Display Panel For Industrial

TFT-H116D01FHIWZ3N30 | 11.6" IPS TFT LCD Display | TFT LCD Display Manufacturer | 1920x1080 HD resolution | -20℃~70℃ | For industrial computer | Interface EDP 2-Lane | Wide Temperature

11.6-Inch IPS 1920x1080 Wide Temperature TFT Display Panel for Industrial Applications

Introducing the TFT-H116D01FHIWZ3N30, a high-performance 11.6-inch IPS TFT LCD display designed specifically for industrial applications. This versatile display offers the following standout features:

  • High-Definition Clarity: With a crisp 1920x1080 HD resolution, this display ensures sharp and detailed visuals, making it perfect for industrial data visualization.

  • Robust Temperature Range: Operating flawlessly in temperatures ranging from -20°C to 70°C, this display thrives in industrial environments with varying climate conditions.

  • Industrial-Grade Reliability: Engineered to meet the rigorous demands of industrial computing, it delivers exceptional durability and reliability, adhering to strict industrial standards.

  • EDP 2-Lane Interface: Equipped with a high-speed EDP 2-Lane interface, it guarantees swift data transfer and superior image quality.

The TFT-H116D01FHIWZ3N30 is the ideal choice for a wide range of industrial applications, from control systems to rugged computing solutions. As a leading TFT LCD display manufacturer, we provide dependable products and outstanding technical support. Elevate your industrial computing experience with the TFT-H116D01FHIWZ3N30, delivering impeccable visuals in even the harshest environments.

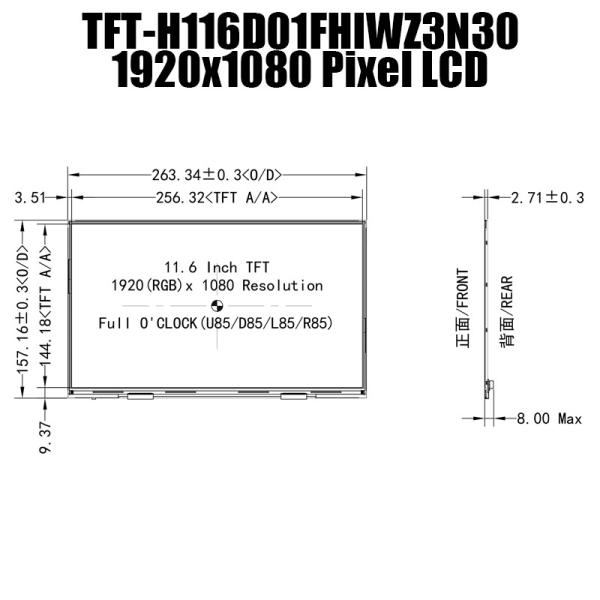

General Feature

Item Standard Value Unit
Display Size 11.6 Inch
Number of Pixels 1920(H)* 3(RGB)* (V) dots
Active Area
256.32x144.18
 mm
Outline Dimension
263.34x157.16
 mm
Viewing Direction Full View -
TFT Interface EDP 2-Lane -
TFT Driver IC TBD -
TFT Driver Condition VCI=3.3V(Typ) V
Backlight-1 White LED/8 PCS/4 LEDs serial 2 ways parallel -
Touch Panel - -
CTP Driver IC - -
CTP Driver Condition VDD=3.3~12V(Typ) V
Operation Temperature -20 ～ 70 ℃
Storage Temperature -30 ～ 80 ℃


All Products

Reliability Testing Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration.
Glass Cleanliness Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material.
Bezel Appearance Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.
PCB Appearance PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.
Glass Color While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed.
ESD Protection & Safety All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices.

Search keyword: tft 11.6, tft 11.6", 11.6 tft lcd, 11.6" tft 11.6, 11.6 inch tft lcd, tft lcd 11.6, 11.6 tft display, 11.6" tft display, 11.6 inch tft display, tft display 11.6, tft display 11.6", 11.6 lcd module


11.6 Inch IPS 1920x1080 Wide Temperature TFT Display Panel For Industrial11.6 Inch IPS 1920x1080 Wide Temperature TFT Display Panel For Industrial11.6 Inch IPS 1920x1080 Wide Temperature TFT Display Panel For Industrial11.6 Inch IPS 1920x1080 Wide Temperature TFT Display Panel For Industrial11.6 Inch IPS 1920x1080 Wide Temperature TFT Display Panel For Industrial11.6 Inch IPS 1920x1080 Wide Temperature TFT Display Panel For Industrial11.6 Inch IPS 1920x1080 Wide Temperature TFT Display Panel For Industrial11.6 Inch IPS 1920x1080 Wide Temperature TFT Display Panel For Industrial11.6 Inch IPS 1920x1080 Wide Temperature TFT Display Panel For Industrial11.6 Inch IPS 1920x1080 Wide Temperature TFT Display Panel For Industrial


11.6 Inch IPS 1920x1080 Wide Temperature TFT Display Panel For Industrial
TFT-H116D01FHIWZ3N30_V0-1.pdf
