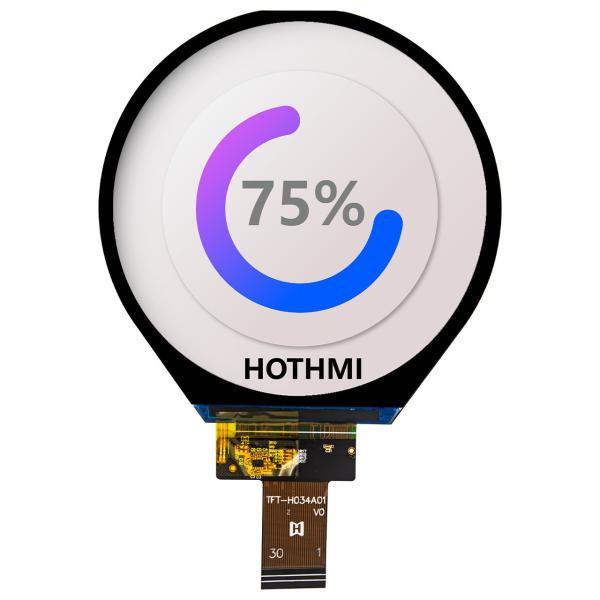

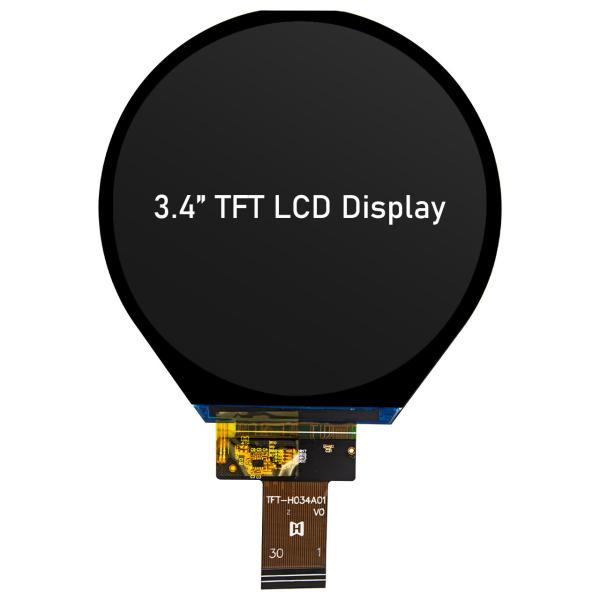

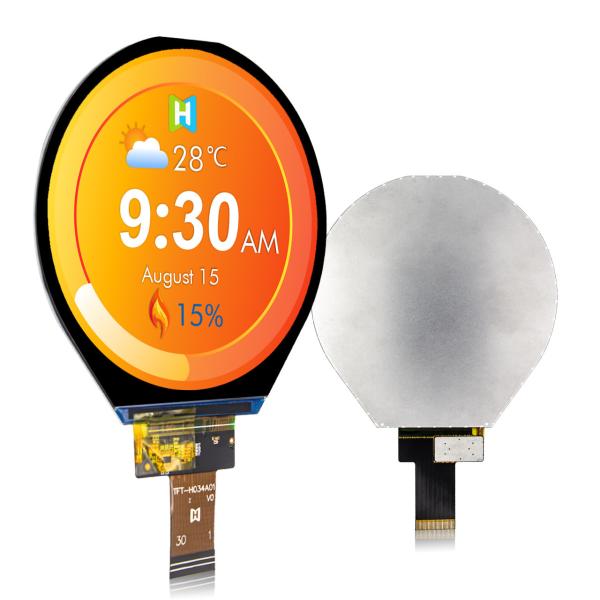

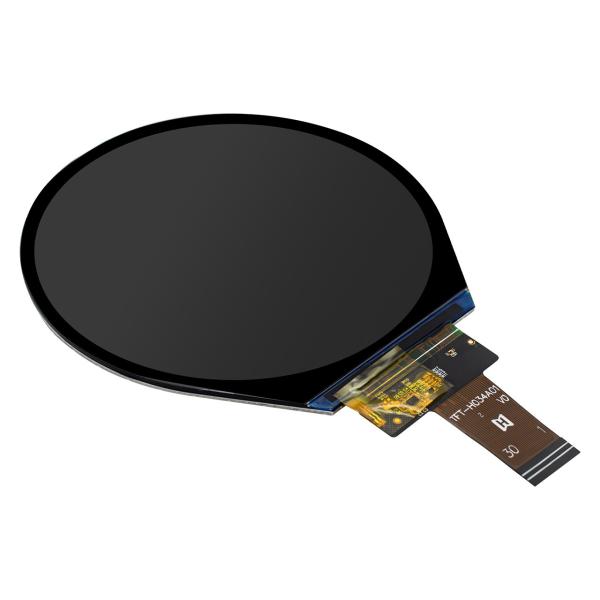

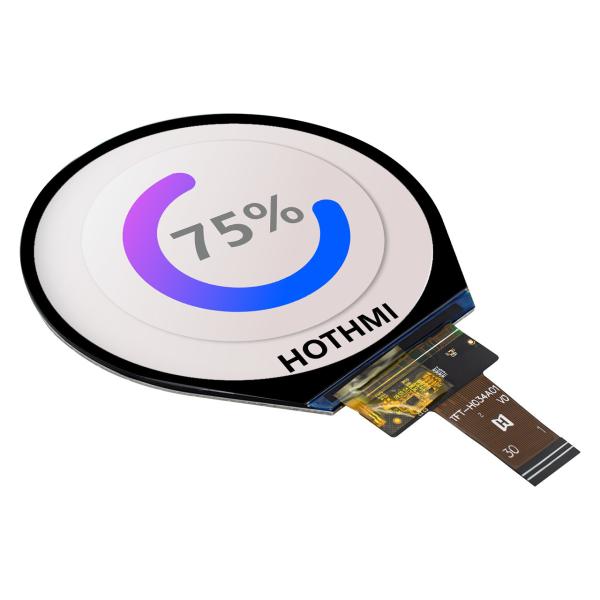

3.4 Inch IPS 800x800 Round Screen TFT Display Panel MIPI For Industrial Control
3.4 Inch IPS 800x800 Round Screen TFT Display Panel MIPI For Industrial Control
3.4 Inch IPS 800x800 Round Screen TFT Display Panel MIPI For Industrial Control
3.4 Inch IPS 800x800 Round Screen TFT Display Panel MIPI For Industrial Control
3.4 Inch IPS 800x800 Round Screen TFT Display Panel MIPI For Industrial Control
3.4 Inch IPS 800x800 Round Screen TFT Display Panel MIPI For Industrial Control
3.4 Inch IPS 800x800 Round Screen TFT Display Panel MIPI For Industrial Control
3.4 Inch IPS 800x800 Round Screen TFT Display Panel MIPI For Industrial Control
3.4 Inch IPS 800x800 Round Screen TFT Display Panel MIPI For Industrial Control
3.4 Inch IPS 800x800 Round Screen TFT Display Panel MIPI For Industrial Control
Specifications
Brand Name :
HOTHMI
Model Number :
TFT-H034A01ZJINV5N30
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Display content :
800x800 dots
Dimensions (mm) :
94.9x96.95
Field of view window size :
Full View
Backlight brightness :
550cd/m2
Interface :
MIPI 4L
Operating Temperature: :
-30°C~80 °C
Description

3.4 Inch IPS 800x800 Round Screen TFT Display Panel MIPI For Industrial Control

TFT-H034A01ZJINV5N30 | 3.4" IPS TFT LCD Display | TFT LCD Display Manufacturer | 800x800 HD resolution | -30℃~80℃ | For industrial computer | Interface MIPI | Wide Temperature | Readable Sunlight | round screen

3.4 Inch IPS 800x800 Round Screen TFT Display Panel MIPI For Industrial Control

TFT-H034A01ZJINV5N30 | 3.4" IPS TFT LCD Display | TFT LCD Display Manufacturer | 800x800 HD resolution | -30℃~80℃ | For industrial computer | Interface MIPI | Wide Temperature | Readable Sunlight | round screen | Edit Product Description Category"

Product description categories typically refer to the classification of product descriptions or promotional content to better target specific audiences and markets. Based on the information provided, this is a TFT LCD display panel product with the following features:

  1. Size: 3.4 inches
  2. Screen type: IPS
  3. Resolution: 800x800 HD
  4. Operating temperature range: -30°C to 80°C
  5. Application: Industrial control
  6. Interface: MIPI
  7. Wide temperature range
  8. Sunlight readability
  9. Round screen design

Based on these features, you can categorize the product description as follows:

  1. Screen Specifications: Describe the screen's size, type, and resolution to highlight its visual characteristics and applicable fields.

  2. Temperature Range: Emphasize that the display is suitable for a wide temperature range, ensuring it functions properly in harsh environments.

  3. Industrial Application: Highlight the display's suitability for industrial control applications, which may include industrial automation, robot control, instrumentation, etc.

  4. Interface Type: Provide information about the MIPI interface, which is crucial information for potential buyers, especially for applications that require integration with other devices.

  5. Sunlight Readability: Highlight the screen's ability to remain readable in bright sunlight, which is essential for outdoor or direct sunlight environments.

  6. Round Screen Design: Emphasize the unique feature of the round design, setting it apart from traditional rectangular screens, which may be appealing for specific applications.

Depending on your needs, you can create different product description categories based on these features to better attract potential customers, such as:

  • High-Temperature Industrial Display: Emphasize its wide temperature range and industrial application.
  • MIPI Interface Round Display: Highlight its MIPI interface and round design to attract customers in need of these features.
  • Industrial Control Application: Stress its suitability for industrial control with features like sunlight readability and a wide temperature range.

You can choose the most suitable category based on your target market and customer requirements to effectively communicate the product's value and features.




General Feature

Item Standard Value Unit
Display Size 3.4 Inch
Number of Pixels 800(H)* 3(RGB)*800 (V) dots
Active Area 88.4x88.4 mm
Outline Dimension 94.9x96.95 mm
Viewing Direction Full View -
TFT Interface MIPI -
TFT Driver IC
NV3051F
 -
TFT Driver Condition VCI=3.3V(Typ) V
Backlight-1 White LED/8 PCS/4 LEDs serial 2 ways parallel -
Touch Panel - -
CTP Driver IC - -
CTP Driver Condition VDD=3.3~12V(Typ) V
Operation Temperature -30 ～ 80 ℃
Storage Temperature -30 ～ 80 ℃


All Products

Reliability Testing Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration.
Glass Cleanliness Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material.
Bezel Appearance Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.
PCB Appearance PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.
Glass Color While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed.
ESD Protection & Safety All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices.

Search keyword: tft 3.4, tft 3.4", 3.4 tft lcd, 3.4" tft 3.4, 3.4 inch tft lcd, tft lcd 3.4, 3.4 tft display, 3.4" tft display, 3.4 inch tft display, tft display 3.4, tft display 3.4", 3.4 lcd module

3.4 Inch IPS 800x800 Round Screen TFT Display Panel MIPI For Industrial Control


3.4 Inch IPS 800x800 Round Screen TFT Display Panel MIPI For Industrial Control3.4 Inch IPS 800x800 Round Screen TFT Display Panel MIPI For Industrial Control3.4 Inch IPS 800x800 Round Screen TFT Display Panel MIPI For Industrial Control3.4 Inch IPS 800x800 Round Screen TFT Display Panel MIPI For Industrial Control3.4 Inch IPS 800x800 Round Screen TFT Display Panel MIPI For Industrial Control3.4 Inch IPS 800x800 Round Screen TFT Display Panel MIPI For Industrial Control3.4 Inch IPS 800x800 Round Screen TFT Display Panel MIPI For Industrial Control3.4 Inch IPS 800x800 Round Screen TFT Display Panel MIPI For Industrial Control3.4 Inch IPS 800x800 Round Screen TFT Display Panel MIPI For Industrial Control


3.4 Inch IPS 800x800 Round Screen TFT Display Panel MIPI For Industrial Control
TFT-H034A01ZJINV5N30_V0-0.pdf
