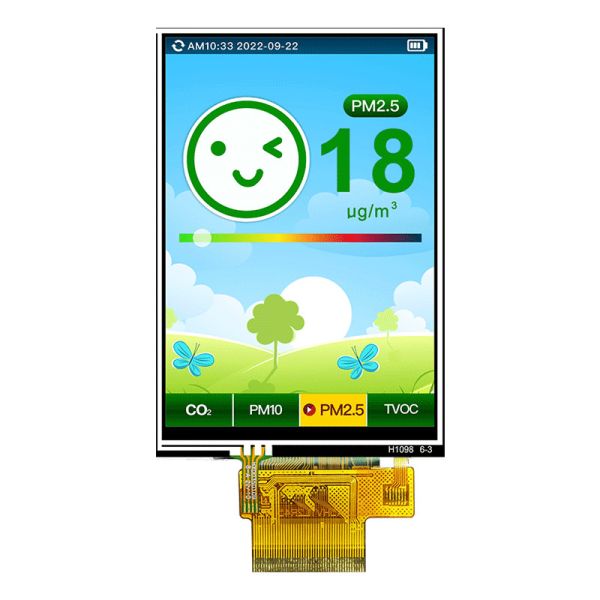

3.5 inch 320480 Color TFT LCD Display Module/320x240 dots/TFT-H035A5HVTST3N45

Product parameters


Display Size - 3.5"
Perspective - 12 o'clock
Backlight brightness - 350cd/m2
Connection method PIN number - 45PIN
Interface mode - MCU8/16 parallel port
Special Instructions - Optional with Resistive Touch
Working temperature - -20~70℃
Supply Voltage - 2.8V
Driver IC Model - ST7796S

General Feature:

Item Standard Value Unit
Display Size 3.5” --
Number of Pixels 320(H)x3(RGB)*480(V) --
Active Area 48.96(H) *73.44(V) mm
LCM Outline Dimension 55.66(H) ×85.04(V)× 2.40(D) mm
Viewing Direction 12 O’Clock -
LCM Interface MCU 8/16 Bit -
LCM Driver IC ST7796S -
LCM Driver Voltage VCI=2.8V V
Backlight White LED -
Touch Panel Without TP -
CTP Driver IC - - - -
CTP Driver Voltage VDD=2.8V V
CTP I/O Digital Voltage - - - V
Operation Temperature -20~70 ℃
Storage Temperature -30~80 ℃

Pin Description

Pin NO. Symbol Description
1 LED_A LED Anode
2-7 LED_K1-K6 LED Cathode
8 GND Ground
9 NC No Connect
10 VCI Power supply for analog and booster circuits.
11 IOVCC Power supply for I/O system.
12 CS Chip selection pin. Low-active.
13 WR Write enable in MCU parallel interface
14 RS Display data/command selection (RS) pin in MCU interface
15 RD Read enable in 8080 MCU parallel IF. Low-active.
16 RESET LCM Reset Pin.
17,18 NC No Connect
19-34 DB15-DB0 Data Bus.If not used, please fix this pin at GND.
35,36 NC No Connect
37 TE Tearing effect output.If not used, leave this pin open
38 NC No Connect
39 GND Ground
40 RTP_XL Resistive touch screen control pins
41 RTP_YD Resistive touch screen control pins
42 RTP_XR Resistive touch screen control pins
43 RTP_YU Resistive touch screen control pins
44 GND Ground
45 NC No Connect
