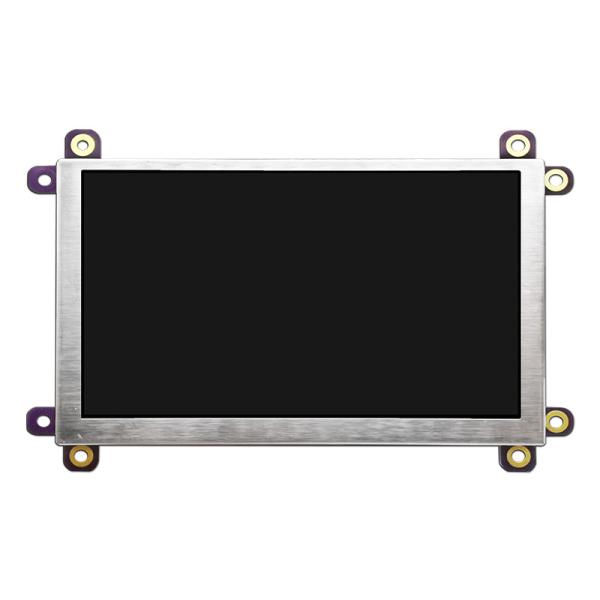

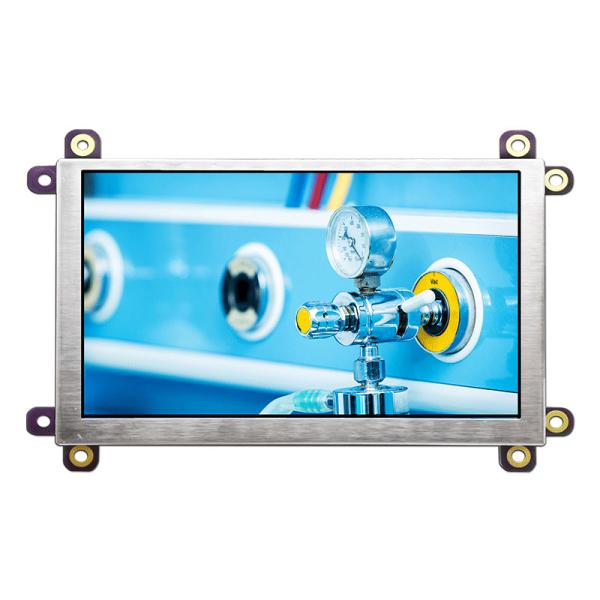

Industrial VGA HI LCD Module , 600cd/M2 5 Inch LCD Screen HI TFT-050T61SVHDVNSDC
Industrial VGA HI LCD Module , 600cd/M2 5 Inch LCD Screen HI TFT-050T61SVHDVNSDC
Industrial VGA HI LCD Module , 600cd/M2 5 Inch LCD Screen HI TFT-050T61SVHDVNSDC
Industrial VGA HI LCD Module , 600cd/M2 5 Inch LCD Screen HI TFT-050T61SVHDVNSDC
Industrial VGA HI LCD Module , 600cd/M2 5 Inch LCD Screen HI TFT-050T61SVHDVNSDC
Industrial VGA HI LCD Module , 600cd/M2 5 Inch LCD Screen HI TFT-050T61SVHDVNSDC
Specifications
Brand Name :
HOTHMI
Model Number :
TFT-050T61SVHDVNSDC
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Product Type :
TFT LCM
Display content :
800x480 dots
Dimensions (mm) :
140.0x95.0x15.0
Viewport Window Size :
5.0 inch
Effective size (mm) :
108.0x64.8
optional drive :
free USB touch screen
Description

5.0 Inch 800x480 Dots For HI Signal TFT Display Modules/TFT-050T61SVHDVNSDC

Product parameters


Display Size - 5.0 inch
Product Application - Industrial Display
Perspective - Full View
Backlight type or brightness - 600cd/m2
Interface - HI,VGA
Working temperature - (-30~80℃)
Supply Voltage - 5.0V

Product introduction

- 5.0 inch standard display, 800×480 HD resolution

- 600 cd/m² high brightness, 30000 hours long life backlight. Special requirements can be replaced 50000 hours long life backlight

- Support backlight on/off separate control

- Support OSD control buttons to help users adjust the LCD screen to the best state for different application environments,

OSD menu can be switched in Chinese and English.

- Support VGA and HI 1.4a signal input (choose one when using, cannot

identify at the same time)

- Supports multi-point USB interface drive-free capacitive touch screen

- Support panel embedded installation, only need 4 screws to fix the PCB,

easy installation and maintenance

-Compatible with mainstream operating systems and embedded operating systems such as DOS/Windows98/2000/XP/win7/win8/win10/Embedded/Linux.

Module parameters

Item

Standard Value

 Unit
Interface HI 1.4a / VGA -
Power Input DC 5V/1A 以上 -

Module brightness

 Without TP 600

cd/m2

Product weight

 Without TP 90 + 5%

g

LCD parameters

Item

Standard Value

 Unit
Display Size 5.0 Inch
Number of Pixels 800(H)*3(RGB)* 480(V) dots
Active Area 95.04(H)* 53.86(V) mm

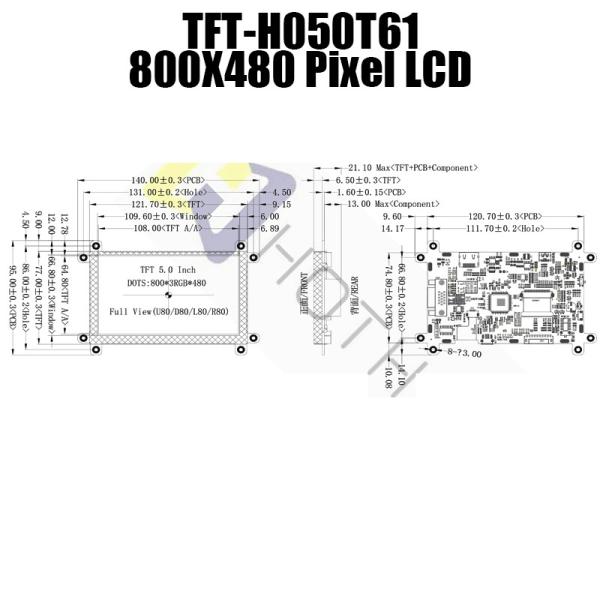

Outline Dimension

140.00(H) * 95.00(V) * 21.10(D) <Without TP>

 mm
Contrast Ratio 1000:1 -
Response Time 30 (Tr + Tf) msec
Viewing Direction Full O'clock -
Maximum color 16.7 M Color
USB Touch Panel Without TP -
Operation Temperature -20 ～ 70

℃
Storage Temperature -30 ～ 80

℃

Search keyword: 5 inch tft, tft 5, tft 5", 5 tft lcd, 5" tft lcd, 5 inch tft lcd, tft lcd 5, 5 tft display, 5" tft display, 5 inch tft display, tft display 5, tft display 5", 5.0 tft lcd,5"tft

Industrial VGA HI LCD Module , 600cd/M2 5 Inch LCD Screen HI TFT-050T61SVHDVNSDCIndustrial VGA HI LCD Module , 600cd/M2 5 Inch LCD Screen HI TFT-050T61SVHDVNSDCIndustrial VGA HI LCD Module , 600cd/M2 5 Inch LCD Screen HI TFT-050T61SVHDVNSDCIndustrial VGA HI LCD Module , 600cd/M2 5 Inch LCD Screen HI TFT-050T61SVHDVNSDCIndustrial VGA HI LCD Module , 600cd/M2 5 Inch LCD Screen HI TFT-050T61SVHDVNSDCIndustrial VGA HI LCD Module , 600cd/M2 5 Inch LCD Screen HI TFT-050T61SVHDVNSDCIndustrial VGA HI LCD Module , 600cd/M2 5 Inch LCD Screen HI TFT-050T61SVHDVNSDCIndustrial VGA HI LCD Module , 600cd/M2 5 Inch LCD Screen HI TFT-050T61SVHDVNSDC
