5.5 Inch 720x1280 IPS TFT LCD High Brightness Display IC ILI9881
5.5 Inch 720x1280 IPS TFT LCD High Brightness Display IC ILI9881
5.5 Inch 720x1280 IPS TFT LCD High Brightness Display IC ILI9881
5.5 Inch 720x1280 IPS TFT LCD High Brightness Display IC ILI9881
5.5 Inch 720x1280 IPS TFT LCD High Brightness Display IC ILI9881
5.5 Inch 720x1280 IPS TFT LCD High Brightness Display IC ILI9881
5.5 Inch 720x1280 IPS TFT LCD High Brightness Display IC ILI9881
5.5 Inch 720x1280 IPS TFT LCD High Brightness Display IC ILI9881
Specifications
Brand Name :
HOTHMI
Model Number :
TFT-H055A1HDIIL3N30
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Product Type :
TFT Display
Display Content :
720x1280 dots
Dimensions (mm) :
71.04x129.56
Viewport Window Size :
5.5 inch
Effective size (mm) :
67.932x120.768
Backlight Brightness :
350 cd/m2
Description

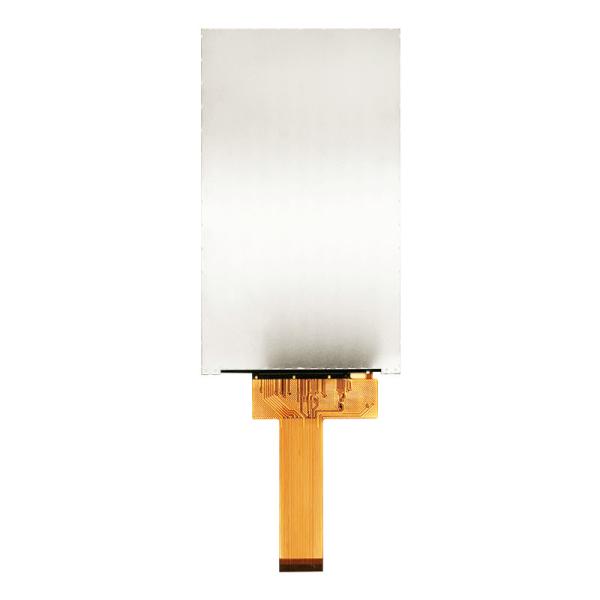

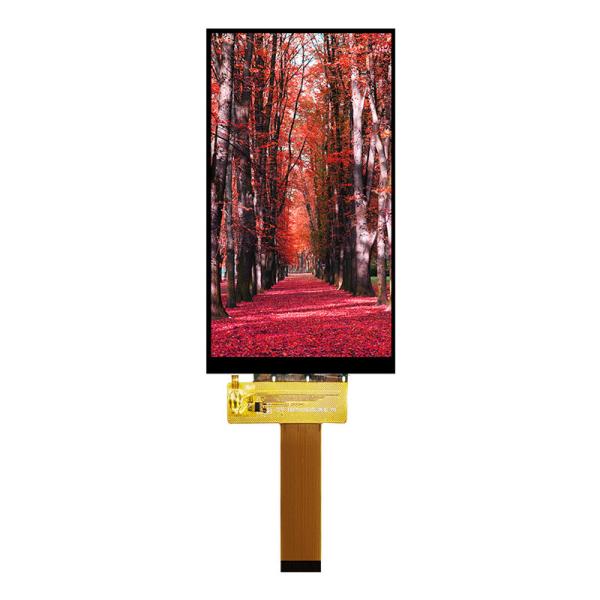

5.5 Inch 720x1280 Dots High Brightness TFT Display/IC ILI9881/TFT-H055A1HDIIL3N30

Product parameters


Display Size - 5.5 inch
Product Application - Handheld Devices
Perspective - Full Perspective
Connection method PIN number - 30Pin
Interface - MIPI 4L
Special instructions - high brightness, visible in sunlight
Working temperature - (-20~70℃)
Supply Voltage - 3.3V
Driver IC Model - ILI9881

General Feature

Item Standard Value Unit
Display Size 5.5” --
Number of Pixels 720(H)x3(RGB)*1280(V) --
Active Area 67.932(H) *120.768(V) mm

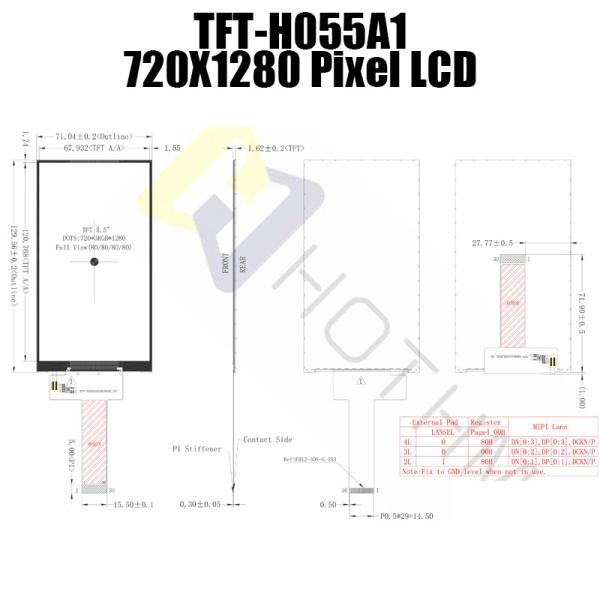

Outline Dimension 71.04(H) ×129.56(V)× 1.62(D) mm
Viewing Direction FULL O'clock -
Interface MIPI Video Mode - 2/3/4L -
LCM Driver IC ILI9881D -
LCM Driver Condition IOVCC=1.8V,VCI=2.8V (Typ) V
Backlight White LED -
Touch Panel Without Touch Panel -
CTP Driver IC - - -
CTP Driver Condition - - -
Operation Temperature -20~70 ℃
Storage Temperature -30~80 ℃
Pixels Per Inch 267 -

Pin Description

Pin NO. Symbol Description
1 LED_A LED Anode
2 LED_K LED Cathode
3 GND Ground
4 GND Ground
5 MTP No Connect
6 NC No Connect
7 VCI Analog Power
8 IOVCC Power supply for I/O system.
9 NC No Connect
10 LANSEL MIPI DSI Lane number selection pin.
11 RESX Reset Pin
12 TE No Connect
13 GND Ground
14 GND Ground
15 D3P Positive polarity of low voltage differential data signal.
16 D3N Negative polarity of low voltage differential data signal.
17 GND Ground
18 D2P Positive polarity of low voltage differential data signal.
19 D2N Negative polarity of low voltage differential data signal.
20 GND Ground
21 DCLKP Positive polarity of low voltage differential clock signal.
22 DCLKN Negative polarity of low voltage differential clock signal.
23 GND Ground
24 D1P Positive polarity of low voltage differential data signal.
25 D1N Negative polarity of low voltage differential data signal.
26 GND Ground
27 D0P Positive polarity of low voltage differential data signal.
28 D0N Negative polarity of low voltage differential data signal.
29 GND Ground
30 GND Ground

Product Description

TFT-H055A1HDIIL3N30 is a 5.5-inch 720 x1280 full-color HD high-definition TFT LCD module. This TFT-LCD supports MIPI DSI interface and adopts wide viewing angle IPS (In-plane Switching) panel technology. The viewing angle range is left: 80 / right: 80 / top: 80 / bottom: 80 degrees. Vivid, high-quality picture with saturated naturalness. This model has an operating temperature of -20°C to +70°C and a storage temperature of –30°C to +80°C.

The size of this TFT module is 67.932x120.768mm, the size of the Active area (AA area) is 71.04x129.56 mm, the module has a built-in driver IC ILI9881 (driver IC), and the working power supply voltage: 3.3V. The TFT-H055A1HDIIL3N30 module is in the straight screen mode, if you need to use the horizontal screen mode, please contact us, and we will provide relevant technical support services.
