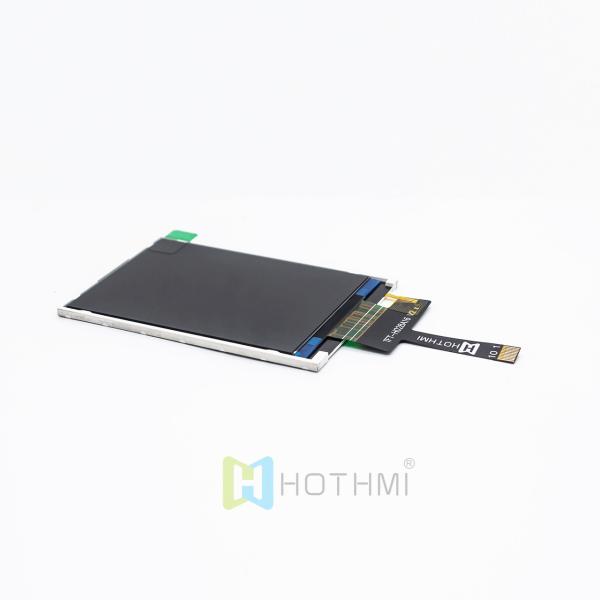

2.8 Inch ST7789V SPI TFT Module , Sunlight Readable TFT Display IPS
2.8 Inch ST7789V SPI TFT Module , Sunlight Readable TFT Display IPS
2.8 Inch ST7789V SPI TFT Module , Sunlight Readable TFT Display IPS
2.8 Inch ST7789V SPI TFT Module , Sunlight Readable TFT Display IPS
2.8 Inch ST7789V SPI TFT Module , Sunlight Readable TFT Display IPS
2.8 Inch ST7789V SPI TFT Module , Sunlight Readable TFT Display IPS
2.8 Inch ST7789V SPI TFT Module , Sunlight Readable TFT Display IPS
2.8 Inch ST7789V SPI TFT Module , Sunlight Readable TFT Display IPS
Specifications
Brand Name :
HOTHMI
Model Number :
TFT-H028A16QVIST5N10
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Display Size :
2.8 inch
Number of Pixels :
240(H)*3(RGB)* 320(V)
Active Area :
43.2X57.6 mm
Outline Dimension :
50X69.2X2.3 mm
TFT Driver Condition :
VCI=3.3V(Typ)
Backlight-1 :
White LED/10 PCS/5 LEDs in series, 2 in parallel
Description

2.8 Inch 240x320 Dots SPI TFT Moudle ST7789V Sunlight Readable/TFT-H028A16QVIST5N10

General Feature:

Item Standard Value Unit
Display Size 2.8 Inch
Number of Pixels 240(H)*3(RGB)* 320(V) dots
Active Area 43.2X57.6 mm
Outline Dimension 50X69.2X2.3 mm
Viewing Direction Full O'clock -
TFT Interface SPI -
TFT Driver IC ST7789 -
TFT Driver Condition VCI=3.3V(Typ) V
Backlight-1 White LED/10 PCS/5 LEDs in series, 2 in parallel -
Touch Panel Without TP -
CTP Driver IC - -
CTP Driver Condition - V
Operation Temperature -30 ～ 80 ℃
Storage Temperature -30 ～ 80 ℃
Backlight brightness 500 cd/m2

DESCRIPTION

H028A16QVIST5N10 is a 2.8 inch TFT display module, made of resolution 240x320 pixels. This micro LCD display module is built in with ST7789 IC; it supports serial 3-line/4-line SPI interface. This model is having module dimension of 50X69.2X2.3 mm and Active area size of 43.2X57.6 mm; it's supply voltage range from for analog is 2.5V to 3.7V (typical 3.3V).

Search keyword: tft 2.8, tft 2.8", 2.8 tft lcd, 2.8" tft lcd, 2.8 inch tft lcd, tft lcd 2.8, 2.8 tft display, 2.8" tft display, 2.8 inch tft display, tft display 2.8, tft display 2.8", 2.8 lcd

2.8 Inch ST7789V SPI TFT Module , Sunlight Readable TFT Display IPS2.8 Inch ST7789V SPI TFT Module , Sunlight Readable TFT Display IPS2.8 Inch ST7789V SPI TFT Module , Sunlight Readable TFT Display IPS2.8 Inch ST7789V SPI TFT Module , Sunlight Readable TFT Display IPS2.8 Inch ST7789V SPI TFT Module , Sunlight Readable TFT Display IPS2.8 Inch ST7789V SPI TFT Module , Sunlight Readable TFT Display IPS2.8 Inch ST7789V SPI TFT Module , Sunlight Readable TFT Display IPS2.8 Inch ST7789V SPI TFT Module , Sunlight Readable TFT Display IPS2.8 Inch ST7789V SPI TFT Module , Sunlight Readable TFT Display IPS

2.8 Inch ST7789V SPI TFT Module , Sunlight Readable TFT Display IPS

TFT-H028A16QVIST5N10.pdf
