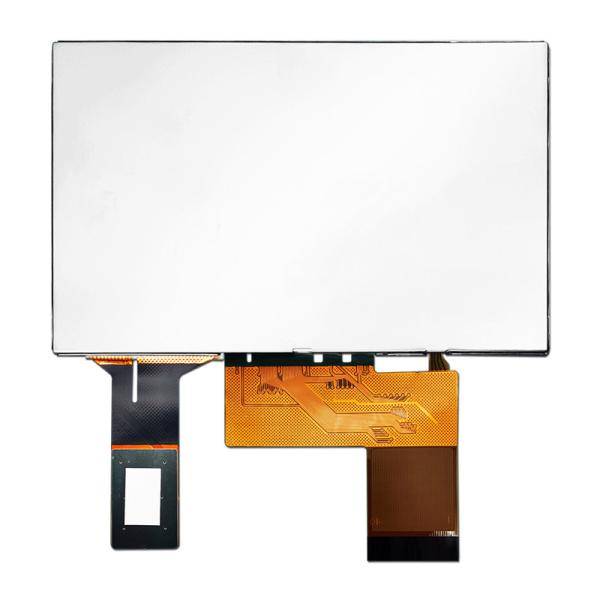

800x480 4.3 Inch TFT LCD Display Module Capacitive Touch Screen Module Pcap Monitor
800x480 4.3 Inch TFT LCD Display Module Capacitive Touch Screen Module Pcap Monitor
800x480 4.3 Inch TFT LCD Display Module Capacitive Touch Screen Module Pcap Monitor
800x480 4.3 Inch TFT LCD Display Module Capacitive Touch Screen Module Pcap Monitor
800x480 4.3 Inch TFT LCD Display Module Capacitive Touch Screen Module Pcap Monitor
800x480 4.3 Inch TFT LCD Display Module Capacitive Touch Screen Module Pcap Monitor
800x480 4.3 Inch TFT LCD Display Module Capacitive Touch Screen Module Pcap Monitor
800x480 4.3 Inch TFT LCD Display Module Capacitive Touch Screen Module Pcap Monitor
800x480 4.3 Inch TFT LCD Display Module Capacitive Touch Screen Module Pcap Monitor
800x480 4.3 Inch TFT LCD Display Module Capacitive Touch Screen Module Pcap Monitor
Specifications
Brand Name :
HOTHMI
Model Number :
TFT-H043A10SVIST5C40
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
​Product Type :
TFT Landscape
Display Content :
800X480
Dimensions (mm) :
105.5X67.2X4.55
Viewport Window Size :
4.3"
Effective Size (mm) :
95.04X53.85
Perspective :
Full Perspective
Description

4.3" 800x480 Projected Capacitive Touch Screen Module/800x480 Dots/TFT-H043A10SVIST5C40

General Feature:

Item Standard Value Unit
Display Size 4.3 Inch
Number of Pixels 800(H)*3(RGB)* 480(V) dots
Active Area 95.04(H)* 53.86(V) mm

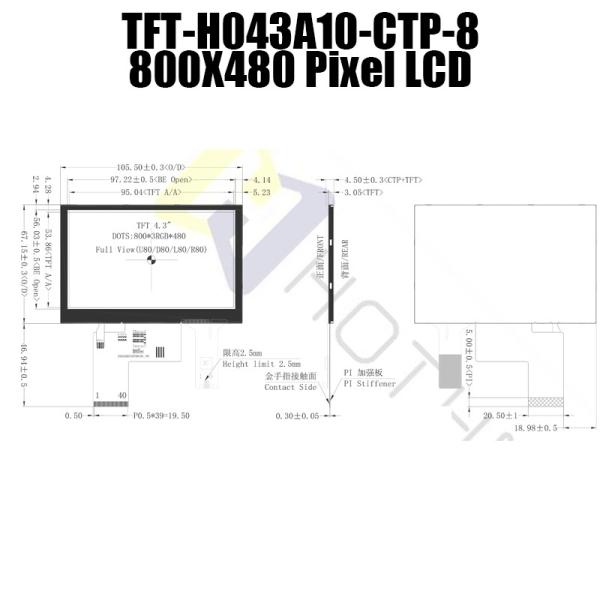

Outline Dimension

105.50(H) * 67.15(V) * 4.30(D) <TFT+CTP>

 mm
Viewing Direction FULL O'clock -
TFT Interface 24-bit TTL -
TFT Driver IC ST7262 -
TFT Driver Condition VCI=3.3V(Typ) V
Backlight White LED/10 PCS/5 PCS serial 2 ways parallel -
Touch Panel Without TP With RTP With CTP -
CTP Driver IC GT911 -
CTP Driver Condition VDD=3.3V(Typ) V
Operation Temperature -40 ～ 80 ℃
Storage Temperature -40 ～ 80 ℃

TFT Pin Description

Pin NO. Symbol Description
1 LEDK LED Cathode
2 LEDA LED Anode
3 GND Ground
4 VCI Digital Power
5～12 DR0～7 Red data bus.If not used, please fix this pin at GND.
13～20 DG0～7 Green data bus.DG[7:0] are used in 8-bit RGB interface.
21～28 DB0～7 Blue data bus.If not used, please fix this pin at GND.
29 GND Ground
30 PCLK Pixel clock input pin, default is negative polarity.

31

DISP

 Display mode sets DISP=GND:Standby mode; DISP=VCI:Normal display mode
32 HSD Horizontal sync signal, default is negative polarity.
33 VSD Vertical sync signal, default is negative polarity.
34 DEN Data input enable. Display access is enabled when DE is “H”.
35 NC Not Connect
36 GND Ground
37 RTP_XR RTP function pin.If not used, let this pin open.
38 RTP_YD RTP function pin.If not used, let this pin open.
39 RTP_XL RTP function pin.If not used, let this pin open.
40 RTP_YU RTP function pin.If not used, let this pin open.

CTP Pin Description

Pin NO. Symbol Description
1 RTN System reset
2 VDD Power supply
3 GND Ground
4 INT Interrupt signal
5 SDA IIC data signal
6 SCL IIC clock signal

Describe


The TFT-H043A10SVIST5C40 TFT LCD module is a 4.3-inch diagonal, 800xRGBx480, full-color TFT module with projected capacitive touch screen on the module, form factor 105.5 × 67.2 mm, VA dimension 96.24 × 54.66 mm and AA dimension 95.04 × 53.86 mm. This 4.3" TFT LCD with projected capacitive touch screen can be used in embedded systems, industrial equipment, security and handheld devices that need to display high quality and color images.

Search keyword: tft 4.3, tft 4.3", 4.3 tft lcd, 4.3" tft lcd, 4.3 inch tft lcd, tft lcd 4.3, 4.3 tft display, 4.3" tft display, 4.3 inch tft display, tft display 4.3, tft display 4.3"

800x480 4.3 Inch TFT LCD Display Module Capacitive Touch Screen Module Pcap Monitor800x480 4.3 Inch TFT LCD Display Module Capacitive Touch Screen Module Pcap Monitor800x480 4.3 Inch TFT LCD Display Module Capacitive Touch Screen Module Pcap Monitor800x480 4.3 Inch TFT LCD Display Module Capacitive Touch Screen Module Pcap Monitor800x480 4.3 Inch TFT LCD Display Module Capacitive Touch Screen Module Pcap Monitor800x480 4.3 Inch TFT LCD Display Module Capacitive Touch Screen Module Pcap Monitor800x480 4.3 Inch TFT LCD Display Module Capacitive Touch Screen Module Pcap Monitor800x480 4.3 Inch TFT LCD Display Module Capacitive Touch Screen Module Pcap Monitor800x480 4.3 Inch TFT LCD Display Module Capacitive Touch Screen Module Pcap Monitor800x480 4.3 Inch TFT LCD Display Module Capacitive Touch Screen Module Pcap Monitor

800x480 4.3 Inch TFT LCD Display Module Capacitive Touch Screen Module Pcap Monitor

TFT-H043A10SVIST8C40.pdf

TFT-H043A10SVIST5C40.pdf
