2X16 Character COG LCD | FSTN+ Gray Display with No Backlight | ST7032I/HTG1602D

HTG1602D | 16x2 Character COG | Reflective LCD | No Backlight | FSTN (+) Positive Gray Display

DESCRIPTION

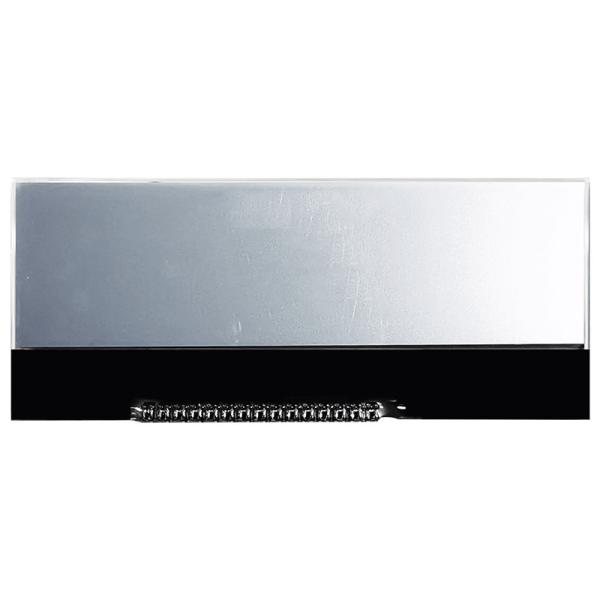

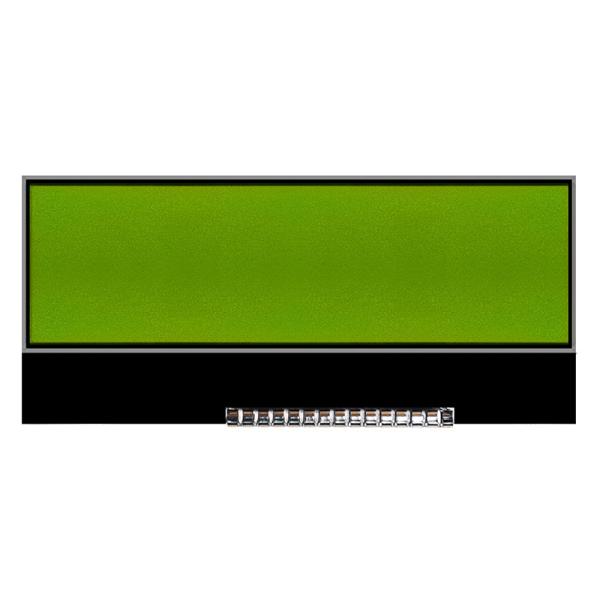

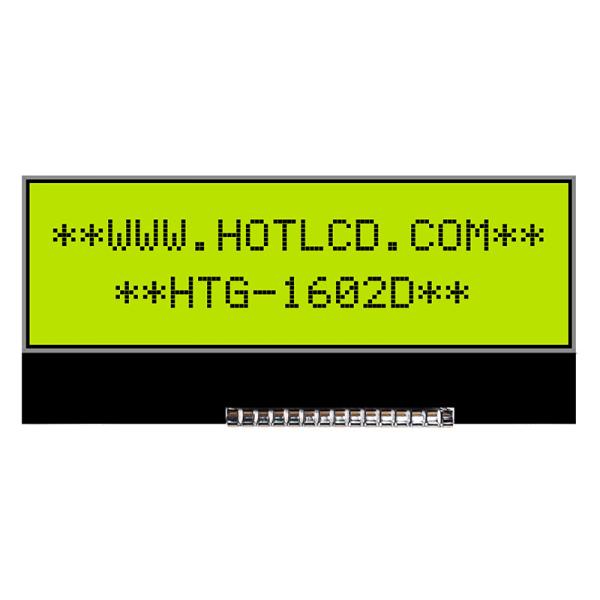

This 16x2 character Chip-On-Glass (COG) LCD shows blue pixels on a gray background. The FSTN positive LCD is reflective and does not have a backlight. As a COG display, there's no PCB and the controller/driver is directly bonded to the glass of the display. The Liquid Crystal Display offers a wide operating temperature range from -10 to 50 degrees Celsius. This HTG1602D display with built-in ST7032I controller has a 6:00 optimal view, 4-bit/ 8-bit parallel interface, operates at 3.3V supply voltage and is RoHS compliant.

Product parameters

ITEM STANDARD VALUE UNIT
Number of dots 2X16 DOTS ----
Module dimension 65.0x27.7x2.8 mm
View display area 61.0x15.7 mm
Dot size 0.60x0. mm
Dot pitch 0.65x0.60 mm
Operating temp -10~50 ℃
Storage temp -20~70 ℃

Driving Method

1/ 128 DUTY,1/ 12 BIAS,VOP= 15.0V

Viewing direction

6 O’CLOCK

Display mode

FSTN

Display type

TRANSMISSIVE / NEGATIVE

Driver IC

ST7032D
Backlight WHITE

Mechanical Data

Item Standard Value Unit
Module Dimension 65.0x27.7x2.8 mm
Viewing Area 65.0x27.7x2.8 mm
Mounting Hole 56.2x10.8 mm
Dot Pitch 0.60x0.55 mm
Dot Size 0.65x0.60 mm

Electrical Characteristics

Item Symbol Standard Value
typ.		 Unit
Input Voltage VDD 3.3v V
