8X2 Character LCD | DFSTN- Display with White Backlight Arduino lcd display module graphic lcd module
8X2 Character LCD | DFSTN- Display with White Backlight Arduino lcd display module graphic lcd module
8X2 Character LCD | DFSTN- Display with White Backlight Arduino lcd display module graphic lcd module
8X2 Character LCD | DFSTN- Display with White Backlight Arduino lcd display module graphic lcd module
8X2 Character LCD | DFSTN- Display with White Backlight Arduino lcd display module graphic lcd module
8X2 Character LCD | DFSTN- Display with White Backlight Arduino lcd display module graphic lcd module
Specifications
Brand Name :
HOTHMI
Model Number :
HTM-0802B-41W-T5P-V03
Certification :
RoHS
Place of Origin :
Dongguan, China
MOQ :
2
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Show contents :
8x2 Character
Outline size(mm) :
58.0x32.0x10.3
Size of View Window(mm) :
38.0x16.0
Display size(mm) :
27.81x11.5
Point spacing(mm) :
0.6x0.7
Connection method PIN number :
16PIN
Description

8X2 Character LCD | DFSTN- Display with White Backlight Arduino lcd display module graphic lcd module

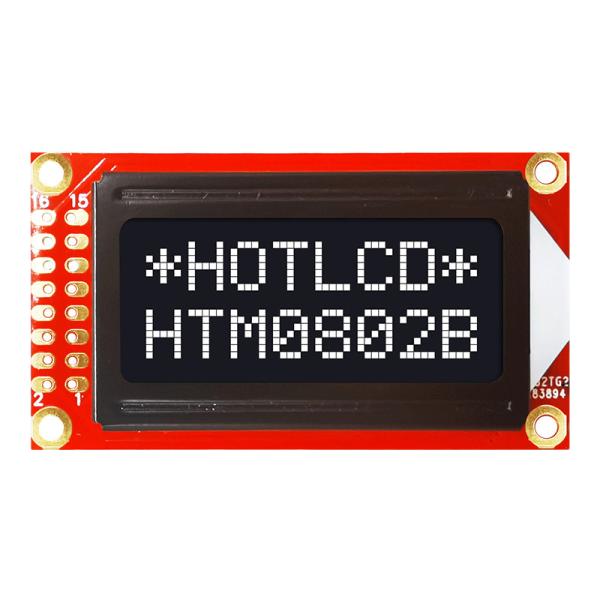

HTM-0802B-41W-T5P-V03 is an 8x2 character LCD module. The voltage is preset to 5V. When 3V is used, the negative voltage can only supply 3V. HTM-0802B-41W-T5P-V03 8x2 LCD module is built-in ST7066U IC by default and supports 6800 interface;Arduino display

The module backlight is available in various combinations without backlight or with yellow-green/blue/white/amber/red/RGB backlight. A variety of font libraries are provided, including English/Japanese, Western European, Eastern European, Scandinavian European, Cyrillic (Russian), and Hebrew/Arabic, etc.

parameter Specification content Unit
model HTM-0802B-41W-T5P-V03
resolution 8 words × 2 lines dots
Module size 58.0(W) × 32.0(H) × 13.2 (D)mm mm
Visual (VA) area 38.0 × 16.0mm mm
Valid (AA) area 27.81 × 11.5 mm
Pixel pitch 0.60 × 0.70 mm
IC ST7066U
Application voltage 5.0V V
backlight white
display mode DFSTN(-)
Drive mode 1/16 duty cycle
product type Character LCD
characteristic Transflective Polarizer

The ‌HOTDISPLAY HTM-0802B-41W-T5P-V03‌ is an ‌8×2 character LCD module‌ that displays ‌white characters on a black background‌, operating at ‌5.0V DC‌ with single-line transflective technology‌
. Designed for industrial-grade applications, it features:

  • ‌Wide Temperature Range‌: Reliable performance from ‌-20°C to 70°C‌‌
  • ‌Optimized Visibility‌: Integrated ‌white side backlight‌ enhances readability in low-light environments‌
  • ‌Viewing Angle‌: 6 o’clock orientation for ideal display alignment in embedded systems‌
  • ‌Controller Compatibility‌: Built-in ‌ST7066U driver‌ ensures seamless integration with Arduino and other MCU platforms‌

‌Technical Specifications:‌

  • ‌Display Type‌: STN transflective LCD with ‌COB packaging‌‌
  • ‌Character Size‌: Standard dimensions for consistent output (pixel spacing: 0.6mm×0.7mm)‌
  • ‌Interface‌: Parallel communication via RS/RW/E control signals‌

This module is ideal for applications requiring ‌robust character displays‌, such as instrumentation, control panels, and IoT devices‌

Quick detail

▶ Product type:Character LCM

▶ Show contents:8x2Character

▶ Outline size(mm) :58.0x32.0x10.3

▶ Size of View Window(mm):38.0x16.0

▶ Display size(mm) :27.81x11.5

▶ Point spacing(mm):0.6x0.7

▶ Product application:Instrumentation

▶ Visual angle:6H

▶ Backlight type or brightness:white

▶ Connection PIN Number:16PIN

▶ Interface mode:MCU/8bit

▶ Special instructions:Anti-static ESD 8KV

▶ Working temperature:-20~70℃

▶ Power supply voltage:5.0v
