Specifications
Brand Name :
HOTHMI
Model Number :
TFT-H015A4HQIST7N40
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Display content :
320x320 dots
Dimensions (mm) :
31.52×33.72×1.51
Field of view window size :
Full View
Backlight brightness :
750cd/m2
driver chip :
ST7796
Interface :
SPI
Operating Temperature: :
-30~80℃
Description

1.5 inch 320x320 resolution TFT/1.5 inch mini square color display/IPS viewing angle/MCU8080/ST7796/C8051/Arduino/STM32

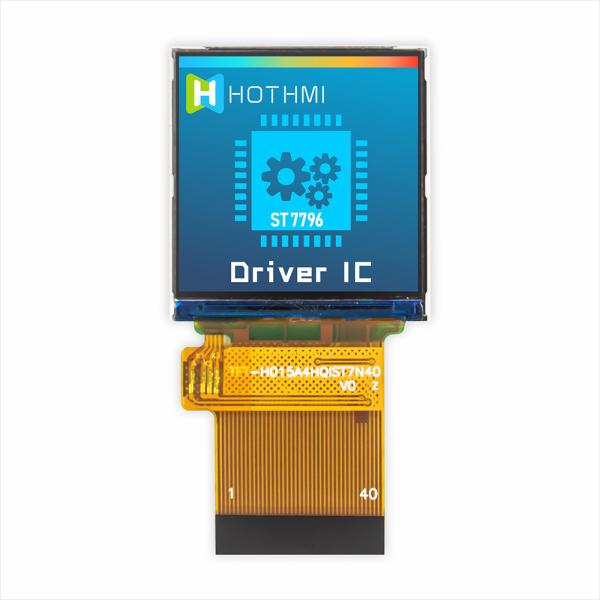

This TFT-H015A4HQIST7N40 is a 320x320 dot 1.5 inch color TFT square LCD display with ST7796 controller, excellent display quality, full viewing angle, easy to be controlled by MCU such as 8051, PIC, AVR, ARDUINO ARM and Raspberry PI. It can be used in any embedded system, industrial equipment, security and handheld devices that need to display with high quality and color images. It supports MCU interface. With optional FPC zif connector, easy to assemble or disassemble.

Stunning Visuals

TFT/Transmissive display with 262K - 16.7M colors for vivid images.

Full 0° clock viewing angle for clear views from all sides.

Flexible Connectivity

8080 8/16 - bit interface for easy integration.

Robust Performance

Operates at VCI = 2.8V, IOVCC = 1.8V (Typ), energy - efficient.

Wide temp range: - 30°C to 70°C (operating), - 30°C to 80°C (storage).

Bright Backlight

3 parallel white LEDs, 750 cd/m² (Typ) brightness for great visibility.

Reliable Design

ST7796 driver IC for stable performance.

Anti - image - sticking advice for longer lifespan.

ITEM PARAMETER DESCRIPTION UNIT
TFT series TFT-H015A4HQIST7N40
Diagonal size 1.5” Inch
Resolution 320x320 Dot
Dimensions 31.52*33.72*1.51 mm
Active area (AA) 27.74*27.74 mm
LCD type TFT LCD Display mm
Display viewing angle IPS Full View
Aspect ratio 1:1
Backlight type white LED
TFT driver IC ST7796
Brightness 750cd/m2 cd/m2
Operating temperature -30~70℃ ℃
Storage temperature -30~80℃ ℃

1.5 inch 320x320 resolution TFT/1.5 inch mini square color display/IPS viewing angle/MCU8080/ST7796/C8051/Arduino/STM321.5 inch 320x320 resolution TFT/1.5 inch mini square color display/IPS viewing angle/MCU8080/ST7796/C8051/Arduino/STM321.5 inch 320x320 resolution TFT/1.5 inch mini square color display/IPS viewing angle/MCU8080/ST7796/C8051/Arduino/STM321.5 inch 320x320 resolution TFT/1.5 inch mini square color display/IPS viewing angle/MCU8080/ST7796/C8051/Arduino/STM321.5 inch 320x320 resolution TFT/1.5 inch mini square color display/IPS viewing angle/MCU8080/ST7796/C8051/Arduino/STM321.5 inch 320x320 resolution TFT/1.5 inch mini square color display/IPS viewing angle/MCU8080/ST7796/C8051/Arduino/STM32
