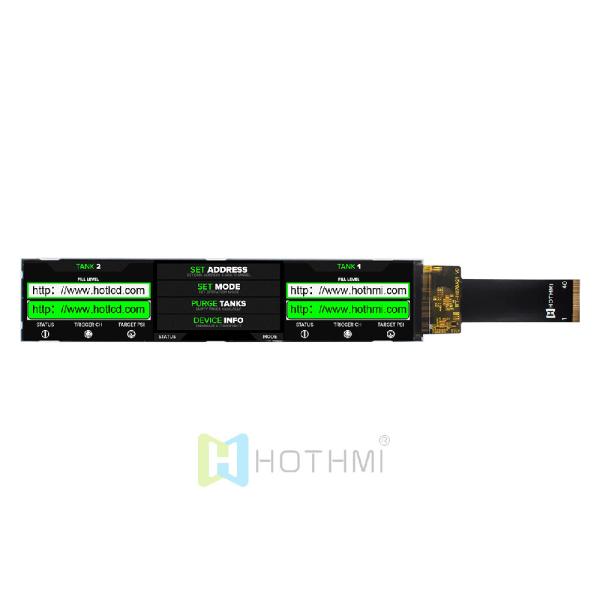

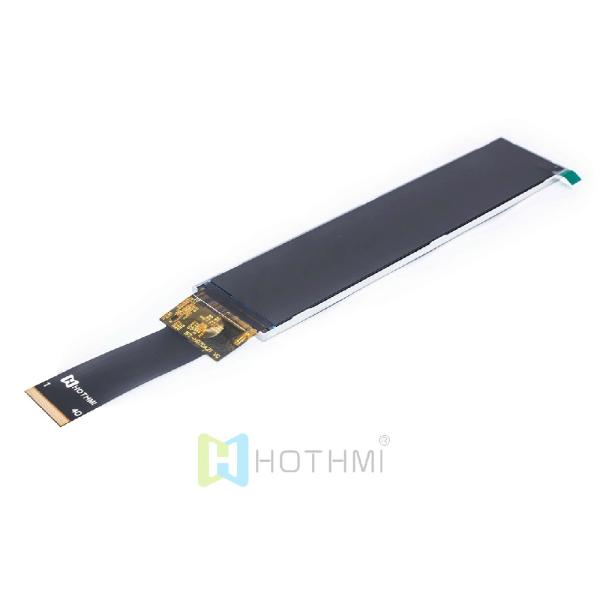

7.0 inch IPS TFT LCD display / 280x1424 resolution color display / with ST7703 controller

Key Features:

▶ Model: TFT-H070A21ZBINV6N40

▶ Type: TFT LCD display

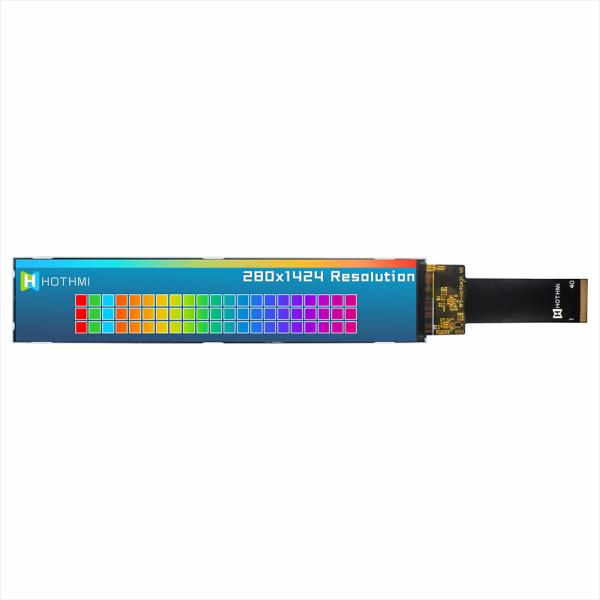

▶ Display content: 280x1424

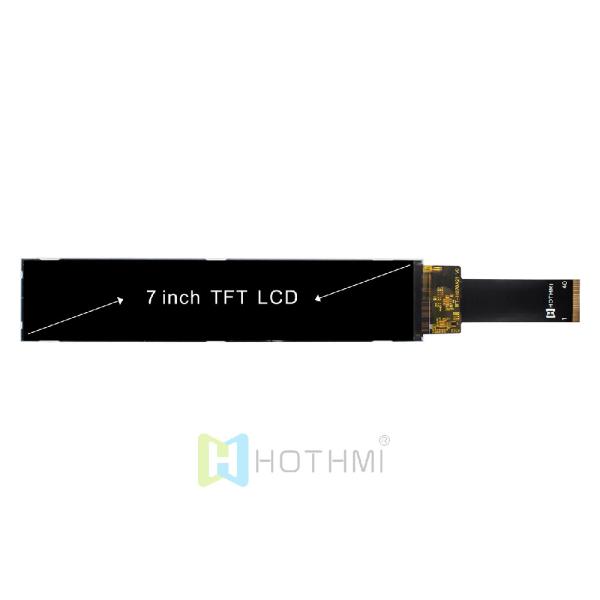

▶ Display inches: 7.0"

▶ Dimensions (mm): 182.47x38.2x3.45

▶ AA size (mm): 170.88x33.6

▶ Product application: coffee machine, small household appliances

▶ Viewing angle: IPS full viewing angle

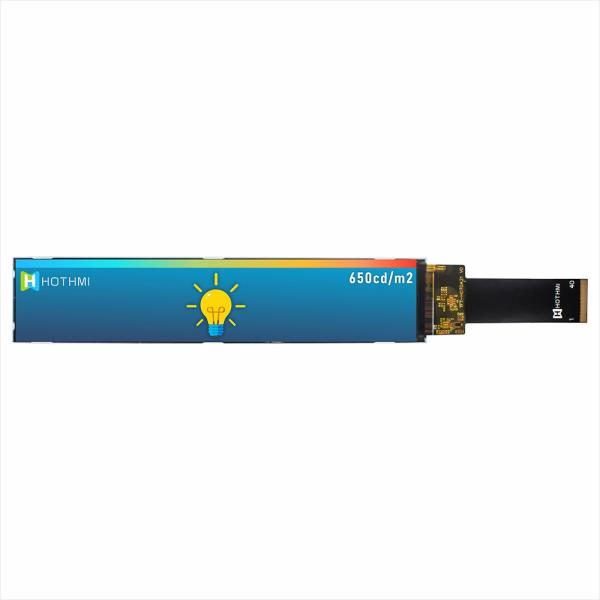

▶ Backlight type or brightness: white backlight 650cd/M2

▶ Connection method PIN number: FPC-40 pin

▶ Interface method: MIPI 4L

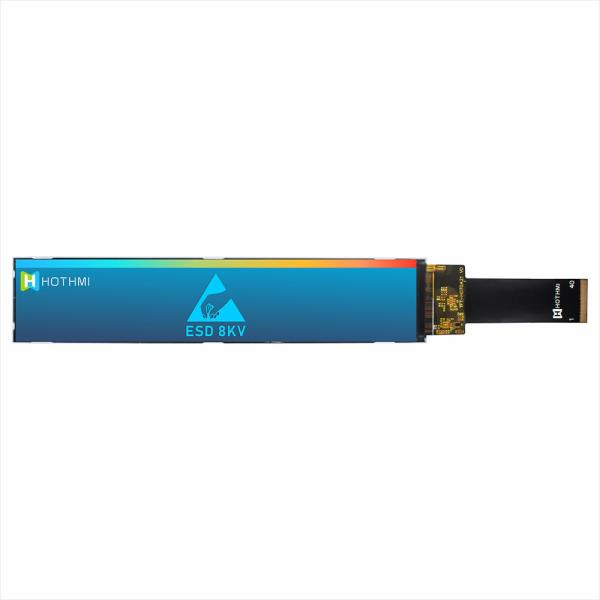

▶ Special instructions: Anti-static ESD 8KV

▶ Working temperature: -30~80℃

▶ Supply voltage: 3.3V

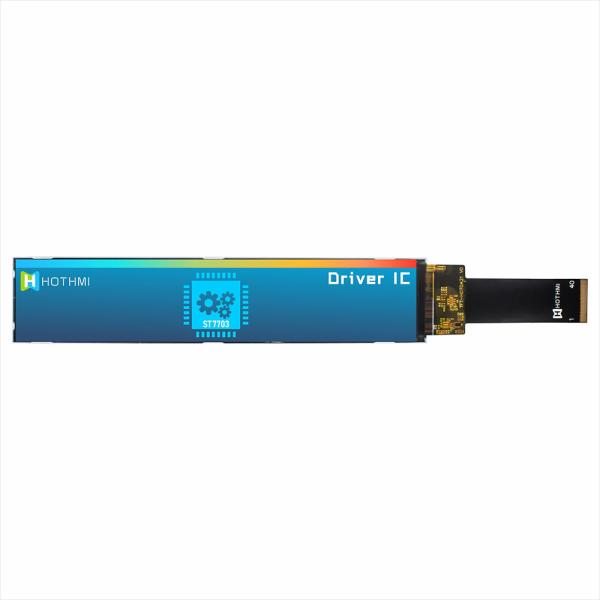

▶ Driver chip: ST7703

7.0 inch IPS TFT LCD display / 280x1424 resolution color display / with ST7703 controller

7.0 inch IPS TFT LCD display / 280x1424 resolution color display / with ST7703 controller The TFT-H070A21ZBINV6N40 is a 7.0 inch IPS TFT display with a resolution of 280x1424 pixels. The display has a high contrast ratio of 500:1, capable of deep blacks and vivid colors. It also has a brightness of up to 650cd/m2, making it suitable for use in both indoor and outdoor environments.

The TFT-H070A21ZBINV6N40 is equipped with optional resistive or capacitive touch screen capabilities, allowing users to interact with the display through touch. In addition, it is equipped with an optional FPC Zif connector for easy connection to other devices. It is also compatible with 8051 boards (a popular microcontroller board often used in embedded systems) and arduino shields with examples and libraries.

Overall, the 7.0-inch IPS TFT LCD display/280x424 resolution color display/with ST7703 controller is a versatile, high-performance display suitable for a wide range of applications, including industrial control systems, home automation, and portable electronic devices

Typical Applications:

Industrial Instruments: Used in devices requiring high-resolution displays.

Smart Devices: Ideal for wearable devices, handheld gadgets, and IoT devices.

Embedded Systems: Compatible with a wide range of microcontrollers and development boards.

Advantages:

High Picture Quality: Sharp and clear display with a resolution of 320x320.

Wide Viewing Angle: Ensures good visibility from different angles.

Flexible Interface Options: Supports both parallel and serial interfaces, making it versatile for different applications.

Environmental Compliance: Meets RoHS standards, ensuring it is environmentally friendly.

Pin Configuration and Interface:

The module supports multiple interface options, allowing it to be easily integrated into various systems. The specific pin configuration will depend on the interface mode selected (parallel or serial).

Development Support:

The module is compatible with a wide range of MCU platforms, making it easy to integrate into existing projects. It is particularly well-suited for use with popular development boards like Arduino, Raspberry Pi, and STM32.

Conclusion:

The TFT-H027A01HQINV4N40 is a versatile and high-quality TFT LCD module suitable for a wide range of applications. Its support for multiple interfaces and compatibility with various MCU platforms make it an excellent choice for developers looking for a reliable display solution.
