Specifications
Brand Name :
HOTHMI
Model Number :
TFT-H028B23VGIST5N30
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Display content :
480×640 dots
Dimensions (mm) :
65.9×50.9×2.36
Field of view window size :
Full viewing angle
Backlight brightness :
500cd/m2
driver chip :
ST7701
Interface :
MIPI
Operating Temperature: :
-20~70℃
Description

If you want to buy, please go to https://www.display-lcd.com/

2.8 - inch TFT LCD: A High - Performance Display Solution

Looking for a display that offers both quality and versatility? Our 2.8 - inch TFT LCD is the answer!
Exceptional Visual Quality

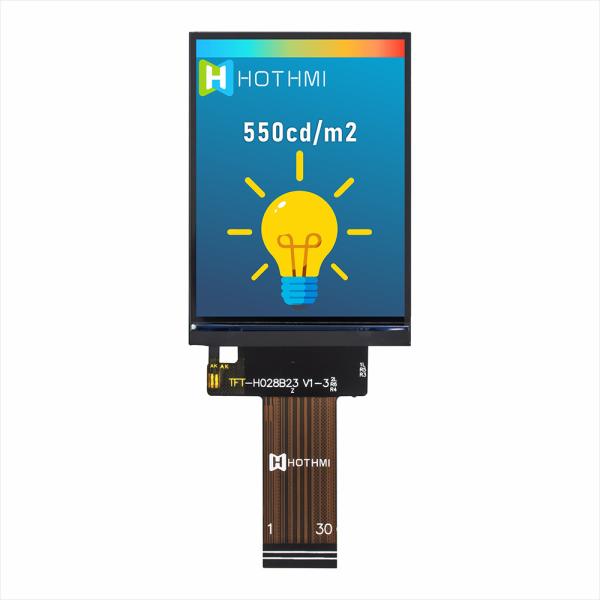

With a 480x640 pixel resolution and a bright 500 cd/m² LED backlight, it delivers sharp and vivid color images. The IPS full - viewing angle, achieved through MVA technology, ensures a great visual experience from any direction. Whether it's for embedded systems, industrial equipment, or handheld devices, the display provides top - notch visual output in portrait mode.
Efficient Connectivity
Featuring a MIPI interface, it enables seamless and fast communication with devices like Arduino/C8051. This not only allows for real - time updates but also smooth animations and dynamic visual effects, enhancing the functionality of your projects.
Customizable Options
Although the base model doesn't have a touchscreen function or a glass cover, we offer the option to add these features. This flexibility means you can tailor the display to your specific project requirements.
Low - Power and Compact Design
Powered by a 3.3V supply, it has a low - power consumption, making it energy - efficient. Its compact size also makes it suitable for space - constrained applications.
Environmentally Friendly
The display is RoHS compliant, adhering to strict environmental and safety standards. You can use it with peace of mind, knowing it prioritizes environmental protection and user safety.
Choose our 2.8 - inch TFT LCD for a display solution that combines performance, flexibility, and reliability for all your modern electronic projects.
Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.
Touchscreen add-ons: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.
Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.
Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.
parameter Specification content Unit
TFT series TFT-H028B23VGIST7G40

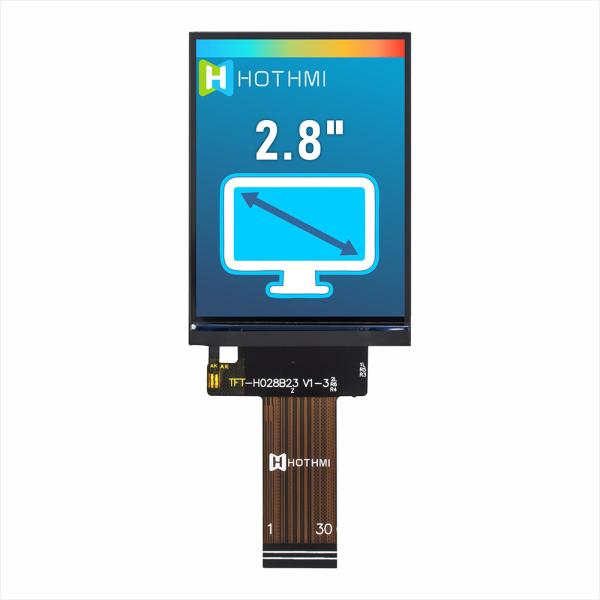

Diagonal size 2.8” Inch
Resolution 480x640 Dot
Dimensions 65.9*50.9*2.36 mm
Active area (AA) 57.6*43.2 mm
LCD type TFT wide temperature and full viewing angle display mm
Display viewing angle IPS
Aspect ratio 3:2
Backlight type LED white

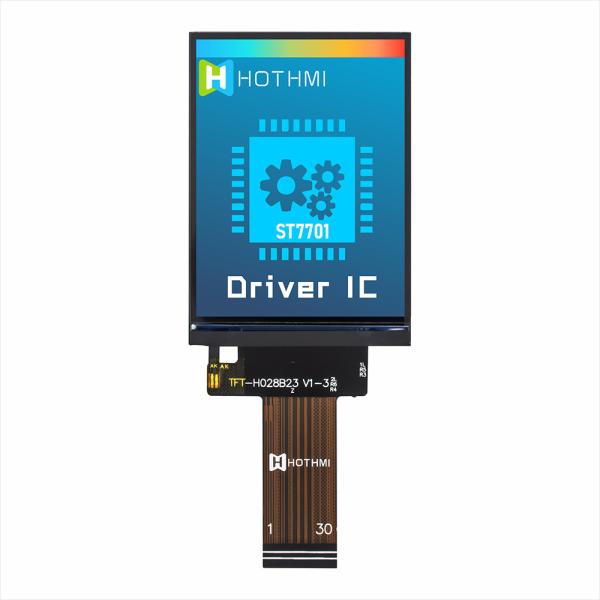

TFT driver IC ST7701<TFT> or compatible
Brightness 500 cd/m2
Operating temperature -20~70℃ ℃
Storage temperature -30~80℃ ℃
