7.0 inch TFT LCD display module/1200x1920 dot matrix IPS full-view color screen/FPC plug/HX8279 controller/MIPI interface/Android/RK

Key Features:

▶ Model: TFT-H070D12ZFIHX3N40

▶ Type: TFT standard display

▶ Display pixels: 800x1280 px

▶ Dimensions (mm): 99.75X161.6X2.2

▶ Display inches: 7.0"

▶ AA size (mm): 94.5X151.20

▶ Application: industrial control systems, portable electronic devices

▶ Viewing angle: full viewing angle (U80/D80/R80/L80)

▶ Backlight/brightness: 350cd/m2

▶ Pin: FPC-40 pin

▶ Interface: MIPI 4L

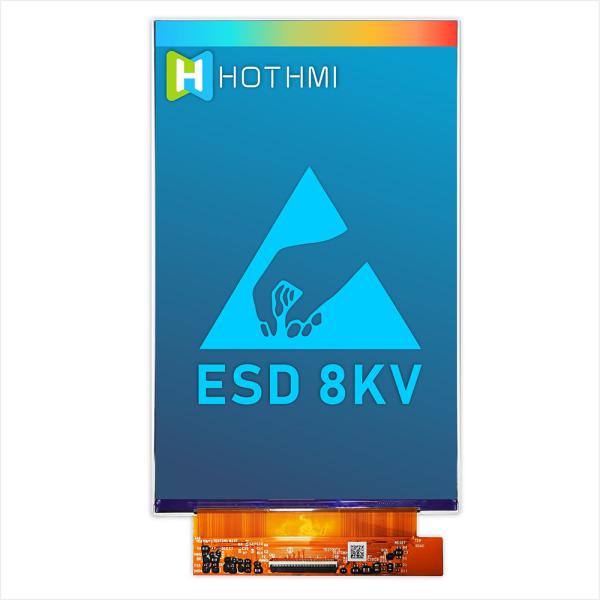

▶ Special instructions: Anti-static ESD 8KV

▶ Operating temperature: -20~70℃

▶ Supply voltage: 3.3V

▶ Driver chip: HX8279

7.0-inch TFT LCD display module/1200x1920 dot matrix IPS full-view color screen/FPC plug/HX8279 controller/MIPI interface/Android/RK

7.0-inch TFT LCD display module/1200x1920 dot matrix IPS full-view color screen/FPC plug/HX8279 controller/MIPI interface, with a resolution of 1200x1920 pixels. The TFT-H070D12ZFIHX3N40 display is IPS full-view, and you can clearly see the displayed content no matter which direction you look at it. This model uses FPC connection, and FPC requires a connector. Just use our optional welding FPC connector to connect, which is easy to insert or remove.

This display also has a brightness of up to 350cd/m2. It is composed of 20 LED white lights connected in series with 5 lights each, forming a 4-way parallel combination. Regarding the brightness, we can also adjust it, higher or lower.

For users using 8051 microcontrollers, we have also prepared a detailed tutorial that includes interface information, demo code, and development kits. You can contact us to request and learn. Our displays are all RoHS compliant and adhere to strict environmental and safety standards

Typical Applications:

Industrial Instruments: Used in devices requiring high-resolution displays.

Smart Devices: Ideal for wearable devices, handheld gadgets, and IoT devices.

Embedded Systems: Compatible with a wide range of microcontrollers and development boards.

Advantages:

High Picture Quality: Sharp and clear display with a resolution of 320x320.

Wide Viewing Angle: Ensures good visibility from different angles.

Flexible Interface Options: Supports both parallel and serial interfaces, making it versatile for different applications.

Environmental Compliance: Meets RoHS standards, ensuring it is environmentally friendly.

Pin Configuration and Interface:

The module supports multiple interface options, allowing it to be easily integrated into various systems. The specific pin configuration will depend on the interface mode selected (parallel or serial).

Development Support:

The module is compatible with a wide range of MCU platforms, making it easy to integrate into existing projects. It is particularly well-suited for use with popular development boards like Arduino, Raspberry Pi, and STM32.

Conclusion:

The TFT-H027A01HQINV4N40 is a versatile and high-quality TFT LCD module suitable for a wide range of applications. Its support for multiple interfaces and compatibility with various MCU platforms make it an excellent choice for developers looking for a reliable display solution.
