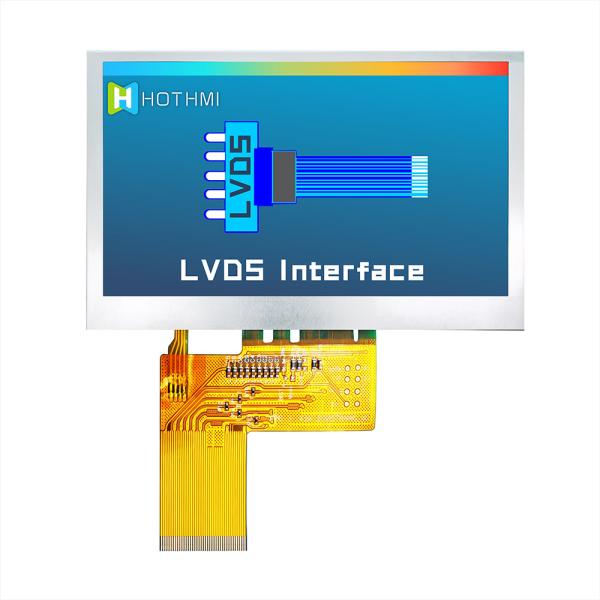

4.3-inch 800x480 dot matrix TFT LCD display module wide temperature IPS full viewing angle readable in sunlight LVDS compatible with industrial computer motherboard

Key Features:

▶ Model: TFT-H043A13SVIST6N40

▶ Type: TFT wide temperature display screen

▶ Display pixel: 800x480 dot matrix

▶ External dimensions (mm): 105.50x67.15x3.05

▶ Display inches: 4.3"

▶ Effective size (mm): 95.04x53.856

▶ Application: Industrial computers, intelligent devices

▶ Visual angle: IPS (U80/D80/L80/R80)

▶ Brightness: 1000cd/m2

▶ Pin: FPC-40PIN

▶ Interface: LVDS 24 Bit

▶ Special reminder: Anti static ESD 8KV

▶ Working temperature: -40~80 ℃

▶ Power supply voltage: 3.3V

▶ Driver chip: ST7262

TFT-H043A13SVIST6N40 | 4.3-inch IPS full angle wide temperature LCD display | LVDS interface | 800x480 pixel resolution LCD screen | optional capacitive touch/resistive touch

TFT-H043A13SVIST6N40 is a 4.3-inch IPS capacitive touch TFT LCD display with a resolution of 800x480 pixels. It uses ST7262 display driver IC, plug-in FPC, and can be used with matching connectors. The IPS (U80/D80/L80/R80) technology used in this monitor provides full view and excellent color performance, allowing you to easily view from all angles without distortion. This monitor has a high contrast of 1000:1 and can display deep black and vivid colors. It has a brightness of up to 1000cd/m2 and can be read in sunlight. FPC connection (optional connector), 3.3V voltage, supports vertical screen display. All materials comply with RoHS environmental standards. This module is widely used in various instruments, industrial computers, intelligent devices, etc. Suitable for various microcontroller development platforms such as Linux system boards, industrial control motherboards, and RK motherboards

Application areas:

Applicable to a wide range of application scenarios such as the Internet of Things, industrial automation, consumer electronics, test and measurement, handheld devices, industrial control systems, home automation and portable electronic products

Typical Applications:

Industrial Instruments: Used in devices requiring high-resolution displays.

Smart Devices: Ideal for wearable devices, handheld gadgets, and IoT devices.

Embedded Systems: Compatible with a wide range of microcontrollers and development boards.

Advantages:

High Picture Quality: Sharp and clear display with a resolution of 320x320.

Wide Viewing Angle: Ensures good visibility from different angles.

Flexible Interface Options: Supports both parallel and serial interfaces, making it versatile for different applications.

Environmental Compliance: Meets RoHS standards, ensuring it is environmentally friendly.

Pin Configuration and Interface:

The module supports multiple interface options, allowing it to be easily integrated into various systems. The specific pin configuration will depend on the interface mode selected (parallel or serial).

Development Support:

The module is compatible with a wide range of MCU platforms, making it easy to integrate into existing projects. It is particularly well-suited for use with popular development boards like Arduino, Raspberry Pi, and STM32.

Conclusion:

The TFT-H027A01HQINV4N40 is a versatile and high-quality TFT LCD module suitable for a wide range of applications. Its support for multiple interfaces and compatibility with various MCU platforms make it an excellent choice for developers looking for a reliable display solution.
