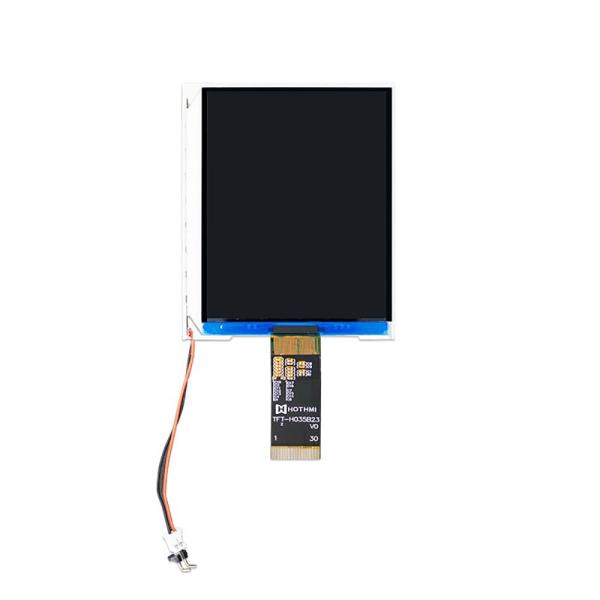

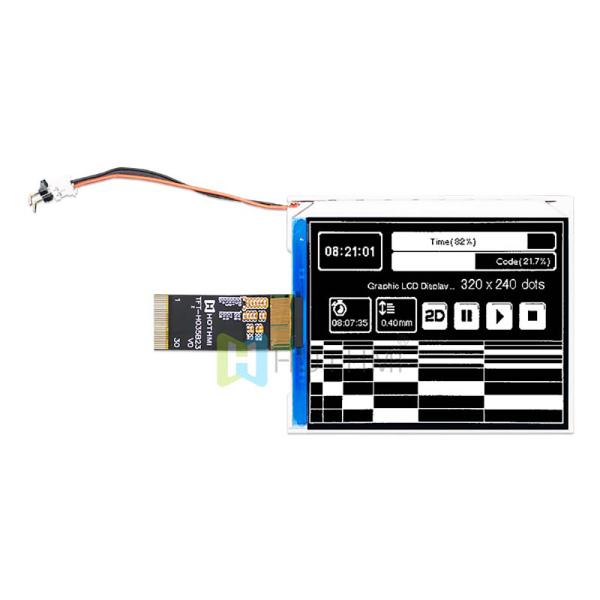

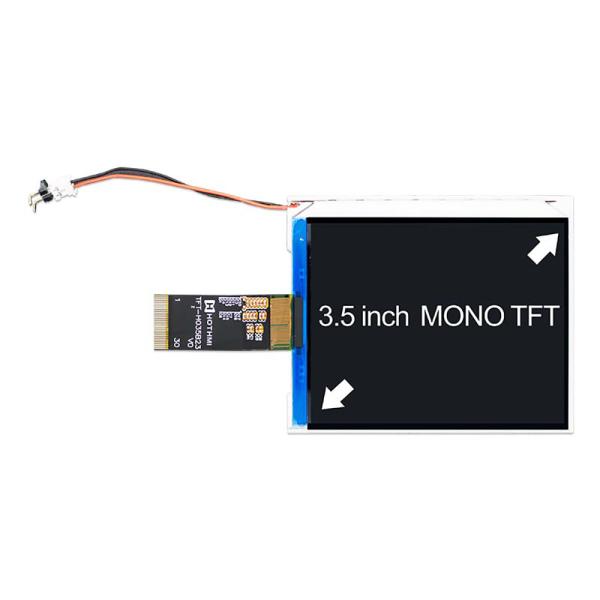

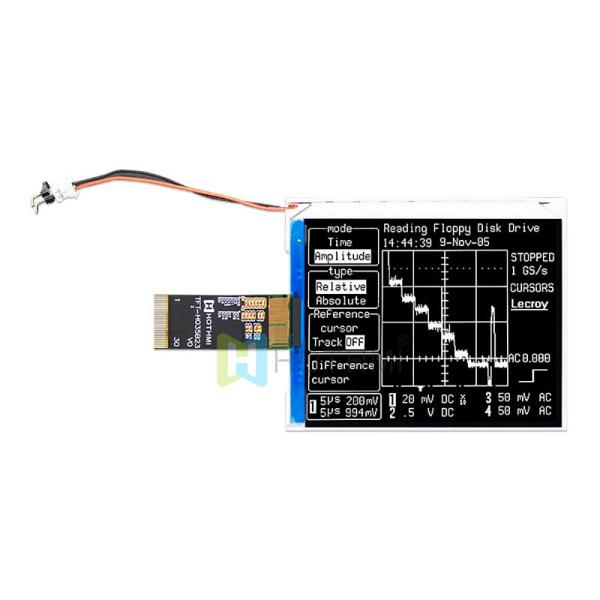

3.5 inch IPS Monochrome LCD Panel 240x320 Px Sunlight Readable High Contrast
3.5 inch IPS Monochrome LCD Panel 240x320 Px Sunlight Readable High Contrast
3.5 inch IPS Monochrome LCD Panel 240x320 Px Sunlight Readable High Contrast
3.5 inch IPS Monochrome LCD Panel 240x320 Px Sunlight Readable High Contrast
3.5 inch IPS Monochrome LCD Panel 240x320 Px Sunlight Readable High Contrast
3.5 inch IPS Monochrome LCD Panel 240x320 Px Sunlight Readable High Contrast
3.5 inch IPS Monochrome LCD Panel 240x320 Px Sunlight Readable High Contrast
3.5 inch IPS Monochrome LCD Panel 240x320 Px Sunlight Readable High Contrast
3.5 inch IPS Monochrome LCD Panel 240x320 Px Sunlight Readable High Contrast
3.5 inch IPS Monochrome LCD Panel 240x320 Px Sunlight Readable High Contrast
3.5 inch IPS Monochrome LCD Panel 240x320 Px Sunlight Readable High Contrast
3.5 inch IPS Monochrome LCD Panel 240x320 Px Sunlight Readable High Contrast
3.5 inch IPS Monochrome LCD Panel 240x320 Px Sunlight Readable High Contrast
3.5 inch IPS Monochrome LCD Panel 240x320 Px Sunlight Readable High Contrast
3.5 inch IPS Monochrome LCD Panel 240x320 Px Sunlight Readable High Contrast
3.5 inch IPS Monochrome LCD Panel 240x320 Px Sunlight Readable High Contrast
Specifications
Brand Name :
HOTHMI
Model Number :
TFT-H035B23QVIST3N30-WLED-V1
Certification :
RoHS
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Display content :
240x320 Px
Dimensions (mm) :
65.58x82.74x7.8
Field of view window size :
IPS full viewing angle
Backlight brightness :
350cd/M²
driver chip :
ST7512
Interface :
MCU
Operating Temperature: :
-30~85℃
Description

3.5 inch IPS Monochrome LCD Panel 240x320 Px Sunlight Readable High Contrast

Key Features:

▶ Model: TFT-H035B23QVIST3N30-WLED-V1

▶ Type: Monochrome TFT (vertical screen)

▶ Display pixels: 240x320 Px

▶ Overall dimensions (Mm): 65.58x82.74x7.8

▶ Diagonal size: 3.5"

▶ AA size (Mm): 53.28x71.04

▶ Application: Vehicle-mounted instrumentation

▶ Viewing angle: IPS full viewing angle

▶ Backlight/Brightness: 350cd/M²

▶ Pin: FPC-30PIN

▶ Interface mode: MCU

▶ Special instructions: Anti-static ESD 8KV

▶ Working temperature: -30~85℃

▶ Supply voltage: 3.3V

▶ Driver chip: ST7512

TFT-H035B23QVIST3N30-WLED-V1 | 3.5-inch MONO black and white TFT LCD display | IPS full viewing angle | High brightness and high contrast 1000:1 | 240x320 Px | MCU interface | White backlight

Product Features:

Clear Display: The high resolution of 240x320 Px ensures display clarity, allowing images and text to look great on portrait screens.

Wide viewing angle technology: Adopting IPS full viewing angle technology to ensure clear images at various angles, making information easy to view.

Suitable for vehicle-mounted instruments: Specifically designed for vehicle-mounted instruments and meters, it meets the requirements of the automotive

environment and is stable and reliable. Anti-static design: It has anti-static ability to prevent the impact of static electricity on the display screen, and has ESD 8KV protection to improve the stability and durability of the product.

Low-power design: Using a low-power MCU interface method helps extend the device's battery life and improve overall energy efficiency.

Industrial grade temperature resistance: operates in a wide operating temperature range (-30~85℃), adapting to various environmental conditions.

Appearance design: Compact appearance size (65.58x82.74x7.8mm), suitable for car dashboard design with limited space.

Typical Applications:

Industrial Instruments: Used in devices requiring high-resolution displays.

Smart Devices: Ideal for wearable devices, handheld gadgets, and IoT devices.

Embedded Systems: Compatible with a wide range of microcontrollers and development boards.

Advantages:

High Picture Quality: Sharp and clear display with a resolution of 320x320.

Wide Viewing Angle: Ensures good visibility from different angles.

Flexible Interface Options: Supports both parallel and serial interfaces, making it versatile for different applications.

Environmental Compliance: Meets RoHS standards, ensuring it is environmentally friendly.

Pin Configuration and Interface:

The module supports multiple interface options, allowing it to be easily integrated into various systems. The specific pin configuration will depend on the interface mode selected (parallel or serial).

Development Support:

The module is compatible with a wide range of MCU platforms, making it easy to integrate into existing projects. It is particularly well-suited for use with popular development boards like Arduino, Raspberry Pi, and STM32.

Conclusion:

The TFT-H027A01HQINV4N40 is a versatile and high-quality TFT LCD module suitable for a wide range of applications. Its support for multiple interfaces and compatibility with various MCU platforms make it an excellent choice for developers looking for a reliable display solution.

Customized Ribbon Cables/Flexible Printed Circuits (FPC):

Tailor Your Cables To Perfection By Adjusting Their Length, Position, And Pin Arrangements, Or Adding Other Connectors. Obtain A Precisely Designed Cable Solution To Streamline And Enhance The Safety Of Your Connections

Touchscreen Add-On Components:

Enhance Your User Experience With Capacitive Or Resistive Touchscreen Technology. We Can Adjust The Glass Thickness Or Shape Of The Touchscreen To Ensure A Perfect Fit For Your Design.

Interface Customization:

Choose From Various Interface Options Or Consult With Our Experts To Select The Options That Best Suit Your Project. We Can Integrate HI,USB, SPI, VGA, And Other Interfaces Into Your Display To Achieve Your Design Goals.

Cover Glass:

Equip Your Display With Custom-Cut Cover Glass To Improve Durability. Choose From Various Thicknesses Of Cover Glass And Undergo Optical Bonding To Prevent Moisture And Debris.

Quality Standards

At HOTLCD Display We Strive Every Day To Provide Our Customers With The Highest Quality Products. This Means Quality, Engineering, And Manufacturing Teams Are Aligned To Exceed Your Expectations.

Our Customers Should Expect Their Products To Meet Or Exceed The Following Standards:

All Products

Reliability Testing Customers Can Expect All Production Parts To Meet Or Exceed Operational Requirements Over Temperature, Humidity, And Vibration.
Glass Cleanliness Customers Can Expect Glass To Be Protected By Liners And Presented Mindful Of Cleanliness Standards. This Means Glass Will Be Clean Of Contaminants, Fingerprints, And Other Foreign Material.
Bezel Appearance Bezels Will Be Uniformly Painted Free Of Foreign Materials And Distracting Cosmetic Blemishes. Our Standards Maintain A Clean Scratch-Free Surface.
PCB Appearance PCB’s Are Delivered With Long-Term Reliability In Mind. Finishes Are Free Of Bubbles, Foreign Contaminants, And Meet All UL Fire Requirements. PCB Materials Will Always Be Delivered Within Industry Norms. PCB Edges Will Be Cleanly Cut And Void Of Burrs.
Soldering Soldering Of All Leaded And SMT Components Is Consistent In Providing The Mechanical Security And Electrical Connectivity.
Consistency Our Manufacturing And Inspection Processes Ensure Product Consistency From Lot To Lot. This Means Orders Processed Over The Years Will Continually Meet Your Expectations. We Do This By Exacting Manufacturing Specifications, With Attention To Detail In Our Processes, And By Comparing To The Golden Units.
Product Integrity Quality In Product Manufacturing Ensures Integrity In Construction. Customers Can Expect Tight Assembly Without Worry Of Loose Parts Or Missing Material. Our Products Will Meet All Environmental Expectations Including Temp, Humidity, & Vibration Conditions.
Glass Color While Normal Variations Of Glass Color May Occur (Due To Manufacturing Tolerances), Hotdisplay Display Maintains Color Compliance Per Internal Approved Color Charts. These Charts Are Maintained To Ensure Any Minor Glass Deviations Are Identified And Corrected As Needed.
ESD Protection & Safety All Devices Are Designed And Handled In Consideration Of ESD Protection. This Includes ESD-SAFE Packaging Within Anti-Static Bags, Wraps, And Trays. Customers Are Reminded To Always Follow ESD Safety To Best Protect The Devices.
