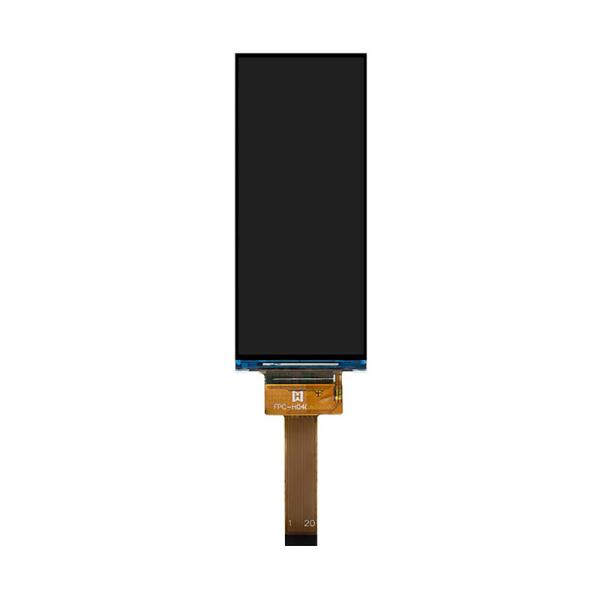

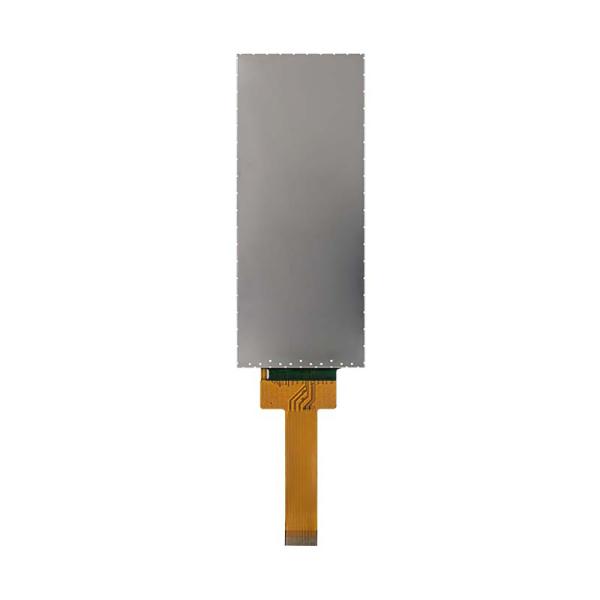

4 inch IPS 400x960 MIPI DSI TFT LCD display ST7701S Android

Key Features:

▶ Model: TFT-H040A13ZDIST6N20

▶ Type: TFT vertical screen

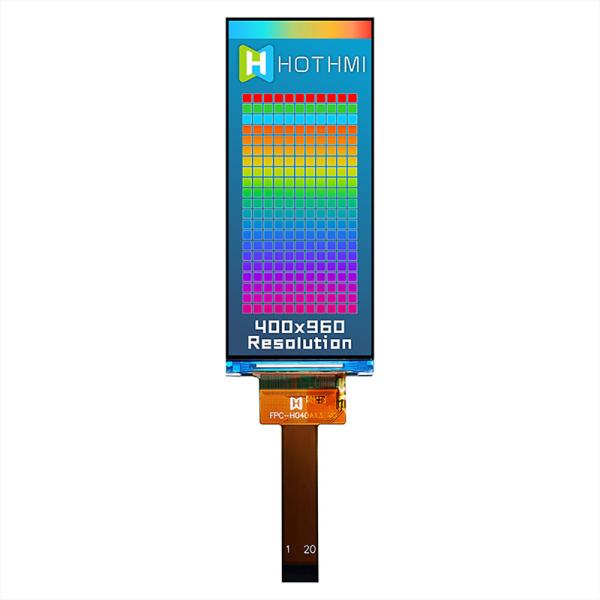

▶ Display pixels: 400x960 Px

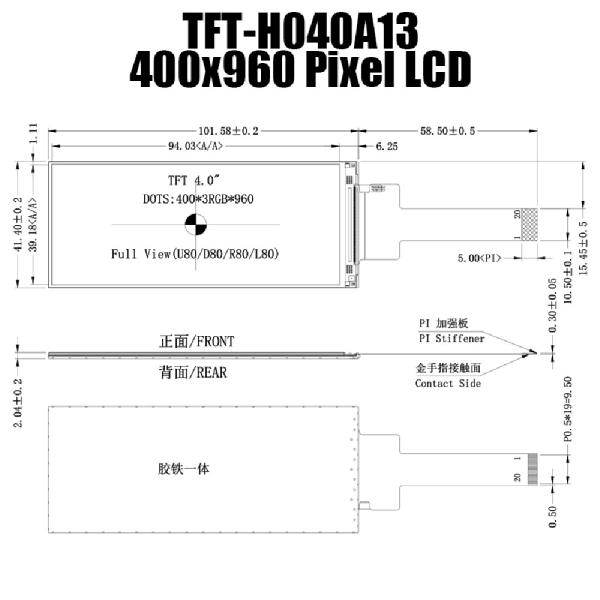

▶ Overall dimensions (mm): 41.4x101.58x2.04

▶ Display inches: 4.0"

▶ Effective size (mm): 94.03x39.18

▶ Application: Android motherboard/RK motherboard

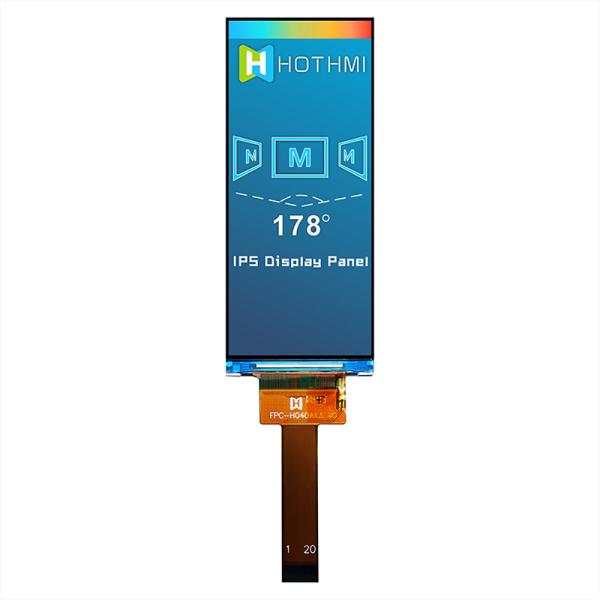

▶ Viewing angle: IPS full view

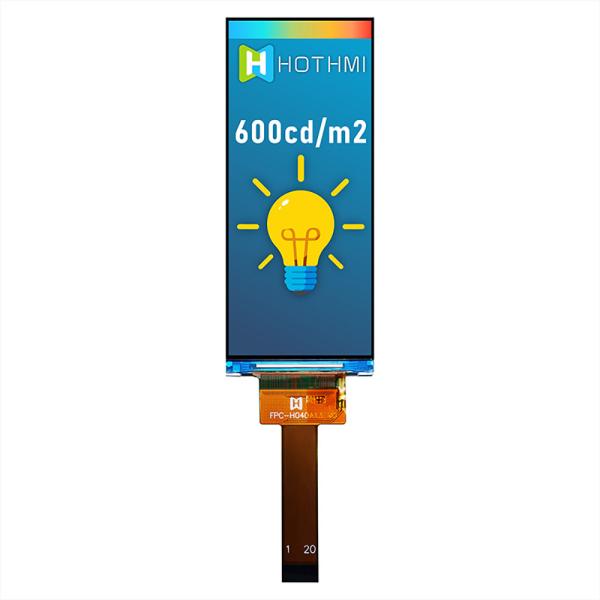

▶ Brightness: 600cd/M²

▶ Pin: FPC-20PIN

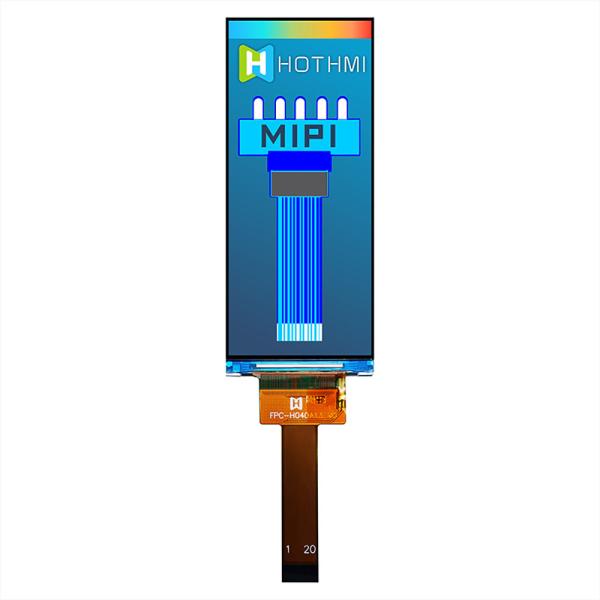

▶ Interface: MIPI

▶ Special instructions: Anti-static ESD 8KV

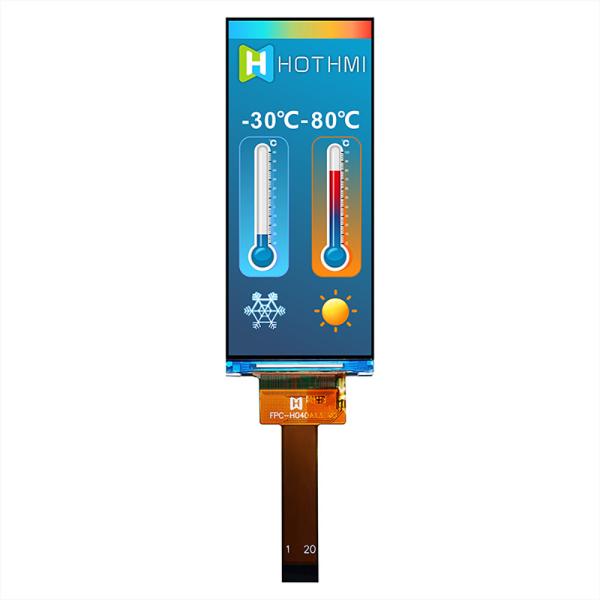

▶ Working temperature: -30~80℃

▶ Power supply voltage: 3.3V

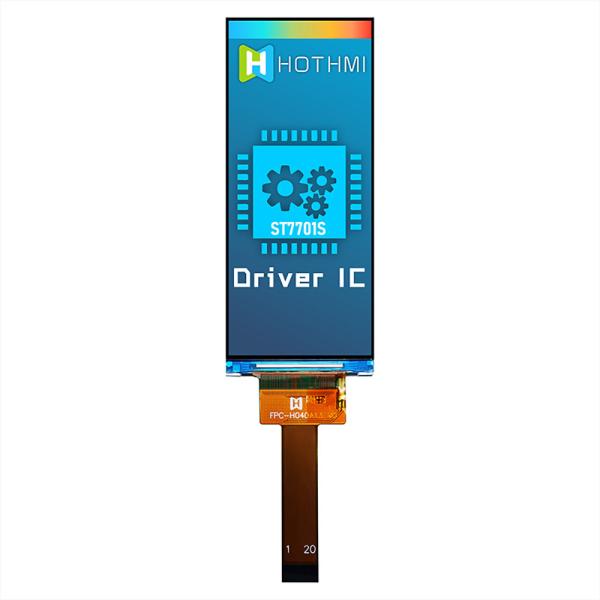

▶ Driver chip: ST7701S

TFT-H040A13ZDIST6N20 | 4.0" IPS MIPI-DSI TFT LCD display | 400x960 resolution | MIPI DSI high-speed interface | Optional resistive/capacitive screen

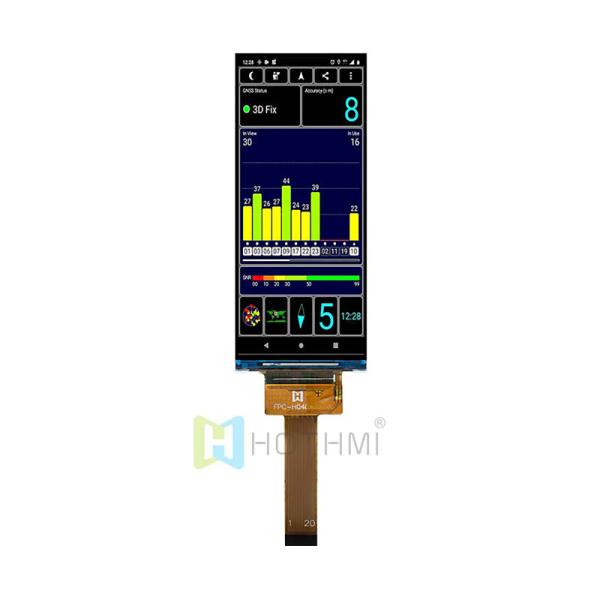

This 4.0" IPS MIPI-DSI TFT LCD display has a high resolution of 480x854 pixels and has built-in EMI shielding. The TFT features a MIPI interface which provides additional benefits such as high-speed data transfer rates, lower EMI and reduced wiring Complexity. Also included is a high-brightness LED backlight with a typical brightness level of 600 cd/m2. Visible in sunlight, this monitor offers stunning clarity, superior color reproduction, and better performance thanks to the IPS technology built into this LCD monitor. Excellent image consistency and high contrast across all viewing angles.

While this transmissive LCD does not include a touch screen, its impressive quality and 3.3V power supply make it an excellent choice for projects that require high-end visual output but without touch screen functionality. This TFT display is powered by the built-in ST7701S driver IC and is compatible with Android motherboards/RK motherboards, providing excellent performance and reliability. This driver optimizes the monitor's functionality, ensuring smooth operation and accurate rendering of images and graphics. The LCD uses FFC (Flexible Flat Cable) connectivity to ensure easy electrical connection. Our monitors are RoHS compliant and adhere to strict environmental and safety standards

Typical Applications:

Industrial Instruments: Used in devices requiring high-resolution displays.

Smart Devices: Ideal for wearable devices, handheld gadgets, and IoT devices.

Embedded Systems: Compatible with a wide range of microcontrollers and development boards.

Advantages:

High Picture Quality: Sharp and clear display with a resolution of 320x320.

Wide Viewing Angle: Ensures good visibility from different angles.

Flexible Interface Options: Supports both parallel and serial interfaces, making it versatile for different applications.

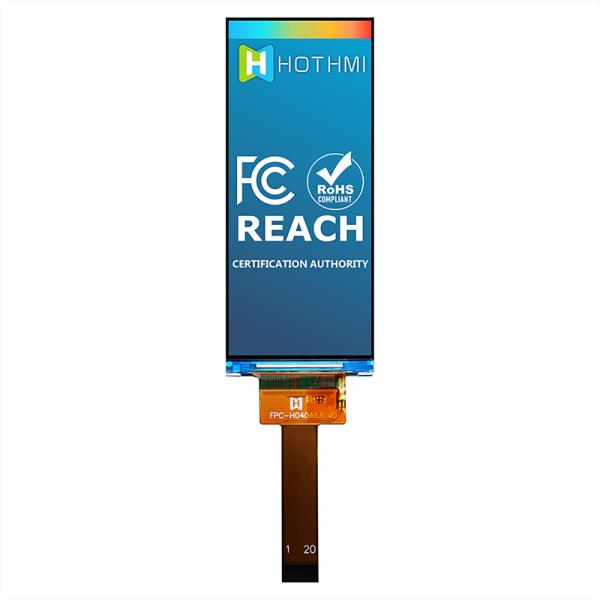

Environmental Compliance: Meets RoHS standards, ensuring it is environmentally friendly.

Pin Configuration and Interface:

The module supports multiple interface options, allowing it to be easily integrated into various systems. The specific pin configuration will depend on the interface mode selected (parallel or serial).

Development Support:

The module is compatible with a wide range of MCU platforms, making it easy to integrate into existing projects. It is particularly well-suited for use with popular development boards like Arduino, Raspberry Pi, and STM32.

Conclusion:

The TFT-H027A01HQINV4N40 is a versatile and high-quality TFT LCD module suitable for a wide range of applications. Its support for multiple interfaces and compatibility with various MCU platforms make it an excellent choice for developers looking for a reliable display solution.
