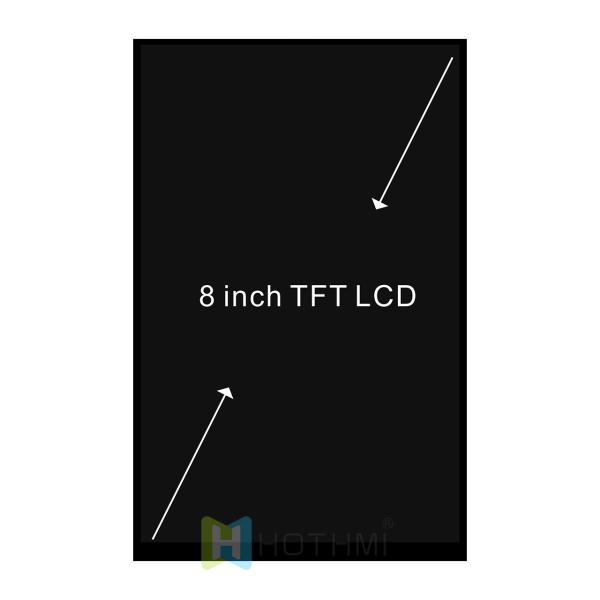

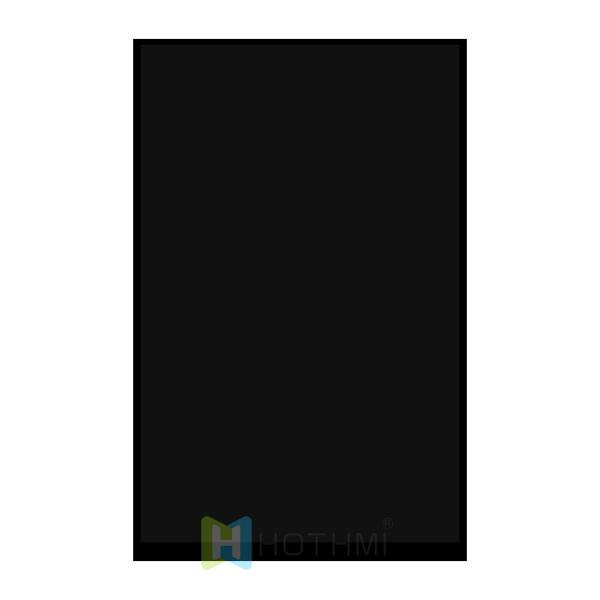

8.0inch LVDS IPS 800x1280 high brightness IPS TFT LCD display Module/NV3051F1/sunlight readable Linux

Key Features:

▶ Model: TFT-H080A6HDINV6N40

▶ Type: TFT vertical screen

▶ Display pixel: 800x1280

▶ Dimensions (mm): 114.70x184.2x2.65

▶ Display inch: 8.0"

▶ AA size (mm): 107.64x172.22

▶ Application: Industrial Control Computer

▶ Perspective: IPS

▶ Brightness: 600cd/m2

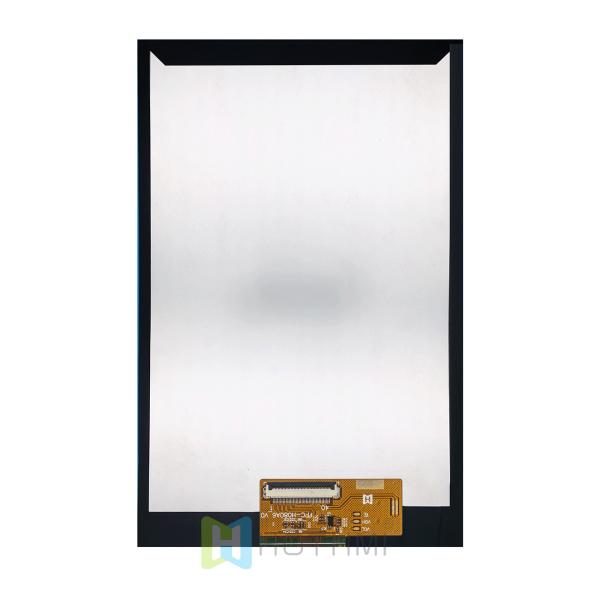

▶ PIN:FPC-40PIN

▶ Interface: LVDS

▶ Special note: Anti static ESD 8KV

▶ Working temperature: -20~70 ℃

▶ Supply voltage: 3.3V

▶ Driver chip: NV3051F1

TFT-H080A6HDINV6N40 | 8.0 "IPS LCD | 800x1280 pixel screen | EMI shielding | LVDS connector | 40 pin FFC connection | readable under sunlight | IPS full view | optional resistive/capacitive touch screen

TFT-H080A6HDINV6N40 is an excellent 8.0-inch LCD display that integrates advanced technology to meet the needs of multiple fields. Adopting IPS technology and 800x1280 pixel resolution, this display screen provides clear and high-quality images, and effectively reduces electromagnetic radiation through EMI shielding technology to ensure the stability of the display effect.

In terms of connectivity, LVDS connectors and 40 pin FFC connections provide flexibility, making them suitable for various application scenarios. Designed for outdoor use, high brightness ensures clear visibility even in strong sunlight. IPS full view technology allows viewers to enjoy consistent images from almost any angle.

The built-in driver IC and optimized driver program further enhance performance and reliability, ensuring smooth operation of the display and accurate presentation of images and graphics. Compliance with RoHS standards indicates that the product focuses on environmental and safety standards and pursues sustainable development.

TFT-H080A6HDINV6N40 is widely used in the field of medical equipment, such as monitors and oxygen machines, as well as industrial control systems. Of particular note is its capacitive touch screen function, which further expands its application areas and provides users with more flexible interactive choices. Overall, this display screen is a reliable and high-performance display solution in the industrial and medical fields due to its excellent technology and wide applicability

Typical Applications:

Industrial Instruments: Used in devices requiring high-resolution displays.

Smart Devices: Ideal for wearable devices, handheld gadgets, and IoT devices.

Embedded Systems: Compatible with a wide range of microcontrollers and development boards.

Advantages:

High Picture Quality: Sharp and clear display with a resolution of 320x320.

Wide Viewing Angle: Ensures good visibility from different angles.

Flexible Interface Options: Supports both parallel and serial interfaces, making it versatile for different applications.

Environmental Compliance: Meets RoHS standards, ensuring it is environmentally friendly.

Pin Configuration and Interface:

The module supports multiple interface options, allowing it to be easily integrated into various systems. The specific pin configuration will depend on the interface mode selected (parallel or serial).

Development Support:

The module is compatible with a wide range of MCU platforms, making it easy to integrate into existing projects. It is particularly well-suited for use with popular development boards like Arduino, Raspberry Pi, and STM32.

Conclusion:

The TFT-H027A01HQINV4N40 is a versatile and high-quality TFT LCD module suitable for a wide range of applications. Its support for multiple interfaces and compatibility with various MCU platforms make it an excellent choice for developers looking for a reliable display solution.
