Specifications
Brand Name :
Ellison
Model Number :
RCGF 24-24-8
Certification :
CE/ BV / ISO
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
Negotiated
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
6 sets per month
Delivery Time :
50 working days
Packaging Details :
Standard export wooden case or pallet package
Processing type :
Glass bottle filling machine
Filling temperature :
Hot temperature
Filling method :
Atmospheric pressure
Pump :
CNP pump
Filling bottle :
Glass bottle
Capping type :
Twist off cap
HS code :
8422301090
Option part :
Central lubrication system
Description

Flavor Milk Drink Glass Bottle Filling And Capping Labeling Packiong Machine​


DOWNLOAD here for visiting video link in Youtube.

Video link in youtube.pdf

General information

MaterialShapeFilling volumeFilling level
(mm)		Neck type
Glass BottleSquare or Round
Bottle		100-2000mlDistance from bottle neck
According request		As request
Adjustable specifications of the bottle typeMiddle Mould Base Bottle diameter ≤105mm Bottle Height≤335mm
Customers need to buy additional change-over parts for the different bottles.
If using square bottles, then bottle separating system will be added.
Juice PreparationFruit , Concentrate, Powder mixing, Pulp size≤15mm .....
Container Label & Control ModePackaging systemPalletizing system

Hot Melt Roll-Fed
PVC Shrink Label
Full Label/ Half Label
Manual / Automatic		Packing systemMin, Spec.Manual
Low position gantry palletizer
Robot Palletizer
High position gantry palletizer
Single Arm Palletizer
Manual Palletizer
Manual
Film shrinker
Wrap Around packe
Robert Packing Machine		1*2
2*3
3*4
4*6
3*5
User Ambient Conditions:Temperature:10~40ºC;Humidity:No dew
User Electrical Supply SpecificationVoltage:380V±5%, 3phase; Frequency:50HZ±1%


Features

1. This machine operates easily, with compact structure, perfect control system and high level of automation.
2. The filling process of different types of bottles can be reached only by changing the star-wheel
3. The parts contacting with product is made of quality SUS, anti-corrosive, and easy to clean.
4. By adopting high speed filling valve, the liquid level is precise and no waste is to increase. That guarantees the demand of modern filling technology.
5. The capping head adopts constant torque magnetic device to guarantee capping quality, without any damage to the cap.
6 . This machine has a highly efficient cap arranging system, perfect cap feeding and protection device.
7 . By adopting overload protection system, it can ensure the protection of safety of the operator and equipment.
8 . The operating system bears the function of production speed control, cap-shortage checking, production suspension when bottles-blocked, and counting of outputs.
9. The electric equipment and pneumatic parts are of brand name of the world.

Specifications

ModelDCGF14-12-5DCGF16-16-6DCGF18-18-6DCGF24-24-8
Production capacity(b/h)2000350050007000
Suitable bottle shapeCircular or Square
Bottle diameter(mm)Φ50-Φ95
Bottle height(mm)150-310
Washing mediumAseptic Water
Total power(kw)33.545.5
Weight(kg)2200280030004500
Overall dimensions(mm)2050*1550*22002400*1750*22002550*1850*22003000*2150*2200

ModelDCGF32-32-10DCGF40-40-12DCGF50-50-15DCGF60-60-15
Production capacity(b/h)10000150002000024000
Suitable bottle shapeCircular or Square
Bottle diameter(mm)Φ50-Φ95
Bottle height(mm)150-310
Washing mediumAseptic Water
Total power(kw)7.5111520
Weight(kg)4500600090001500020000
Overall dimensions(mm)3000*2150*22004200*2700*24004700*3200*24006500*3350*24007200*3650*2600


Our service
Before Sales
1.Answer your any question on us within 24 hours.
2.Supply all information you required.
3.Machines video for reference
4.Welcome to visit factory

On Sales
1.Update production progress each week
2.Sending machines pictures on production
3.Machines testing running over 8 hours, and sending testing videos

After Sales
1.engineer arranged to install machines
2.Spare Parts provided
3.After sales hotline: 0086 13584426100

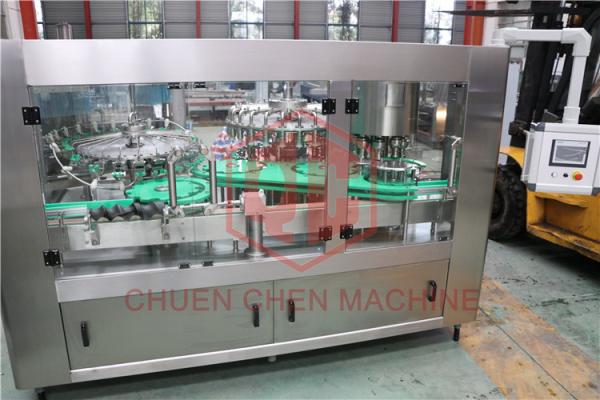

Detailed photo for ref
