1500BPH Plastic Bottle Rinsing Water Filling And Capping Machine​

Video Link in Youtube: Please go to download: Video link in youtube.pdf

Video link

Patameter

Automatic capping machine connects with transporter. Bottle is transported to sealing machine by conveyer belt, after sealed, passed by medium stand, transported to capping machine by conveyer belt, automatic cap-dropping equipment drops cap very well to seal cap. After sealing, conveyor belt puts out bottle and bottles are packed in a box

Rinsing Machine

(1). Rinsing Capacity 2000bottles / hour
(2). Fitting Bottle Size 200, 250, 350, 500, 650, 750, 1000 1250 1500ML
(3). Running Method Continuous Gyration Running
(4). Number of Rinsing Position 12 Pieces
(5). Power of the Machine 1.5 kW
(6). Overall Weight of the Machine 700kg
(7). Overall Dimensions 1400× 1200× 1800mm

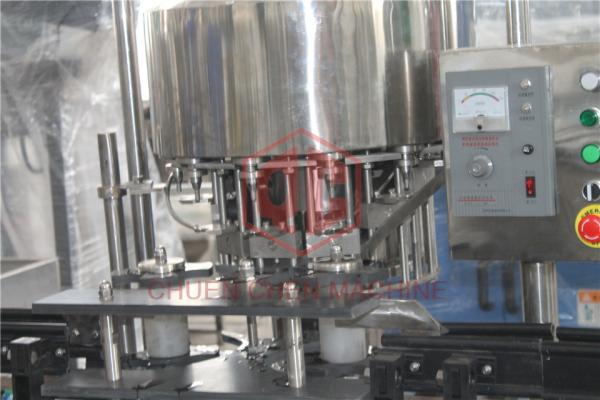

Filling Machine

This machine is ideal auto-filling device at present
(1). Range of bottle volume 200, 250, 350, 500, 650, 750, 1000ml PET and Glass Bottle
(2). Range of bottle size
A. Diameter of bottle 50-90mm
B. Height of bottle 200-330mm
C. Inner-diameter of bottle ≥ 17mm

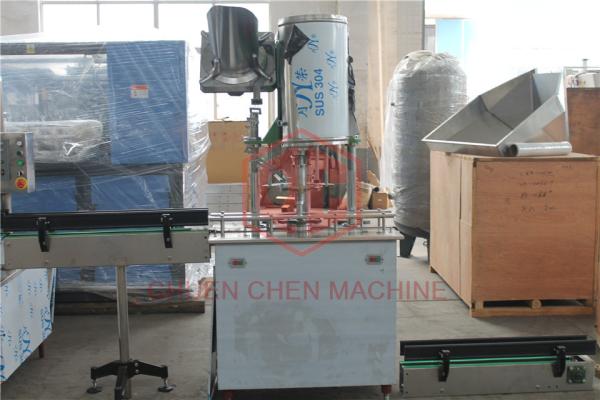

Capping Machine

Capacity: 1500-2000bottles / hour
Power of the main motor 1.2Kw
Overall dimension 920X800X1940mm
Total weight: 500Kg

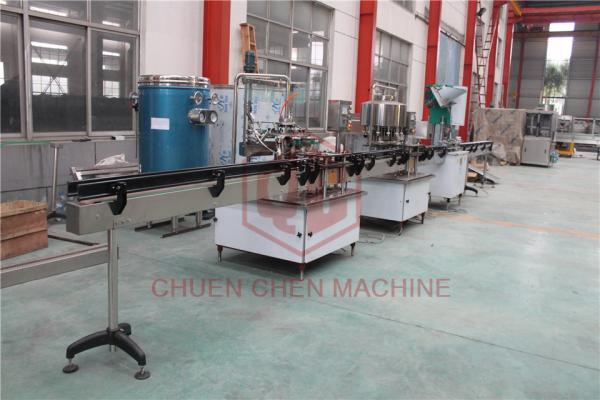

Production line

1)water purification system
Source water tank →Source water pump→ Quartz sand filter→ Active carbon filter→ Ion soften machine→ Fine filter →Reverse Osmosis → Ozone sterilizer → pure water tank

2)Bottle filling & packing system
Pure water tank→Bottle blower→Air conveyor →Washing, filling & capping 3-in-1→ Light check → Full-automatic labeling machine → Ink jet machine →Full automatic PE film packing machine→ warehouse

3).Bottle making system
PET preform→Autoloader→reheater →molding→ bottles

Click here for inquiry

Contact person: Vickie Sun

MOB (whatsapp/wechat): 0086 13584426100

Email: Sunpiu2012@gmail.com

Skype: vickiesunqiu

Service

1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.

2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
