5 Gallon PET Bottle Blow Molding Machine Injection Type For Drinking Water Milk
5 Gallon PET Bottle Blow Molding Machine Injection Type For Drinking Water Milk
5 Gallon PET Bottle Blow Molding Machine Injection Type For Drinking Water Milk
5 Gallon PET Bottle Blow Molding Machine Injection Type For Drinking Water Milk
5 Gallon PET Bottle Blow Molding Machine Injection Type For Drinking Water Milk
5 Gallon PET Bottle Blow Molding Machine Injection Type For Drinking Water Milk
5 Gallon PET Bottle Blow Molding Machine Injection Type For Drinking Water Milk
5 Gallon PET Bottle Blow Molding Machine Injection Type For Drinking Water Milk
5 Gallon PET Bottle Blow Molding Machine Injection Type For Drinking Water Milk
5 Gallon PET Bottle Blow Molding Machine Injection Type For Drinking Water Milk
Specifications
Brand Name :
Ellison
Model Number :
ZG
Certification :
CE/ BV / ISO
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
Negotiated
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10 sets per month
Delivery Time :
45 days
Packaging Details :
Standard export wooden case and pallet
Product :
Blowing machine
Bottle type :
within 2000ml
Bottle mould :
Two cavity, four cavity, six cavity
Bottle shape :
Freely design
Preform heating :
By heating lamp
Driven type :
(half) servo motor
Heating lamp :
Ruby material
Application :
Carbonated drink bottle making machine
Description

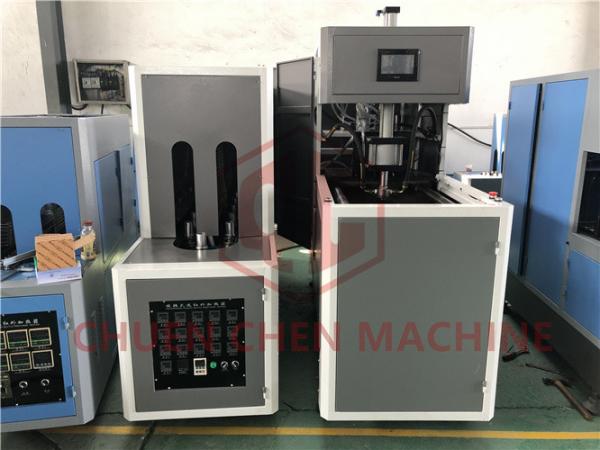

100BPH 5 Gallon PET Bottle Blow Molding Machine Semi-automatic Type

Description

PET blow molding machine is especially used to produce 3 gallon and 5 gallon bottles and is widely used to produce any shape of plastic from PET with neck finishes from 15mm-200mm.


● Perfect function with economic investment.
● Small size and compact construction with no space waste.
● Easy to operate and maintain ,operation by one person .
● Saving power and uneasy to worn out ,Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.
● We can provide performs and various bottle& cap molds for 5 gallon and 3gallon bottles to meet customer’s requirements.

Parameter

Container Product material PET
Volume

20L(5Gallon)

30L
Actual output 60-90PCS/H
Preform length 15mm-460mm
Preform inner diameter φ5mm-200mm
Moulding

Max.mould plate Dimenstion

(L x W)

 420x500mm
Max.mould thickness 40mm
Clamping force 330KN
Mould opening stroke 380mm
Machine size and weight Main machine (L x W x H) 218*77*196cm
Main machine weight 1000Kg
Heater (L x W x H) 237*68*165cm
Heater weight 380Kg
Power 40kw
Machine list

Items Machine description Model Size(mm) Qty.
1 1cavity blow molding machine 5 gallon bottle machine 2180*770*1960 1set
Preform heater 2370*680*1650 1set
2 HP Air Compressor 1.6m3/min 30Kg 1880*850*1050 1set
3 Air dryer 2.0m3/min 30Kg 1050*650*1100 1set
4 Air Filters 2.0m3/min 30Kg 750*350*350 2sets
5 Water chiller 3HP 850*560*870 1set
6 Air tank 0.6m3/min 30kg 1200*1100*1650 1set
7 Blow mould 5gallon (20L) 1cavity 1set

Installation and commissioning

Attachment

Machine voltage: 380V 3phase 50HZ / Customize

Payment method: 30% deposit; 70% before shipment

Shipping:

Shipping port: Shanghai port

Container loading: 20GP or LCL

Delivery time: 30-35 days

Machine inspection:

- Take video for inspection, pls see below video link for ref if you can accept;

How to install bottle mould:

https://www.youtube.com/watch?v=Qi9F6zYIBYE

How to adjust bottle mould:

https://www.youtube.com/watch?v=BIVkicV0TX8

How to centering?

https://www.youtube.com/watch?v=wJt3TJfg5DM

- Client can come to our factory for inspection in person

Installation and Commissioning

Technician: 1 technician

Salary: USD100/day/person

Duration: around 7-10 days

Extra issue: sample preform, water and electricity shall be ready before technician arrives;

Extra expense: client should be responsible for the round-way flight tickets, local transportation, local hotel and eating;

Contact us

Contact person: Vickie Sun

MOB (whatsapp / wechat): 0086 13584426100

Email: sunpiu2012@gmail.com

Skype: vickiesunqiu
