2000BPH Semi Automatic PET Bottle Blow Molding Machine For Water Production Line​

Description

PET blow molding machine is especially used to produce water bottles (100ml - 2000ml) and is widely used to produce any shape of plastic from PET with neck finishes from 15mm-200mm.

● Perfect function with economic investment.
● Small size and compact construction with no space waste.
● Easy to operate and maintain ,operation by one person .
● Saving power and uneasy to worn out ,Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.
● We can provide performs and various bottle& cap molds for 5 gallon and 3gallon bottles to meet customer’s requirements.

Features

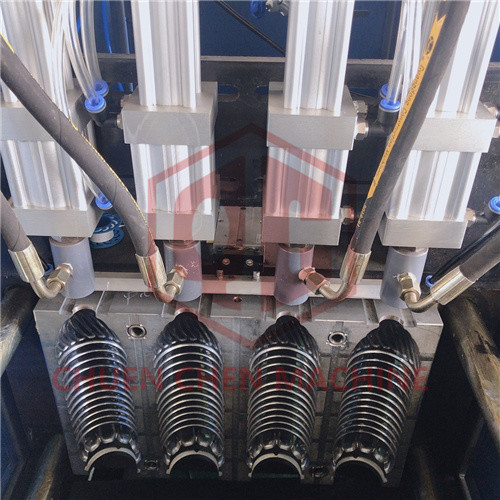

1. Closing structure is composed of fixed mould plate, moving mould plate, cylinder, and double bending arms and connecting poles. The air source is controlled by the helping of the connecting poles and double bending arms; the plates open and close thereby.

2. The sealing stretching is controlled respectively by two left/right cylinders independently, conducting left and right stretching and sealing. It is also controlled by two solenoid valves of two position and five routes. They can adjust the air blowing retention time of the two cylinders respectively.

3. The air source comes from the second level filter first, and then goes to two big size two-position-three-routes solenoid valves to blow high-pressure air to make bottles from perform.

4. The operation screen is installed with microcomputer controller. It has LCD displaying function, manual or automatic functions switches. They control the time of opening and closing of mould, sealing stretching and blowing. Easy and convenient to operate.

Parameter

Contact person: Vickie Sun

MOB (whatsapp / wechat): 0086 13584426100

Email: sunpiu2012@gmail.com

Skype: vickiesunqiu

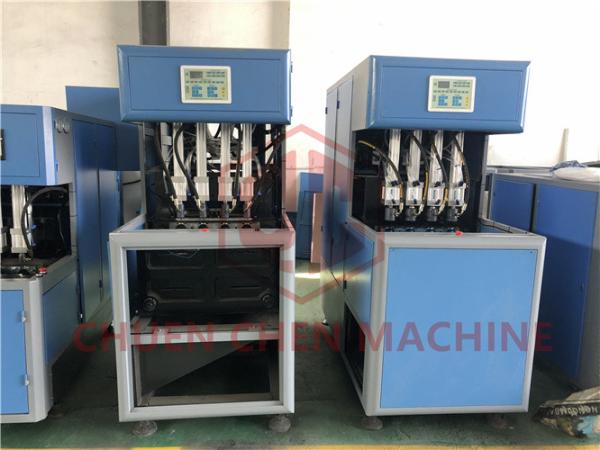

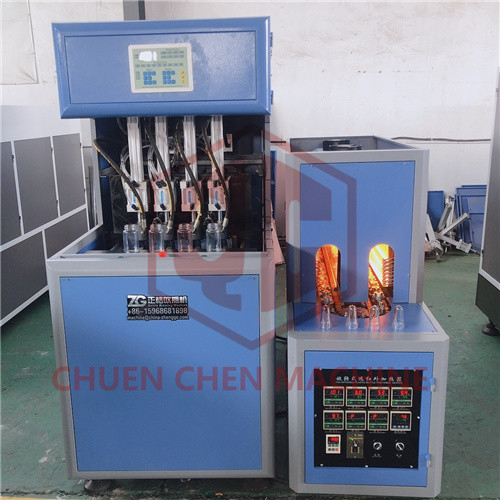

More photos for ref
