Specifications
Brand Name :
Ellison
Model Number :
200B
Certification :
CE/ BV / ISO
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
Negotiated
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
15 sets per month
Delivery Time :
50 days
Packaging Details :
Sea worthy package
Processing type :
Linear type PE film wrapping machine
Shrinking material :
PE / PVC / POF
Heating type :
Electric heating
Heating power :
40kw
Film thickness :
0.8-0.9mm
Packing speed :
25-30 packs per minute
Driven type :
Servo motor
Product :
PET bottle, glass bottle, metal can
Description

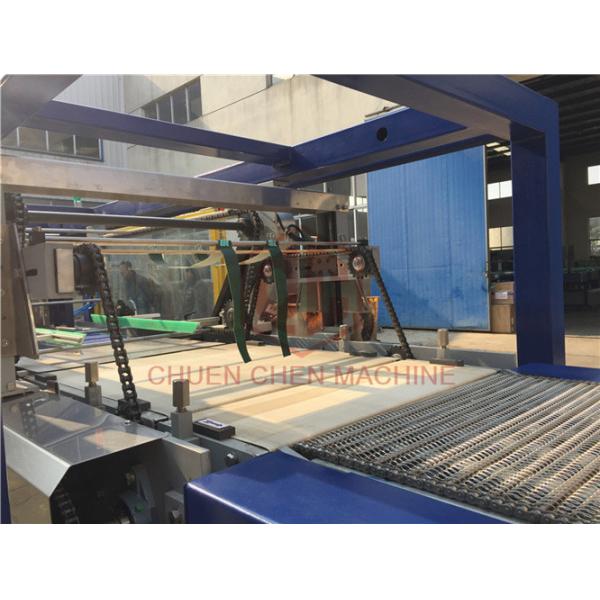

Linear Type Water Packaging Machine PE Shrink Wrapping Equipment Servo motor​

Description

1 > Big screen, manipulation interface LCD Chinese and English display;

2 > Pneumatic expand support membrane roller, membrane change is quick, membrane change just need two minute;

3 > Membrane tension transport, even and plat, film cutting controlling is precision, cut is tidy;

4 > Servo controlling technology can keep each fracture precision in-phase, transmission is reliably;

5 > Heating case fracture is reasonable,heat insulation and warm keeping,temperature controlling precision is highly.

6 > Mechanism drive part adopt to heating treatment stainless steel or medium carbon steel ect material; surface spray coating quality is fine; whole machine anti-rust character is very highly;

7 > While electricity cut, set manpower rotary conveyor belt device, easy to move heating tunnel inside product outside;

Applied to container type

Round glass bottle, PET bottle, can

Outsider diameter is 60-90 mm

Height is 120-300mm

Note: while exchange related spare parts, applied arrange is more wider

Package material requirement

Material: PE; density: 0.91~0.92 g/cm3

thickness: 80~90um

max membrane roller diameter: 500mm

membrane roller plate core diameter: Φ76～Φ80mm

stretch tension: longitudinal, lateral accord with GB13022 criterion;

heating shrink ratio: longitudinal, lateral accord with GB/T13519-92criterion, 70±5 ％, 20±5 ％

shrinkage ratio: longitudinal, lateral accord with GB/T13519-92 criterion;

fracture tension: longitudinal, lateral accord with GB13022 criterion;

thickness deviation: accord with GB6672 criterion;

Configuration

No Name Brand
1 Touch screen Kinco
2

Servo electric motor

 Lenze
3 Servo controller Lenze
4

Frequency converter

 Dong yuan
5 motor /
7 Sensor Autonics
8

Pneumatic components

 AirTac
9 Electric components Schneider
10 Transmission bearing SKF or similar brand
11

Pneumatic shaft/axis

 /
12 Conveyor belt /
13 Conveyor chain(Engineering plastics) /
14 Heating tube /
15

Stainless steel conveyor chain in Oven

9.24M×500mm

 /

Technical parameter

Facility overall size L10600 * W1560 * H2200 mm
Packaging article max size L420 * W280 * H350 mm
Shrinkage film material PE / PVC / POF
Shrink membrane thickness 80~90um
Per minute max capacity 30bag (can limitless speed adjust)
Power supply max load relied

Heating case 40kw/220v
Air pressure 0.4～0.7Mpa
