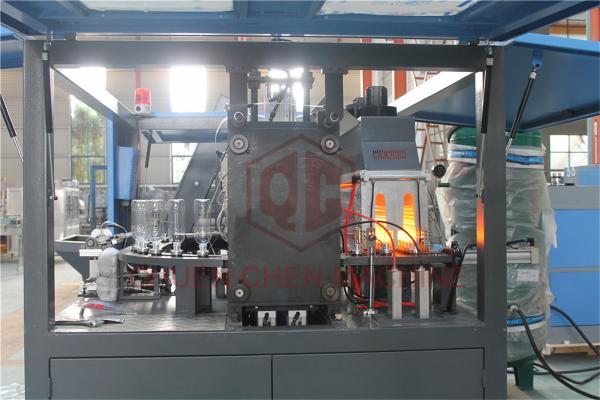

Industrial Stretch Blow Moulding Machine For Drinking Water Treatment Plant
Industrial Stretch Blow Moulding Machine For Drinking Water Treatment Plant
Industrial Stretch Blow Moulding Machine For Drinking Water Treatment Plant
Industrial Stretch Blow Moulding Machine For Drinking Water Treatment Plant
Industrial Stretch Blow Moulding Machine For Drinking Water Treatment Plant
Industrial Stretch Blow Moulding Machine For Drinking Water Treatment Plant
Industrial Stretch Blow Moulding Machine For Drinking Water Treatment Plant
Industrial Stretch Blow Moulding Machine For Drinking Water Treatment Plant
Industrial Stretch Blow Moulding Machine For Drinking Water Treatment Plant
Industrial Stretch Blow Moulding Machine For Drinking Water Treatment Plant
Specifications
Brand Name :
Ellison
Model Number :
ZG
Certification :
CE/ BV / ISO
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
Negotiated
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10 sets per month
Delivery Time :
45 days
Packaging Details :
Standard export wooden case and pallet
Product :
Bottle blowing machine
Bottle type :
within 2000ml
Bottle mould :
Two cavity, four cavity, six cavity
Bottle shape :
Freely design
Preform heating :
By heating lamp
Driven type :
PLC
Update function :
Servo motor
Application :
Water, food, cosmatic etc.
Description

High Clamping Force PET Bottle Blow Molding Machine For Drinking Water Bottle​​

Description

PET Bottle Blowing Machine(0.2-2L bottle) is suitable for producing PET plastic containers and bottles from 0.01-25L. It is widely used to produce the carbonated bottle, mineral water, carbonated drink bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.

Features

1). Automatic preform conveyer to save human cost.

2). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.

3). Introduce the FESTO air cylinder to avoid contamination and noise.

4). Strong clamping force with high pressure and double crank links to lock the mould.

5). Safereliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.

6). Ideal cooling system make the finished bottles without any flaws.

7). Low rejection rate: less than 0.2 percent.

Parameter

Model
Item
 ZG-2
ZG-4
ZG-6
Productivity
Depend on bottle design
1800-2000PCS/H
3200-4000PCS/H
4000-5500PCS/H
Product type
Volume
0.1-2.0L
0.1-2.0L
0.1-2.0L
Body diameter
≤100mm
≤100mm
≤100mm
Height
≤310mm
≤310mm
≤330mm
Neck diameter
≤38mm
≤38mm
≤38mm
Mold
Cavity
2
4
6
Mold thickness
240mm
240mm
240mm
Mold volume
260*240*370mm
510*240*360mm
640*240*360mm
Main machine power
Electrical source power
380V/220V 50/60HZ
380V/220V 50/60HZ
380V/220V 50/60HZ
3Phase
3Phase
3Phase
Rated power
25kw
49kw
73kw
Really use power
6.5kw
13kw
25kw
Air system
HP air compressor
1.6m³/min3.0Mpa
3.0m³/min3.0Mpa
6.0m³/min3.0Mpa
LP air compressor
1.0m³/min1.0Mpa
1.6m³/min1.0Mpa
2.0m³/min1.0Mpa
Air tank
0.6m³3.0Mpa
0.6m³3.0Mpa
1.0m³3.0Mpa
Air dryer
1.0m³/min3.0Mpa
2.0m³/min3.0Mpa
6.0m³/min3.0Mpa
Cooling water
Water Chiller
3HP
3HP
5HP
Machine
Size(L*W*H)
1900*1280*1930mm
1900*1860*1930mm
4100*1400*1800mm
Weight
2000kg
3200kg
3600kg
Preform unscrambler
Size(L*W*H)
2000*950*2480mm
2000*950*2480mm
2000*950*2480mm
Weight
250kg
250kg
250kg

How Can I Visit Your Factory?

A: Our factory location:Zhenbei Road, Leyu Town, Zhangjiagang City, Jiangsu Province, China.
Contact: MOB / Wechat / WhatsApp: 0086 13584426100 (Vickie Sun)
Nearest train station: Wuxi Station / Wuxi East Station
Nearest international airport: Shanghai Pudong International airport (PVG) / Shanghai Hongqiao International airport (SHA) / Wuxi Shuofang airport (if you are already in China)

Q: How to can appropriate offer?

A: Please inform us below conditions to get the appropriate offer quickly:

1, What kind of product you will produce? Water, juice, carbonated drink, beer, ketchup or another?

2, What is your production capacity per hour / per day / per month?

3, What is your bottle types and cap types? Glass bottle, PET bottle, Aluminum can or another? And How many bottle types that you have?

4, What is the final labeling and packing manner?

Contact us

Contact person: Vickie Sun

MOB (whatsapp / wechat): 0086 13584426100

Email: sunpiu2012@gmail.com

Skype: vickiesunqiu

More photos for ref

Industrial Stretch Blow Moulding Machine For Drinking Water Treatment PlantIndustrial Stretch Blow Moulding Machine For Drinking Water Treatment Plant
