Specifications
Brand Name :
Ellison
Model Number :
DCGF 24-24-8
Certification :
CE/ BV / ISO
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
Negotiated
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
6 sets per month
Delivery Time :
50 working days
Packaging Details :
Standard export wooden case or pallet package
Machine type :
CO2 liquid filling machine
Capacity :
6000 BPH
Filling range :
330ml-1500ml Plastic bottle
Cap type :
Plastic screw cap
Machine structure :
Monoblock 3 in 1 filling machine
Filling method :
Counter pressure filling
Other service :
Offer turn key project
HS code :
8422301090
Description

DCGF24-24-8 Soft Carbonated Drink Filling Machine / Soda Production Line

General infomation

Project name

Complete solution of carbonated energy drink filling line, including

- Carbonated drink washing-filling-capping machine

- Labeling machine

- Packing machine

Capacity6000 bottles per hour for 1000ml PET bottle
Bottle type500ml PET bottle
Cap typePlastic screw cap
Max/Min diameterNo limitation (the diameter must be the same)
Max/Min heightNo limitation
Filling liquidCarbonated energy drink
Filling methodCounter pressure
Labeling mannerOPP label (like the label of coca cola and sprite)
Date printerInk date printing
Packing mannerFilm shrink wrapping packing
Machine voltage380V 3phase 50HZ or customize
Payment method30% T/T deposit; 70% before shipment


Description

The mono-bloc machine is integrated with rinsing, filling and capping together;
The bottle enters into the rinsing part of three-in-one machine through air conveyor. The gripper installed on the rotary disk catches bottle and turns it over 180 degrees and makes the bottleneck face ground. In the special rinsing area, the nozzle on the gripper sprays water to rinse bottle in wall.

Machine list

ItemsMachine descriptionModelPowerSize(mm)Qty.
1Monoblock 3 in 1 washer-filler-capper machine with CIP connectorDCGF24-24-86.5kw4000*3000*25001set
Air conveyorFS-12.2m1set
Belt conveyorSYS-14m1set
Light checkerDJ-1500*200*10001pc
2Cap elevator/1.25kw650*650*24501set
3Option: warming tunnelPL-1310.05kw13000*2300*17501set
4Option: bottle dryerCG-10007.5kw*21100*670*17802sets
5Option: date printerVideojet121010w345*285*5411set
6OPP hot melt labeling machine for round bottle (Linear type)LOPP-1806.7kw4000*1500*20001set
7Automatic shrink packing machine

NCWD-200A
15packs/min

36kw12000*1200*20001set


Flow Chart

 Carbonated drink mixer
V
Air conveyor (bottle loading)>Washing-filling-capping machine<Cap elevator
V
OPP labeling machine<Option: bottle dryer<Option: warming tunnel<Light checker
V V
V>Option: bottle dryer>Date printer>Shrink wrapping machine

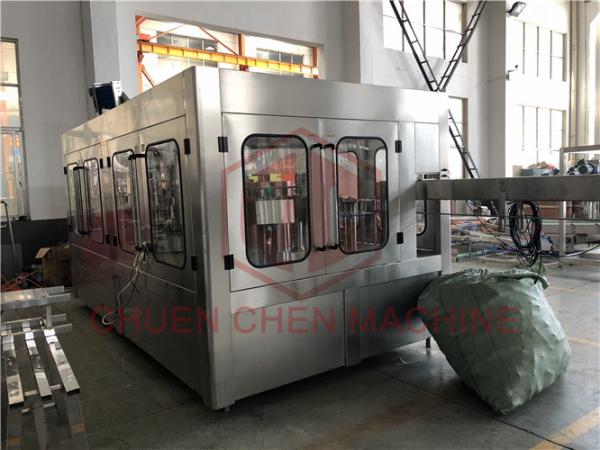

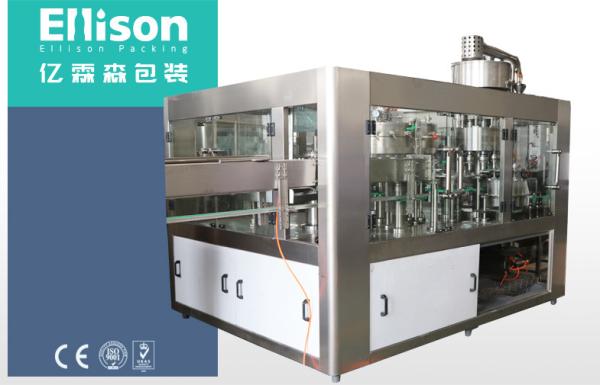

Detailed photo for ref

Rotary Type Carbonated Drink Filling Machine
Rotary Type Carbonated Drink Filling MachineRotary Type Carbonated Drink Filling MachineRotary Type Carbonated Drink Filling Machine
