5000BPH Carbonated Drink Filling Machine Backup Pressure Juice Bottling Line
5000BPH Carbonated Drink Filling Machine Backup Pressure Juice Bottling Line
5000BPH Carbonated Drink Filling Machine Backup Pressure Juice Bottling Line
5000BPH Carbonated Drink Filling Machine Backup Pressure Juice Bottling Line
5000BPH Carbonated Drink Filling Machine Backup Pressure Juice Bottling Line
5000BPH Carbonated Drink Filling Machine Backup Pressure Juice Bottling Line
5000BPH Carbonated Drink Filling Machine Backup Pressure Juice Bottling Line
5000BPH Carbonated Drink Filling Machine Backup Pressure Juice Bottling Line
Specifications
Brand Name :
Ellison
Model Number :
DCGF 18-18-6
Certification :
CE/ BV / ISO
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
Negotiated
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
6 sets per month
Delivery Time :
50 working days
Packaging Details :
Standard export wooden case or pallet package
Filling material :
Carbonation Coca Filling Machine
Filling temperature :
around 2 degrees Celsius
Filling method :
Backup pressure
Filling bottle :
Glass bottle
Capping type :
Aluminum screw cap
HS code :
8422301090
Option part :
Central lubrication system
Capacity :
5000BPH
Description

Complete Solution 5000BPH Carbonation Coca Filling Machine Glass Bottle​


Complete production line

Water treatment Process: Spring-raw water booster pump, mechanical filter, precision filter, active carbon filter, sodium exchanger, RO machine/ hollow fiber ultrafiltration device, Store tank, UV sterilizer, ozone generator and other equipment.
It can effectively get rid of muddy organic, iron, manganese and oxide, filter suspended substance, colloid, remained oxygen of micro-organism and some of height-metal ion in the water. This water treatment equipment can also reduce hardness of water to make it all specifications of the water quality fully meet the state fresh water standards, even that of standard of mineral water.
Carbonated coca mixer Drink mixer is designed and made for improving the proportion of water , syrup and carbon dioxide. It adopts foreign advanced technology -- static mixer ti lighten water layer, increase carbonizing time, assure mixing result and deoxying. It adopts high-quality water pump and SEIMENS electrical equipment and other parts to form complete automatic control system. It has coordinating action, beautiful appearance, convenient washing, high automatic level and other advantages. It is suitable for mixing all kinds of drink, such as soda water, cola and other soft drink.
Sleeve labeling machine This machine adopts exclusive-design multi-cutter, mining agencies combination of steel, smooth moves. The tools life is doubled. Simple center- guided positioning, more easily replaced specifications, make it easy for the operator to use.
Aircraft of the first belt bottles brushless DC motor driven, institutional design is easy maintenance. Main machine interface manipulation simple, using only one brand, stability practical. All types of motor equipped to regulate the EU level configuration, follow customer's demand to provide the European norms.
Carton packing machine 1) using for carton packing for beer , beverage , bottled water , medicament , food etc bottle ( cans ) production line.
2) Carton wrapping saves 1/5 cost than traditional packing type.
3) Adopt known hot melt equipment , easy for operation , durable.
4) Linear feeding bottles and feeding cardboard system , advanced electric collocation and technology.

Features

1. This machine operates easily, with compact structure, perfect control system and high level of automation.
2. The filling process of different types of bottles can be reached only by changing the star-wheel
3. The parts contacting with product is made of quality SUS, anti-corrosive, and easy to clean.
4. By adopting high speed filling valve, the liquid level is precise and no waste is to increase. That guarantees the demand of modern filling technology.
5. The capping head adopts constant torque magnetic device to guarantee capping quality, without any damage to the cap.
6 . This machine has a highly efficient cap arranging system, perfect cap feeding and protection device.
7 . By adopting overload protection system, it can ensure the protection of safety of the operator and equipment.
8 . The operating system bears the function of production speed control, cap-shortage checking, production suspension when bottles-blocked, and counting of outputs.
9. The electric equipment and pneumatic parts are of brand name of the world.

Specifications

Model DCGF14-12-5 DCGF16-16-6 DCGF18-18-6 DCGF24-24-8
Production capacity(b/h) 2000 3500 5000 7000
Suitable bottle shape Circular or Square
Bottle diameter(mm) Φ50-Φ95
Bottle height(mm) 150-310
Washing medium Aseptic Water
Total power(kw) 3 3.5 4 5.5
Weight(kg) 2200 2800 3000 4500
Overall dimensions(mm) 2050*1550*2200 2400*1750*2200 2550*1850*2200 3000*2150*2200

Our service


Before Sales
1.Answer your any question on us within 24 hours.
2.Supply all information you required.
3.Machines video for reference
4.Welcome to visit factory

On Sales
1.Update production progress each week
2.Sending machines pictures on production
3.Machines testing running over 8 hours, and sending testing videos

After Sales
1.engineer arranged to install machines
2.Spare Parts provided
3.After sales hotline: 0086 13584426100

FAQ

Q: How Can I Visit Your Factory?

A: Our factory location: Leyu Town, Zhangjiagang City, Jiangsu Province, China.
Contact: MOB / Wechat / WhatsApp: 0086 13584426100 (Vickie Sun)
Nearest train station: Wuxi Station / Wuxi East Station
Nearest international airport: Shanghai Pudong International airport (PVG) / Shanghai Hongqiao International airport (SHA) / Wuxi Shuofang airport (if you are already in China)

Q: How to can appropriate offer?

A: Please inform us below conditions to get the appropriate offer quickly:

1, What kind of product you will produce? Water, juice, carbonated drink, beer, ketchup or another?

2, What is your production capacity per hour / per day / per month?

3, What is your bottle types and cap types? Glass bottle, PET bottle, Aluminum can or another? And How many bottle types that you have?

4, What is the final labeling and packing manner?

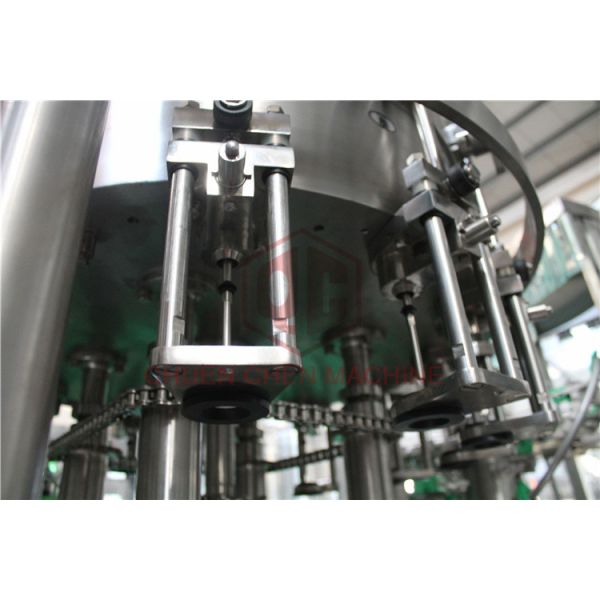

Detailed photo for ref

5000BPH Carbonated Drink Filling Machine Backup Pressure Juice Bottling Line5000BPH Carbonated Drink Filling Machine Backup Pressure Juice Bottling Line5000BPH Carbonated Drink Filling Machine Backup Pressure Juice Bottling Line
