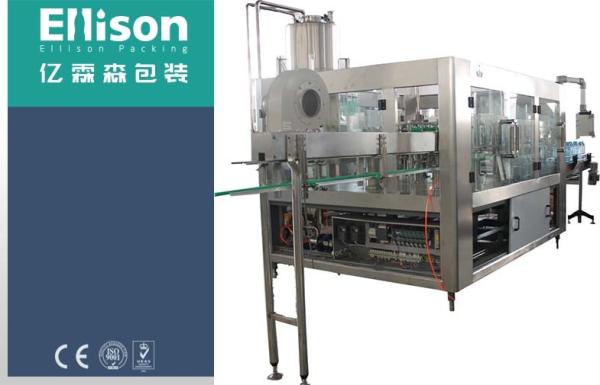

Piston Vacuum Milk Bottle Filling Machine Medium Size With Belt Conveyor
Piston Vacuum Milk Bottle Filling Machine Medium Size With Belt Conveyor
Piston Vacuum Milk Bottle Filling Machine Medium Size With Belt Conveyor
Piston Vacuum Milk Bottle Filling Machine Medium Size With Belt Conveyor
Piston Vacuum Milk Bottle Filling Machine Medium Size With Belt Conveyor
Piston Vacuum Milk Bottle Filling Machine Medium Size With Belt Conveyor
Piston Vacuum Milk Bottle Filling Machine Medium Size With Belt Conveyor
Piston Vacuum Milk Bottle Filling Machine Medium Size With Belt Conveyor
Piston Vacuum Milk Bottle Filling Machine Medium Size With Belt Conveyor
Piston Vacuum Milk Bottle Filling Machine Medium Size With Belt Conveyor
Specifications
Brand Name :
Ellison
Model Number :
CGF24-24-8
Certification :
CE/ BV / ISO
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
10 sets per month
Delivery Time :
30 working days
Packaging Details :
Wooden case or pallet package
Machine structure :
3 in 1 filling machine
Filling liquid :
Spring water
Capacity :
8000-10000BPH
Suitable bottle :
Square bottle
Filling range :
250ml-2000ml
Bottle delivery :
Air conveyor and belt conveyor
PLC/Touch screem :
Siemens
HS code :
8422301090
Description

Medium Size Square Bottle Water Filling Machine Automatic Type

General information

Machine type Automatic 3 in 1 Washing filling capping unit
Filling material Spring water
Production capacity 8000-10000BPH / Basing on the requirement
Filling range 330ml-2000ml
Bottle type Square bottles
Cap type Plastic screw caps
HS Code 8422301090
Power supply 380V 3phase 50/60HZ
Payment method 30% deposit; 70% before shipment
Engineer Engineers are available to be overseas for machine set up


Description

Nowadays the monoblock filling machine is becoming more and more popular due to its stable filling speed, precision filling level, high capacity, compact structure and less changeovers etc. The machines are designed basing on the requirements such as bottle type, cap type, production capacity etc. Different factorys will have different structures, but the working principles are the same. The monoblock filling machine has been the trend to replace the old type of filling machine (single washing machine, filling machine, capping machine) gradually.

Characteristics

Machine structure

New type: round corner, Arm control
Monoblock 3 in 1 washing - filling - capping unit
Material

Water touch parts are stainless steel 304 or 316L
All the bearing sets are made by stainless steel 304

All the parts are manufactured in more precise
Bushes are changed to imported brand which is free lubricate
Each unit features

Washing Part: 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
Filling Part: All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
Capping Part: No bottle no capping
Additional function

Install central lubrication system
Automatic lifting system for different height


Technical specification

Model CGF8-8-3 CGF12-12-4 CGF16-16-5 CGF18-18-6 CGF24-24-8

Capacity (@500ml bottle)

 2000BPH 3000-4000BPH 4000-6000BPH 6000-8000BPH 8000-12000BPH
Bottle type Round or square PET bottle
Bottle diameter 50-115 mm
Bottle height 160-320 mm
Air consumption 0.3-0.7Mpa
Air pressure 5-8bar
Washing medium Aseptic water
Pressure of washing >0.06Mpa <=0.2Mpa
Power (kw) 3 4.4 4.4 4.4 5.2
Weight (kg) 3000 3200 4000 4500 6500

Model CGF32-32-10 CGF40-40-12 CGF50-50-12 CGF60-60-15

Capacity

500ml

 13000-15000 16000-18000 20000-24000 25000
Bottle type PET Circular or square
Bottle diameter 50-115 mm
Bottle height 160-320 mm
Air consumption 0.3-0.7 Mpa
Air pressure 5-8bar
Washing medium Aseptic water
Pressure of washing >0.06Mpa <=0.2Mpa
Power (kw) 6.2 7.8 10 13
Weight (kg) 7500 8500 9000 9500


Electric configuration

1 Motor ABB / Swizerland
2 Electric protection switch Schneider / Germany
3 Circuit breaker Siemens / Germany
4 PLC Mitsubishi / Japan
5 Touch screen Siemens / Germany
6 Transducer Turck / Germany
7 Photoelectricity switch Banner / USA
8 Pneumatic element Festo / Germany
9 Contactor Siemens / Germany
10 Converter Mitsubishi / Japan

Option machines

Online cap washing system

Including: cap tunnel, stainless steel frame, washing head, two sets of washing pump and two sets of recycling tanks in stainless steel 304.
Cap elevator

Air consumption:0.3kg

Air blower: 0.25kw

Rotary: 2800rpm

Power:0.18kw

Rotary:1360rpm

Machine size: 600*600*1800mm

Weight:150kg

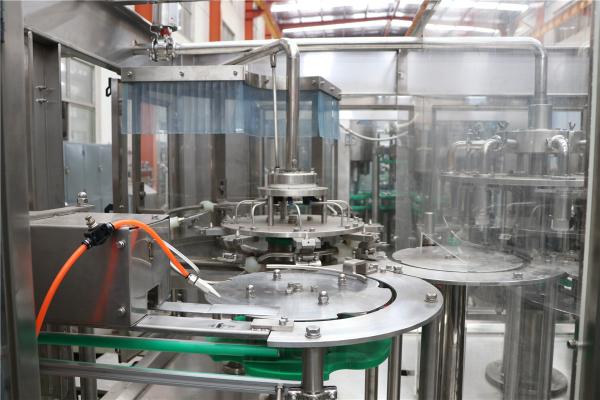

Detailed photo for ref


Piston Vacuum Milk Bottle Filling Machine Medium Size With Belt ConveyorPiston Vacuum Milk Bottle Filling Machine Medium Size With Belt ConveyorPiston Vacuum Milk Bottle Filling Machine Medium Size With Belt Conveyor
