3L 5L 7L Plastic Pet Bottle Mineral Water Filling Packing / Packaging Device / Machine / Line​

Video download: Video link in youtube.pdf

Description

There is linear type and rotarty type,This machine is mainly used for liquid filling and capping,accept 3-10L plastic or glass bottle. its main features are:

1) bottle red card is the bottleneck parts of method used, rotate 180 degrees, washing efficiency.
2) the use of fixed surface of the filling means filling quality, filling speed quickly.
3) the use of mechanical liquid level automatic control mechanism.
4) filling valve, hydraulic cylinder and other parts of surface are in direct contact with high-quality stainless steel,
corrosion-resistant, easy to clean, in line with industrial hygiene requirements.
5) the use of electromagnetic speed control motor, strong production capacity to achieve any adjustments.
6) compact structure, convenient operation and easy maintenance.

Working principle

The machine adopts the principle is given liquid filling pressure filling. Main process is: cleaned the bottle into the bottle trackwheel appropriated by the lift shaft parts, with the dial clockwise, the bottle filling valve from the bottom up and seal the bottle and realized the bottle sealed contact with the valve open Liquid cylinder of liquid in the downstream effects of its weight into the bottle, while the air inside the bottle of liquid in the shed, driven out from
the center tube discharge valve, the liquid until the bottle vent pipe flooded the center, the irrigation Installed to stop, with the bottle down, filling valve closed, filling the bottle by the end of the bottle sealed trackwheel output into the next process.

Main technical parameters

Filling capacity: 3L-10L (standard filling volume)
Filling materials: water
Bottle type: PET bottle
Bottle size: bottle diameter ∮ 100-220MM, bottle height 150-350MM (special requirements can be customized)
Filling method: filling pressure
Applicable cap type: standard plastic screw cap
Power: 2.2KW
Voltage: 380V three-phase AC
Rinse water consumption: (sterile water) ≈ 0.5-0.8M3 / H
Pressure: 0.4MPA
Equipment Dimensions: L4500 * W1400 * H2200MM
Equipment weight: 1800KG

Main parts list

Parameters

Linear type

Rotary type

After-sales service

1. 24 months warranty for the whole system
2. Reply your questions within 24hours.
3. Engineer will have call or video chat with clients to solve the problems.
4. If still can not solve the problem, we will dispatch engineer again to clients' warehouse within one week.
5. 3-time free equipment debugging and adjustment.
6. After 24 months, we can help you to maintain the machine and the accessories are provided only one the cost price.
7. Every 3 years, we can help to overhaul the machine free (Labor)
8. We can provide internship service and help you train the operator and mechanic
9. Free production technology and process configuration

Contact information

Vickie sun
MOB (Whatsapp / wechat): 0086 13584426100
Email: sunpiu2012@gmail.com
Skype: vickiesunqiu

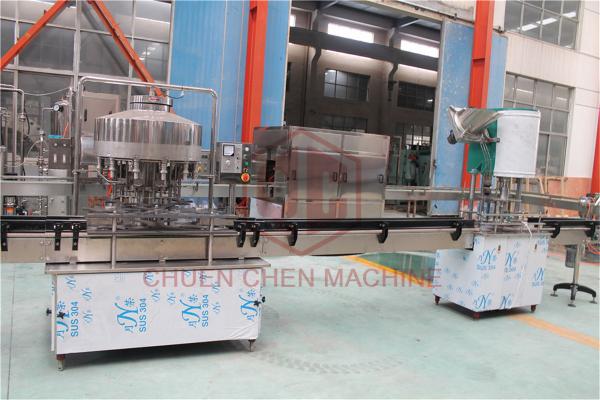

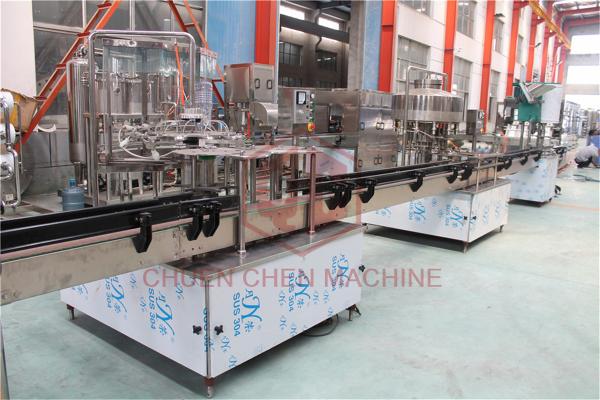

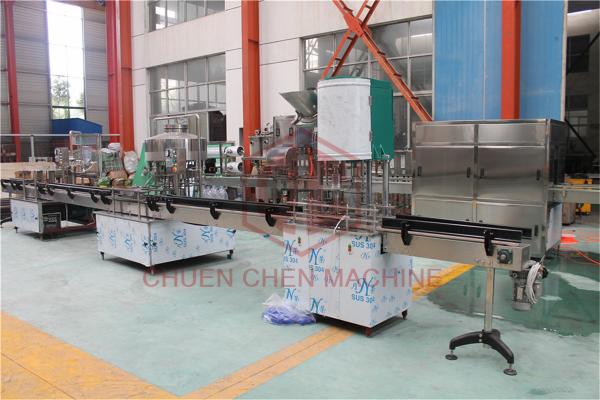

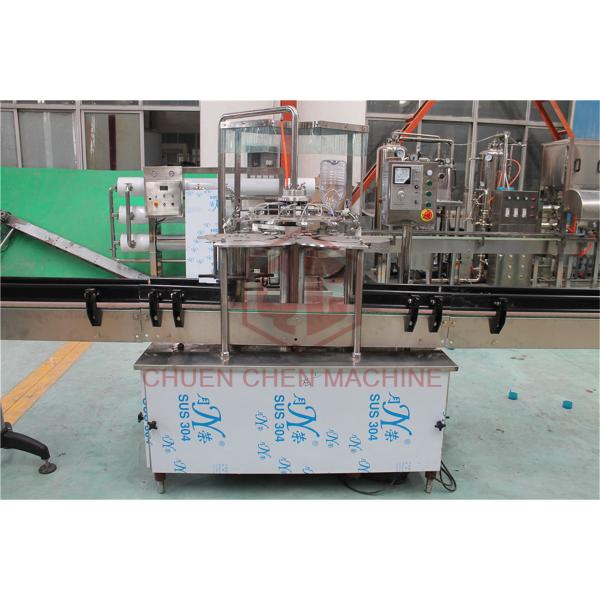

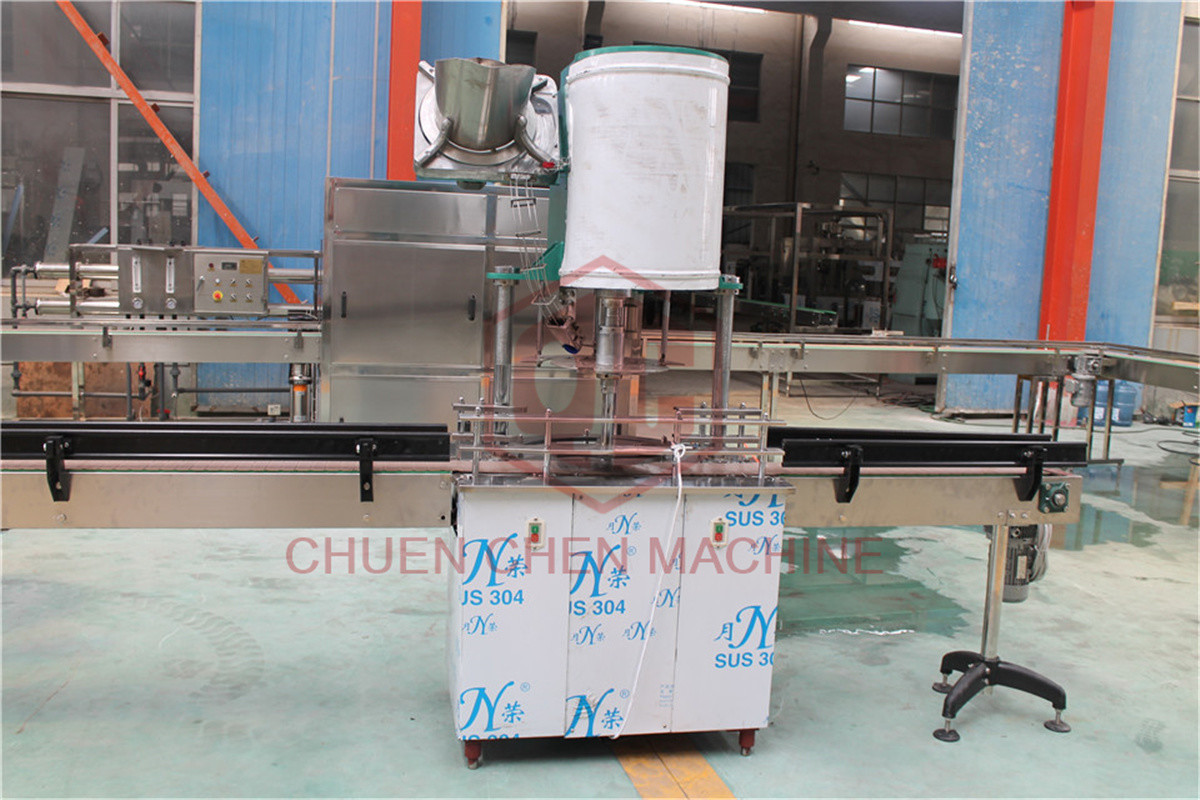

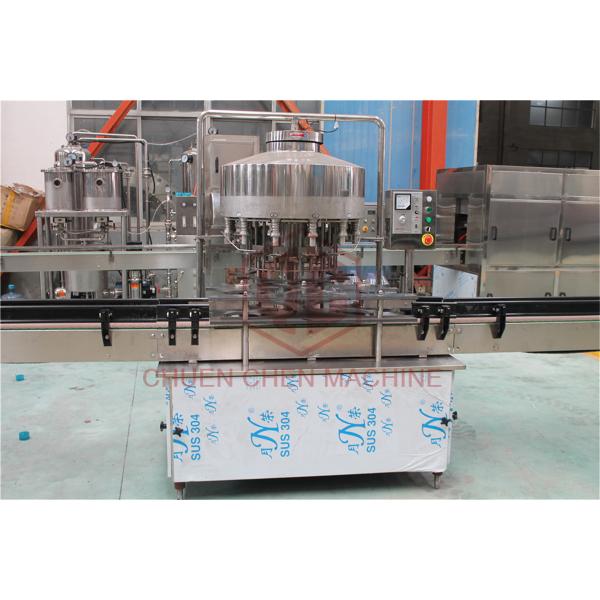

Detailed photo for ref
