Specifications
Brand Name :
Ellison
Model Number :
RCGF 24-24-8
Certification :
CE/ BV / ISO
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
Negotiated
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
8 sets per month
Delivery Time :
30-35 working days
Packaging Details :
Wooden case or pallet package
Machine type :
Aqua water & juice & Non carbonated liquid filling machine
Capacity :
8000-10000 BPH
Bottle type :
330ml-2000ml
Cap type :
Plastic cap (normal cap & short cap)
Machine structure :
3 in 1 rinsing filling capping machine
Spare parts :
2 years
Filling liquid :
Hot juice / Aqua water / non carbonated drink
Filling temperature :
Room temp. / 85-90 degrees Celsius
Description

Aqua Water Non Carbonated Drink Hot Juice Filling Machine With High Speed 10000BPH



General information

Machine type Integrate bottle rinsing - water / juice/ non cabonated drink filling - bottle capping in one machine
Filling liquid Aqua water & Fresh juice
Juice type Concentrate juice
Capacity 8000 - 10000BPH / Customized basing on the requirement
Filling range 330ml - 750ml - 1000ml - 1500ml - 2000ml
Bottle type Plastic bottles which can bear hot temperature
Cap type Plastic screw caps
Option function

1, Central lubrication system

2, Cap washing tunnel

3, Air purifier

4, Cap elevator

5, Air purification system


Description

Juice hot filling machine is to fill juice into plastic bottles in high temperature. The bottle should be bear the hot temperature; The system should keep the temperature while juice flowing through the filling machine. Finally, the whole sysytem should have the CIP cleaning connection to make sure the hygiene.

The complete juice production line include:


Juice production machine UHT sterilizing

V ^ V
Air conveyor > Monoblock filling machine (including the recycling system) > Light Checker > Bottle inverter equipment > Cooling tunnel > Automatic labeling machine > Date printer > Final packing machine


Equipment list

Monoblock filling machine

PET bottle

Glass bottle

Aluminum can

Tin can

Aluminum bottle
Automatic labeling machine

Adhesive label

Sleeve shrink label

OPP label

Paper label
Date printer

Ink jet

Laser
Final packing machine

Shrink wrapping machine

Carton packing machine (tape sealed)

Carton packing machine (hot glue sealed)

half carton packing machine

Technical specification

Model RCGF 24-24-8
Capacity 10000 BPH for 500ml bottle
Suitable bottle PET round or square
Filling liquid Fresh juice without pulp & Aqua water
Filling temperature 85-90 degrees Celsius
Bottle diameter 50-115 mm (we can customize)
Bottle height 160-320 mm (we can customize)
Washing head 24
Filling head 24
Capping head 8
Air consumption 0.5CBM / min
Air pressure 6-8 bar
Total power 4.4 kw



Features

Machine structure


There a return system along with the juice filling machine; once the juice temperature is lower than 85 degrees Celsius, it will be returned to UHT for sterilizing again

New type: round smooth corner, Arm controller installed on the machine

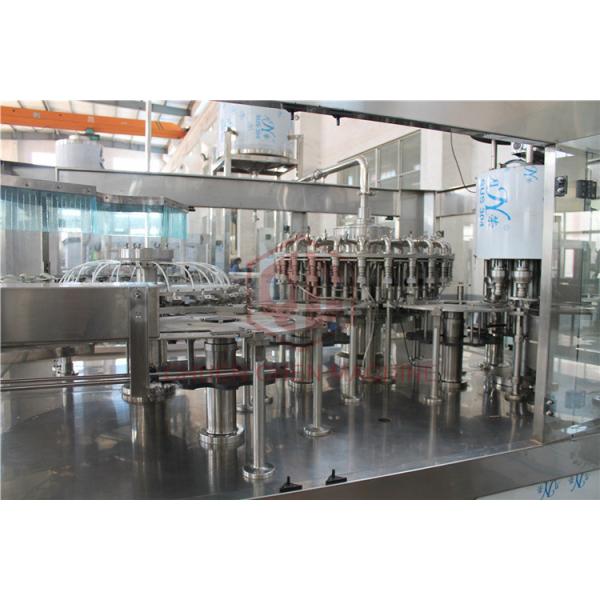

Monoblock high speed 3 in 1 washing - filling - capping unit
Material


Juice touch parts are stainless steel 304 or 316L

Frame material is stainless steel 304, the thickness is 1.5mm

The machine table is carbon steel, we add more poles under the table

Bushes are changed to imported brand which is free lubricate

All parts are manufactured in more precise
Each unit features

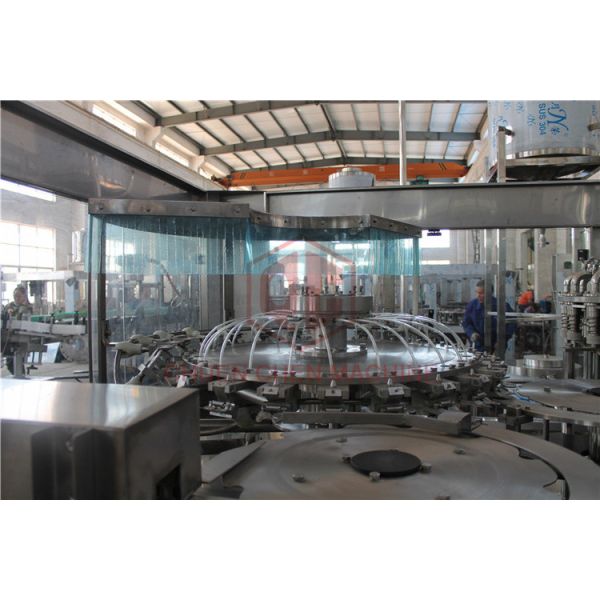

Washing Part: The bottle head gripper in SUS 304 / 316L, ensure minimal bottle crash during washing

Filling Part: All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean

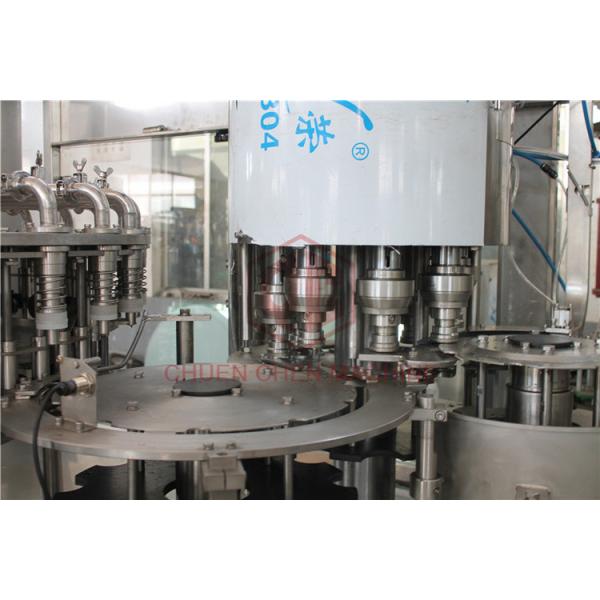

Capping Part: No bottle no capping
Additional function


Install central lubrication system

Automatic lifting system for different height


Main products

Water treatment line, water / juice / carbonated water / craft beer / ketchup / edible oil filling line, beverage processing machine (Juice and carbonated drink), CIP cleaning systems, PET bottle blow molding machines, fresh fruit processing machines etc.

OEM/ODM for clients

Design team

We manufacture every set of equipment with 100% attentation. We keep promise to every client using best quality of material, advanced technology, and famous bead of accessories such as PLC, motor, etc. In addition, if you have any questions of our machine, please kindly to let us know.

After sales


We offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller’s demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.

After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller’s demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems.

Down load of video link

Video link in youtube.pdf

Soicial link

Web: www.waterbottlefillingmachines.com / https://chuen-machine.en.made-in-china.com/ Youtube: https://www.youtube.com/channel/UCKqb8HWZeEx8OUZjEjJPlfg
Facebook: https://www.facebook.com/chuenchenmachinery/

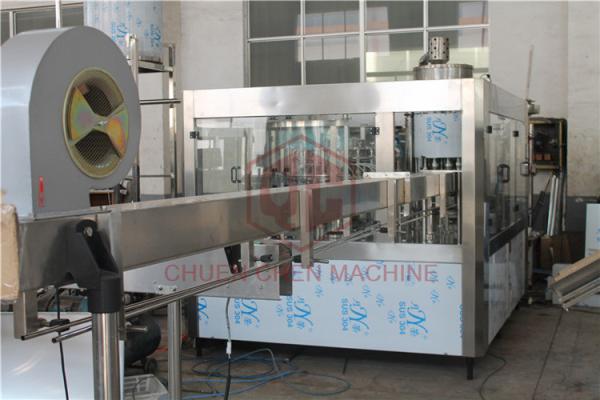

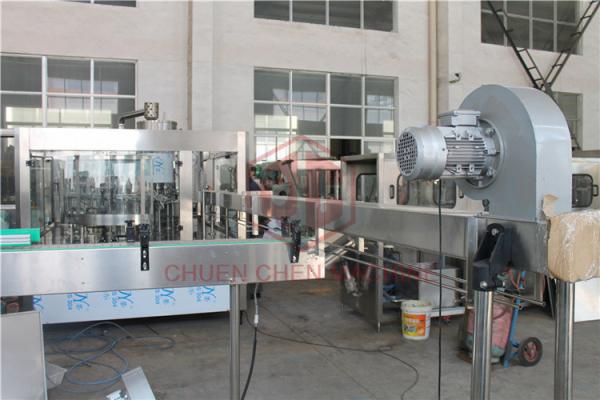

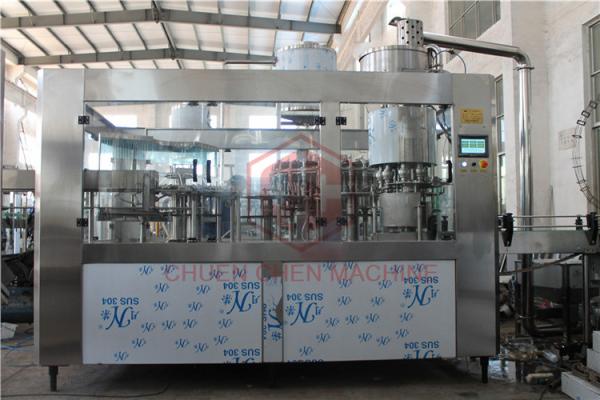

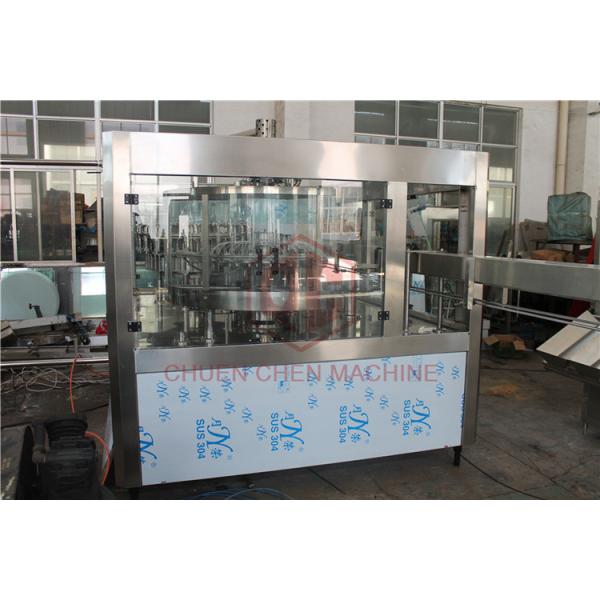

Detailed photo for ref

Aqua Water Non Carbonated Drink Hot Juice Filling Machine With High Speed 10000BPHAqua Water Non Carbonated Drink Hot Juice Filling Machine With High Speed 10000BPHAqua Water Non Carbonated Drink Hot Juice Filling Machine With High Speed 10000BPHAqua Water Non Carbonated Drink Hot Juice Filling Machine With High Speed 10000BPH
