8000BPH Big Capacity Juice Bottling Machine Glass And Plastic Bottle Filling And Packing
8000BPH Big Capacity Juice Bottling Machine Glass And Plastic Bottle Filling And Packing
8000BPH Big Capacity Juice Bottling Machine Glass And Plastic Bottle Filling And Packing
8000BPH Big Capacity Juice Bottling Machine Glass And Plastic Bottle Filling And Packing
8000BPH Big Capacity Juice Bottling Machine Glass And Plastic Bottle Filling And Packing
8000BPH Big Capacity Juice Bottling Machine Glass And Plastic Bottle Filling And Packing
8000BPH Big Capacity Juice Bottling Machine Glass And Plastic Bottle Filling And Packing
8000BPH Big Capacity Juice Bottling Machine Glass And Plastic Bottle Filling And Packing
Specifications
Brand Name :
Ellison
Model Number :
RCGF 18-18-6
Certification :
CE/ BV / ISO
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
Negotiated
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
7 sets per month
Delivery Time :
50 working days
Packaging Details :
Standard export wooden case or pallet package
Processing type :
3 in 1 plastic bottle filling machine / Juice filling machine
Bottle diameter :
49-116mm
Bottle height :
160-320mm
Filling pressure :
Atmospheric pressure
Filling range :
200ml-2000ml
Bottle type :
Round / Square
Control manner :
PLC (Mitsubishi / Siemens)
HS code :
8422301090
Description

8000BPH Big Capacity Juice Glass And Plastic Bottle Filling and Packing Machine

Video Link in Youtube: Please go to download: Video link in youtube.pdf

This Juice Hot / Plastic Water Bottle Filling Capping Machine / Water Bottling Machine

This machine is mainly used for the filling of pure water, mineral water and other non-gas and sugar-free beverages in plastic bottles. It is an integrated equipment for washing, filling and sealing.

It adopts hanging type air conveyor to make change bottle model more convenient, faster and cleaner. the main machine adopts advanced PLC control technology, the key electric elements adopt international famous products or according to customer's customized.

The filling temperature of this machine is 55-95ºC hot filling, It adopts suspension air conveyor. When change the bottle, It only needs to adjust the conveying width, which is more efficient and labor-saving. Filling action is smooth, fast, high precision, reliable sealing, low material loss and other functions, avoid secondary pollution of materials effectively.

Complete bottled water production line from A to Z

1, Water treatment system

2, PET bottle blow molding machine

3, Air conveyor system

4, Water filling system

5, Cap elevator

6, Cap sterilizer

7, Light checker

8, Bottle dryer

9, Flat conveyor and buffer conveyor

10, Bottled water packing machine

11, Date printer

12, Labeling machine

13, Bottle unscrambler

Technical Parameter

Model

RCGF8-8-3

RCGF14-12-5

RCGF18-18-6

RCGF24-24-8

RCGF32-32-10

RCGF40-40-10
Capacity(500ml/bottle/h 1000-2000 2000-4000 4000-8000 8000-12000

12000-15000

15000-18000
Suitable bottle shape Round bottle or square bottle
Bottle diameter(mm) ¢49-¢116
Bottle height(mm) 160-320
Compressed air pressure(MPa) 0.2-0.8
Washing medium Pure water
Washing water pressure(MPa) >0.06MPa
≤0.2MPa
Total power(kw) 3.8 4.5 4.8 5.5 7 8.2
Overall dimensions(mm)

2200*1600*1800

2400*1880*2000

2800*2200*2300

3050*2400*2300

3800*2600*2500

4000*3150*2500
Weight(kg) 2880 3050 4300 6400 7450 8550

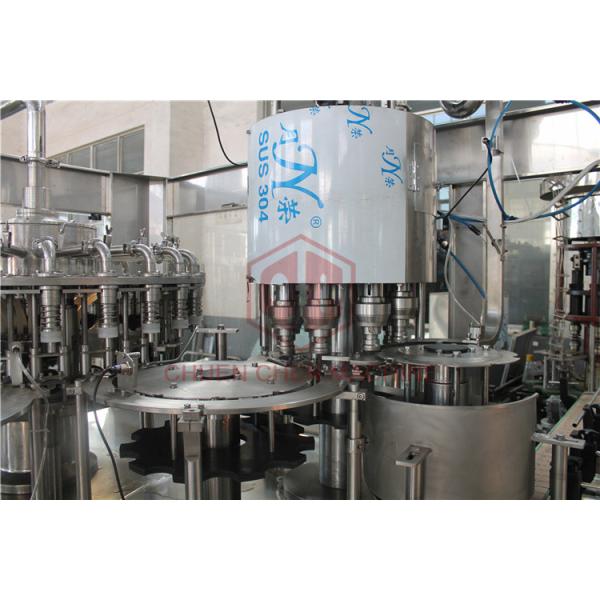

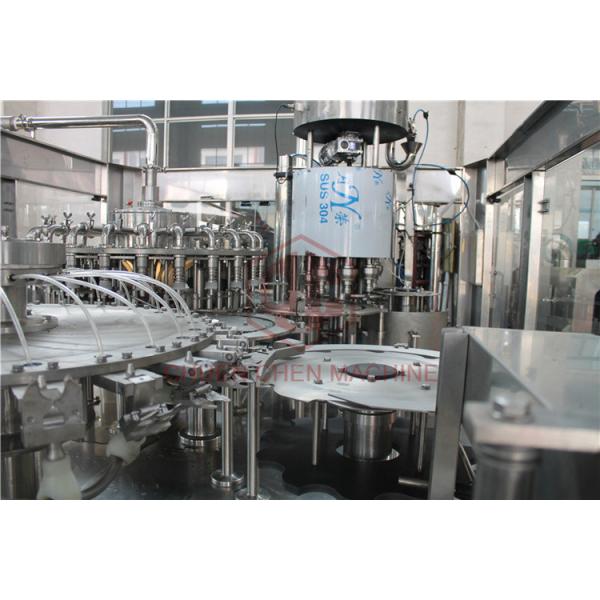

Characteristics - Rinsing - Filling - Capping part

1, By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier.

2, High speed filling line is of clamp transferring technology. Bottle shapes are more varied, and the working table inside the machine is more laconic.

3, The entire filler is gravity filling system .High accurate SUS304L construction filling nozzle, make sure high accurate filling level SUS304L liquid bowl, & pipeline system .Filling level adjustable by choosing different silicone gasket (quick change over parts)

4, No bottles, no filling .Annulus Liquid bowl, with automatic water level controller.

5, High speed filling line is of clamp transferring technology. Bottle shapes are more varied, and the working table inside the machine is more laconic.

6, Specially designed stainless steel bottle clamp dose not contact the thread parts of the bottle neck, avoiding the second contamination.

Electrical configurations

Item Parts Name Brand Brand
1 PLC SIEMENS Germany
2 Inverter
3 Touch Screen
4 Switch
5 Contactor
6 Relayer
7 Solenoid Valve AIRTAC Taiwan
8 Drive motor FEITUO Swiss
9 Reducer CNP China
10 Water Pump SKF China
11 Main Bearing AUTONICS Sweden
12 Sensor AIRTAC Korea
13 Air component ABB Taiwan

Conveyor system

Air conveyor: it is mainly used to connect with PET bottle blow molding machine and filling machine; The bottle shifting device will be needed if the capacity is too large; it includes:

1, air blower

2, air filter screem

3, air conveyor tunnel

The belt conveyor system include:

1, Single row of conveyor: engineering plastic belt or stainless steel belt

2, Multi row of conveyor: engineering plastic belt or stainless steel belt

3, Conveyor motors: speed adjustable or stable speed with converter

4, Turn conveyor

5, Water accumulation tray

6, Cable try

More production machines for making juice

Plate UHT Sterilizer It is mainly used for heating and sterilizing sensitive liquids such as fruit juice, tea and alcohol etc...The sterilization temperature is 85-135ºC, the capacity is 1-15T. The control components are all internationally famous brands.
Tubular UHT Sterilizer It is mainly used for high viscosity, large flesh and acidic drinks, such as fresh juice, jam and coffee etc...., The sterilization temperature is 80-137ºC, the capacity is 1-15T, The control components are all internationally famous brands.
High Pressure Homogenizer T means under the triple action of extrusion, strong impact and pressure-loss expansion, make the liquid is more uniformly mixed with each other, so that the liquid taste is more soft, the capacity is 1-10T.
De-gassing Machine It is mainly composed of degassing chamber, condenser, vacuum pump etc. It is widely used in fresh juice, tea and milk drinks etc. It can remove air (oxygen) from liquid, inhibit browning and oxidation of substances, prevent quality degradation, remove particulate gas, prevent foaming from affecting sterilization, reduce corrosion to the inner wall of container, and play an anti-corrosion role.
UHT Instantaneous Sterilizer It is suitable for instantaneous sterilization of liquid materials, such as fruit juice, fresh milk, soy milk and alcohol drink etc. It has such features as high efficiency, energy saving, simple operation and good sterilization effect etc.
CIP System It is mainly used for cleaning equipment and pipes such as beverage, juice, beer and dairy products etc.
CIP uses centrifugal pump to convoy cleaning liquid into the material pipeline and equipment for full closed cycle cleaning, reducing labor depth and ensuring the quality of beverages.

Click here for inquiry

Contact person: Vickie Sun

MOB (whatsapp/wechat): 0086 13584426100

Email: Sunpiu2012@gmail.com

Skype: vickiesunqiu

Our service

Free 2D & 3D Bottle Design

Our Machine can fit bottle size from 100ml ~ 2000ml Bottle / 3L ~10L Bottle 10~25L Bottle

And three size of bottle fitting parts for free .

Free Layout Plant Design

Every Factory are different and unique , We will special design the layout according to your factory , supply the best beverage package solution for you

Free Spare Parts

All Reliable Machine will be supply One year Spare parts for Free . High Quality Parts ensure the stable of machine’s running .

Why choose us?

Long time guarantee 2 years guarantee
Control cabinet voltage 220V/380V 50Hz or by order
Solid packing Wooden case packing
Instruction with multi-languages Instructions in English, Russian or French
High quality main parts Stainless steels 304 and imported electric components
Door to door service Technical personal for installation and training on site and free translator on site
Online professional reply Responding in 24 hours to the customers' questions
Big range for filling Filling machines from 2,000-22,000 bottles per hour
Low energy cost Ecologic design with low cost of energy
High flexibility The filling machines can be designed according to the customer's special requirement
Free Services Bottle Designing
Label Desigining
Professional Technical Supportance
Layout Designing
etc..

More photos
