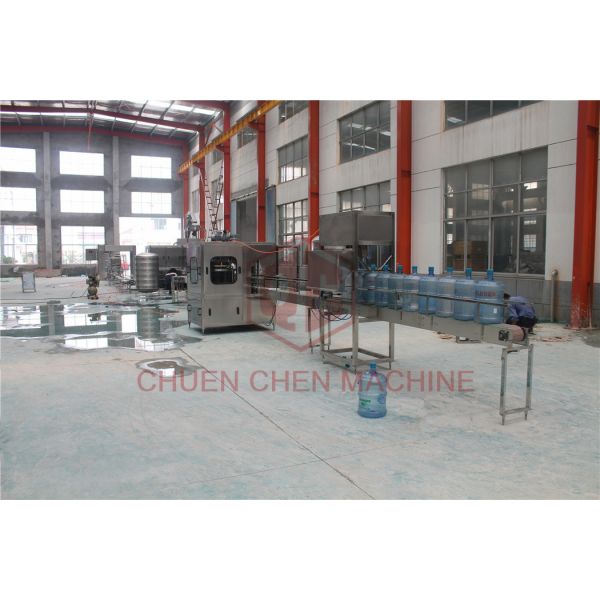

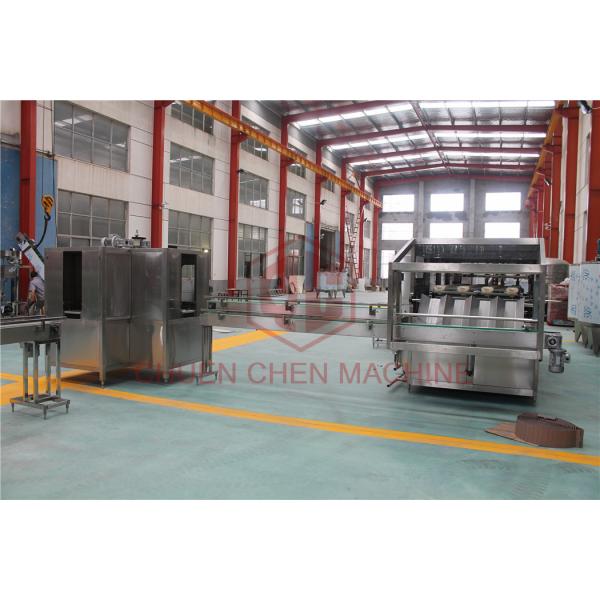

Pure Water 5 Gallon Water Filling Machine Bottle Washing Fully Automatic
Pure Water 5 Gallon Water Filling Machine Bottle Washing Fully Automatic
Pure Water 5 Gallon Water Filling Machine Bottle Washing Fully Automatic
Pure Water 5 Gallon Water Filling Machine Bottle Washing Fully Automatic
Pure Water 5 Gallon Water Filling Machine Bottle Washing Fully Automatic
Pure Water 5 Gallon Water Filling Machine Bottle Washing Fully Automatic
Pure Water 5 Gallon Water Filling Machine Bottle Washing Fully Automatic
Pure Water 5 Gallon Water Filling Machine Bottle Washing Fully Automatic
Specifications
Brand Name :
Ellison
Model Number :
QGF
Certification :
CE/ BV / ISO
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
Negotiated
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
8 sets per month
Delivery Time :
35 working days
Packaging Details :
Wooden case or pallet package
Main material :
Stainless steel 304
Pipes :
DN32
Valve brand :
Airtac / SMC
Booster pumps :
CNP
Production capacity range :
600-1200BPH
Plate thickness :
2mm / Customize
Voltage :
380V or customize 50HZ/60HZ
Water tank :
Customize
Description

Automatic Bottle Loading Unloading System 5 Gallon Water Filling Machine 1200BPH

Brief introduction

QGF type barreled water producing line is the core equipment in the 5 Gallon barreled drinking water producing line. It is the ideal equipment for mineral water, distilled water and purified water producing process. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical parts adopt products with brand of SIEMENS and OMRON. Pneumatic parts adopt products with brand of AIRTAC. Both the inner and outer shower nozzle for washing barrel adopt the special technology equipment from American sprayer company. The machine works reliably and efficiently based on the compact structure and high automatic technology. It is the fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.

Outside Wshing Machine

Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC.

Main Machine Features

1/ Shape structure adopted concave and convex shape, perfect appearance also reduces the leakage.

2/ The thickness of the stainless steel plate which used for 600bph is 3mm.

3/ Tank and the heating pipe in tank are removable which become more clean sanitation.

Filling Part Features

1/ Uploading and dropping barrels changed from 45 degree to translatory which is more stable.

2/ Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.

Capping Parts

1/Liquid level difference is controlled in 1cm.
2/Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water.
3/Customers can choose to equip ABB/SEW motor, GRUNDFOS water pump, FESTO pneumatic component.

Flat Conveyor

The chain board on conveyor is made with stainless steel. The appearance of foot stand is perfect, and the height can be adjusted.

Cap Sterilization System

Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water.

Parameters

Model TXG-450 TXG-600 TXG-900 TXG-1200 TXG-1500 TXG-2000
Filling Heads 3 4 8 10 12 15
Working Position Number 9 11 13 15 17 21
Diameter of Bottle
265-273mm
Height of Bottle
150-360mm
Weight 3000kg
3500kg 7000kg 8000kg 8500kg 9500kg
Motor Power 30KW 32KW 35KW 40KW 45KW 52KW

We have more

1. De-capping machine

Automatic de-capper is the professional equipment for 5 gallon water filling line, especially the filling line that use recycle barrel. It enhances work efficiency remarkably, reduce secondary pollution from manual de-capping greatly and lower labor intensity. The machine is made of stainless steel which is corrosion resistant and easy cleaning. The pneumatic parts are from the famous brand AIRTAC.


2. Cap elevator

1. Control system ---- Operation system ---- Adopting traditional control plate, easy-operated , stable and reliable
2. Function advantage ---- Supporting with the capping machine,automatic cap-sender,automatic stopping,automatic control.
3. Stepless speed regulation ---- According to production requirement can realize balance the cap-sending speed .


3. Light checker


It Is usually used tar production checking after filling, eyes check the product by light pass the qualified product and eliminate the debris.


After-Sales Service


1). We can send you the video of mechanical operation.
2). Welcome to our company, we can show you the equipment in our factory. If you come to China and don't know the location of our company, you can contact us to pick you up.
3). We can design the machines according your requirements.(material ,power,filling type,the kinds of the bottles,and so on.

How Can I Visit Your Factory?

A: Our factory location:Zhenbei Road, Leyu Town, Zhangjiagang City, Jiangsu Province, China.
Contact: MOB / Wechat / WhatsApp: 0086 13584426100 (Vickie Sun)
Nearest train station: Wuxi Station / Wuxi East Station
Nearest international airport: Shanghai Pudong International airport (PVG) / Shanghai Hongqiao International airport (SHA) / Wuxi Shuofang airport (if you are already in China)

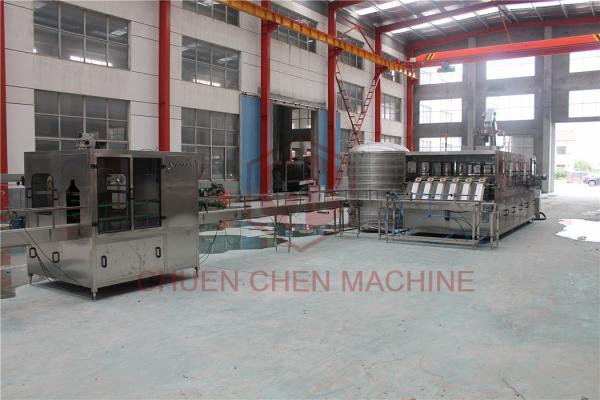

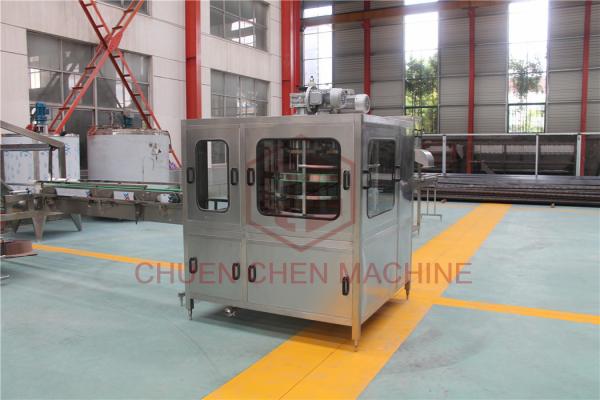

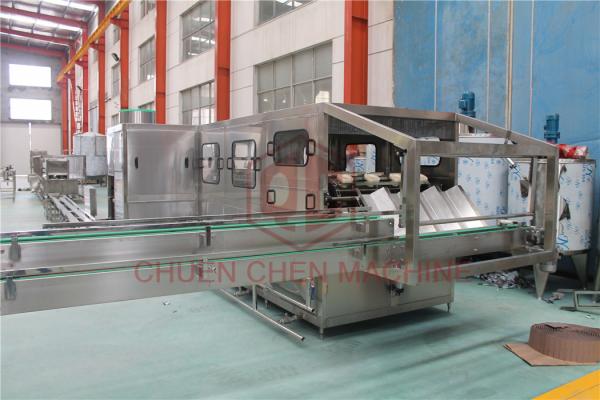

Detailed photo for ref

Pure Water 5 Gallon Water Filling Machine Bottle Washing Fully Automatic

Pure Water 5 Gallon Water Filling Machine Bottle Washing Fully Automatic
