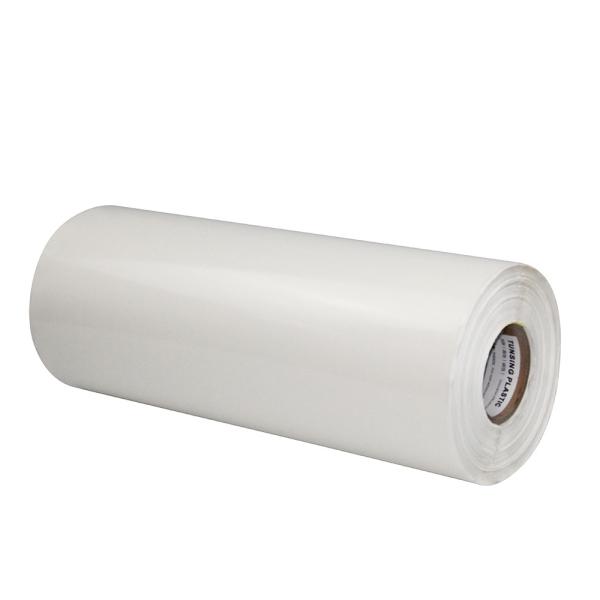

Double Sided Transparent EAA/PO Hot Melt Self Adhesive Film For Embroidery Patch
Double Sided Transparent EAA/PO Hot Melt Self Adhesive Film For Embroidery Patch
Double Sided Transparent EAA/PO Hot Melt Self Adhesive Film For Embroidery Patch
Double Sided Transparent EAA/PO Hot Melt Self Adhesive Film For Embroidery Patch
Specifications
Brand Name :
/
Model Number :
DS019YM
Certification :
ROHS, ISO, Reach
Place of Origin :
China
MOQ :
100 yards/roll
Price :
USD175.00/roll
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
3000000 yards per month
Delivery Time :
3-15 days after payment
Packaging Details :
2 rolls in one box，each with black PE bag
material :
Ethylene acrylic acid copolymer
Washing Resistance :
40°C/72H
Melt Point (DSC) :
90°C
MI g/10mins :
300±10g/10min ; Condition:ASTMD1238-04
Operating temperature :
120℃-140℃
Conventional Thickness :
0.08mm (hot melt 0.08mm+acrylics 0.1mm)
Conventional Width :
480mm
Length :
100 yards
Description

0.18mm thick 48cm wide double sided transparent EAA/PO hot melt self adhesive film for embroidery patch

Self Adhesive Film Description:

This product is a self-adhesive hot melt film. Double layer structure: the first layer is hot melt adhesive (no viscosity under normal temperature, need to be heated), and the other layer is acrylic acid pressure sensitive adhesive (in normal temperature, there is self-adhesive energy and the entrusted off-type paper).Self-adhesive level can be no less than 150 degree temperature, not lose the glue, and also can be paste repeatedly, in line with the European demand index.

Self Adhesive Film Composition:

Ethylene acrylic acid copolymer

Self Adhesive Film Applications:

DS019YM development direction and application is mainly applicable to the embroidery trademark, LOGO class or need to cut after the positioning of hot pressing.

Conventional thickness* width*length:

0.18mm*48cm*100yards

Packaging Details:

1PC/PE FILM, 100yard/roll, 2 rolls/CTN, or it's up on the customer's option

Delivery Detail:

Shipped in 3-15 days after payment

Physical Characteristics:

Color

transparent

Release liner

Glassine release paper

Density

1.2±0.02g/cm³

Conventional Thickness

0.08mm

(hot melt 0.08mm+acrylics 0.1mm)

Melting point

90℃

Width

6mm-1000mm

Operating Temperature

120℃-140℃

Conventional Width

480mm

Melt Flow Index

300±10g/10min ;

Condition:ASTMD1238-04

Length

100 yards

Washing Resistant Time

40°C/72H

Finished Products Specification

480mm(width)*100yards(length)/roll

Recommended Bonding Conditions:

Flat Press:

Machine Setting: 120℃-140℃

Dwell Time: 5-15 seconds

Pressure: 0.3-0.6mpa

1, Bonding temperature and pressure as well as the time involved in the strength of the film to material. Bonding temperature must be close to the machine set the temperature, the pressure must be uniform, mold and pressure roller must be flat.

2, In different machinery and materials, the bonding conditions used will be different. The conditions marked here are only basic. The optimum bonding conditions should be made by creating suitable construction conditions for the particular application damage, direct or consequential, arising out of the use, misuse or inability to use the product.
