4 Port Air Manifold PVC Tube Fittings For Spa / 1 Inch PVC Pipe Fittings
4 Port Air Manifold PVC Tube Fittings For Spa / 1 Inch PVC Pipe Fittings
4 Port Air Manifold PVC Tube Fittings For Spa / 1 Inch PVC Pipe Fittings
4 Port Air Manifold PVC Tube Fittings For Spa / 1 Inch PVC Pipe Fittings
Specifications
Brand Name :
HONGSHENG
Model Number :
HT-B52
Place of Origin :
China
MOQ :
10 PCS
Payment Terms :
T/T, L/C
Supply Ability :
70000 PCS/month
Delivery Time :
7-15days after confirming order
Packaging Details :
carton
Certification :
CE
Item No. :
HT-B52
Item Weight :
74g
Size :
1" slip x 1" spigot 4 x 3/8" ribbed barbs
Material :
PVC ( Polyvinyl Chloride )
Shape :
Air Manifold
Color :
White
Description

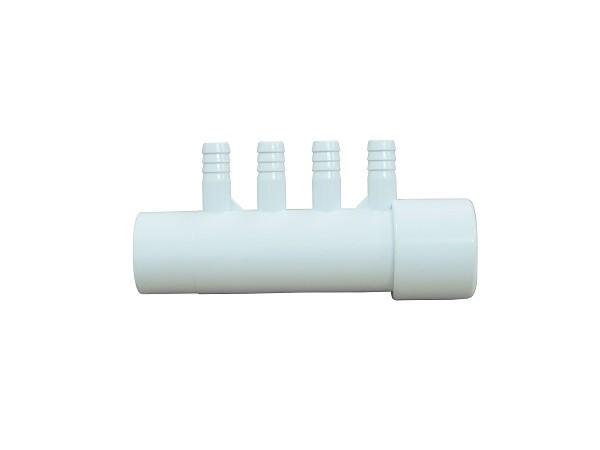

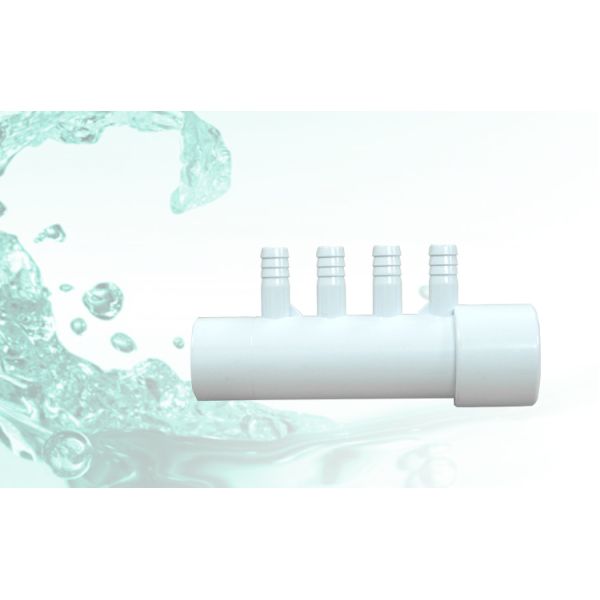

4 Port PVC Air Manifold 1" slip x 1" spigot 4 x 3/8" ribbed barbs For Spas Air System Blowers Bubblers And Venturi's​

Specifications for this item:

Brand Name HONGSHENG
Part Number HT-B52
Material Type PVC (Polyvinyl Chloride)
Size 1 inch
Product Dimensions 1" slip x 1" spigot 4 x 3/8" ribbed barbs
System of Measurement Inch
Shape Air Manifold
Additional Features Impact Proof
Color White
Finish Types Polished
Place of Origin Made in China
Item Weight 0.074 Kilograms
Mount Type Glue
Specific Uses For Product Commercial/Residential

Descriptions:

  • Spa Hot Tub Air Manifold
  • 1" Slip X 1" Spigot Glue fittings
  • (4) 3/8" Barbs

4-port manifold with (4) 3/8" barbs and 1" S x 1" SPG inlet/outlet.

The Hot tub Spas air manifold recieves a 1"ID or 1 5/16" OD pipe on one side and then slips into a 1 5/16" ID fitting on the other side with (4) 3/8" Barb Fittings.

NOTE: 1" in PVC Plumbing actually reads 1 5/16" on the outside of the pipe and 1" on the inside Diameter of the pipe. You can put this with other manifolds we are offering to make up the size manifold you need or choose a Kit that includes an Air Valve, Manifold, Barbed couplers and more.

4 Port Air Manifold PVC Tube Fittings For Spa / 1 Inch PVC Pipe Fittings

Features:

Air system manifold are used for blowers, bubblers & Venturi's etc... available in PVC plumbing sizes 1/2", 3/4", 1" & 1.5" PVC all with barb fittings.


The barbs are usually 3/8" dia. for standard vinyl air tubing.

Material Information:

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. Fittings are available in many shapes, styles, sizes, and schedules (pipe wall thickness).

PVC can be connected to other materials such as steel, copper, or cast iron using transition fittings. This fitting provides superior flow to metal because of its smooth interior finish, which reduces friction and inhibits buildup of materials.

4 Port Air Manifold PVC Tube Fittings For Spa / 1 Inch PVC Pipe Fittings

4 Port Air Manifold PVC Tube Fittings For Spa / 1 Inch PVC Pipe Fittings
