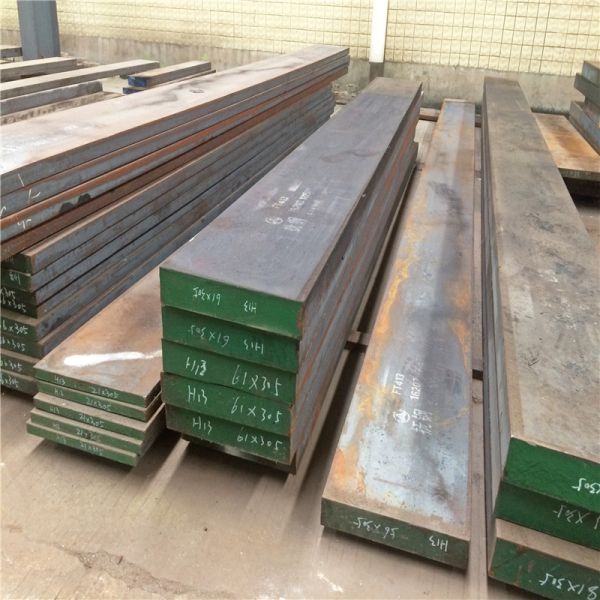

ANSI Standard Forged Steel Block For Hot Work Die With Width 205-710mm
ANSI Standard Forged Steel Block For Hot Work Die With Width 205-710mm
ANSI Standard Forged Steel Block For Hot Work Die With Width 205-710mm
ANSI Standard Forged Steel Block For Hot Work Die With Width 205-710mm
Specifications
Brand Name :
Changfeng
Model Number :
1.2344/H13/SKD61
Certification :
ISO/ Mill Certificate
Place of Origin :
CHINA
MOQ :
5T
Price :
To be negotiated
Payment Terms :
T/T, L/C
Supply Ability :
1000t/Mouth
Delivery Time :
15-20days
Packaging Details :
bulk packing&wooden case
Application :
Die-casting mould
Standard :
ANSI/ASTM/GOST/EN/GB-T/SAE/ISO
Surface :
Black
Technology :
forge
Thickness :
100-500mm
Description

1.2344/H13/SKD61 Special STEEL bar for hot work die With Width 205-710mm

H13/1.2344/SKD61/4Cr5MoSiV1 mold steel is a kind of silicon, chromium, molybdenum, vanadium medium alloy hot work die steel. Quenched, tempered after the organization of fine, fine grain of martensite, basically distributed with small carbides, with Good comprehensive mechanical properties, and good hardenability, suitable for manufacturing large size, complex shape of the mold.

Grades

Chinese American German Swedish Japanese
GB AISI DIN ASSAB JIS
4Cr5MoSiV1 H13 1.2344 8407 SKD61


Chemical Composition (%)

C Si Mn P S Cr Mo V
0.35-0.40 1.00-1.20 0.40-0.60 ≤0.015 ≤0.003 4.80-5.20 1.20-1.40 0.80-1.00

Hardness

Annealing hardness Quenching hardness Tempering hardness
≤230HB 51-55HRC 46-50HRC

Technical service
1) Die vacuum heat treatment and die surface treatment (N-O,C-N, carburize and nitridation surface treatment).
2) Black surface, annealing, hot rolled/forged, EAF/ESR, 2 or 4 sides cutting

Characteristics of AISI H13 Alloy Steel Plate
1) Cold and hot fatigue resistance, strong ability to resist crack.
2) Electroslag remelting steel, high purity, good resistance to dissolve.
3) Organizational structure of uniform, better heat resistance with good toughness, high temperature resistance metal erosion.
4) Good resistance to high temperature tempering performance, hardness steady working under 600ºC, dimensional accuracy stability durability.

Heat Treatment

Heating temperature Cooling way Hardness (HRC) Tempering temperature
/ºC		 Tempering number Hardness
(HRC)
First preheating Second preheating Last heating
500-
600		 820-
860		 1010-
1040		 Oil cooling 53-55 560-620 2 50-46

Available Size (mm)

Shape Thickness/
Diameter		 Width Length
Round Bar 16-520 / 3000-6000
Flat Bar 16-260 205-610 3000-6000
Forged Round Bar 150-450 / 2000-6000
Block 100-500 600-1000 2000-6000

Changfeng Tool & Die Steel Hot Sale product info:

STANDARD/GRADE Flat Bar Size(mm) Round bar Size(mm) Technics
DIN AISM JIS GB(China) Thickness Width Length Diameter Length
1.121 SAE1050 S50C 50# 10-450 155-2200 2000-12000 Forged, Hot Rolled
1.2311 P20 PDS-3 3Cr2Mo 10-460 155-2200 2000-10000 20-200 2000-6000
1.2738 P20+Ni - 3Cr2NiMnMo 21-300 155-2200 2000-8000 20-200 2000-6000
1.2379 D2 SKD10 SKD10 10-200 155-810 2000-6000 14-80 3000-6000
1.2080 D3 SKD1 3Cr2Mo 10-200 155-810 2000-6000 20-200 3000-6000
1.2083 420 - 4Cr13 10-500 155-1200 2000-6000 12-300 3000-6000
1.2344 H13 SKD61 4Cr5MoSiV1 10-500 155-1600 2000-6000 16-400 3000-6000
1.2510 O1 SKS3 9CrWMn 10-200 155-810 2000-6000 20-200 3000-6000
1.7225 SAE4140 SCM440 42CrMo 10-280 155-2200 2000-6000 16-450 3000-6000
