AISI ASTM Standard Plastic Mold Steel / 1.2738 P20+Ni 718H Steel Plate
AISI ASTM Standard Plastic Mold Steel / 1.2738 P20+Ni 718H Steel Plate
AISI ASTM Standard Plastic Mold Steel / 1.2738 P20+Ni 718H Steel Plate
AISI ASTM Standard Plastic Mold Steel / 1.2738 P20+Ni 718H Steel Plate
AISI ASTM Standard Plastic Mold Steel / 1.2738 P20+Ni 718H Steel Plate
AISI ASTM Standard Plastic Mold Steel / 1.2738 P20+Ni 718H Steel Plate
AISI ASTM Standard Plastic Mold Steel / 1.2738 P20+Ni 718H Steel Plate
AISI ASTM Standard Plastic Mold Steel / 1.2738 P20+Ni 718H Steel Plate
AISI ASTM Standard Plastic Mold Steel / 1.2738 P20+Ni 718H Steel Plate
AISI ASTM Standard Plastic Mold Steel / 1.2738 P20+Ni 718H Steel Plate
Specifications
Brand Name :
CF
Model Number :
1.2738/ P20+Ni/ 3Cr2NiMnMo
Certification :
ISO / Mill Test Certificate
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1000 tons / month
Delivery Time :
7-15 working days
Packaging Details :
Export Standard Packing or Customers' Demand
Standard :
AISI, ASTM, DIN, GB
Test :
SGS/Ut 100%/Element testing
Heat treatment :
Annealed / Q + T
Delivery condition :
Forged or Hot rolled
Surface :
Black / Machined / Polished / Turned
Service :
Sample free and 24 hours online
Description

Baosteel 1.2738 (P20+Ni, 718H) Steel Plate of Special steel

1, Features
a, Uniform hardness qualitative of Material;
b, No quenching crack danger,Without heat treatment costs that can reduce the tool cost;
c, Excellent polishing performance;
d, Good machining performance.

2, Application
Used for various large -sized mirror plastic mould,percision mould;
a, Leather grain, pear skin grain etching, imitation stone moulds;
b, Clear plastic container classes such as pencil case, commodity high gloss mould;
c, Such as refrigerator, air conditioner production to demand higher large mould.

3, Grade

GB AISI DIN
3Cr2NiMnMo P20+Ni 1.2738


4, Chemical composition(%)

C Mn Si Cr Ni Mo P S
0.35-0.45 1.30-1.60 0.20-0.40 1.80-2.10 0.90-1.20 0.15-0.25 ≤0.03 ≤0.03


5, Mechanical Properties:

Hardness Y.S.(0.2%) UTS Elongation RoA Elastic Modulus
HB Mpa KSI Mpa KSI % Z% GPA KSI
300 826 120 993 145 17 59 205 29745


6, Hardness: 33-35HRC

7, Packing: Standard export packing or according to customers' request.

8, Delivery:
For abundant stock, 15-20 days.
For customized products, 30-50 days.

9, The process flow
a, Hot rolled or forged condition, Pre-harden &tempering , black surface
b, Hardness: 30~36HRC
c, Hot rolled technology:EAF+LF+VD
Forged technology: EAF+LF+VD+ESR+Forging +Q T + Machined surface

10, Our service:

1, Sizes, materials and others are all at your requirements and can be changed;

2, Price varies on materials, dimensions, finish craft and different payments;

3, We are direct manufacture in machinery manufacturing work with experience of several decades;

4, Detail production design will be made according to information you offered;

5, We have adequate inventory, so that we can quick delivery;

6, The most important is that we have advanced equipment.

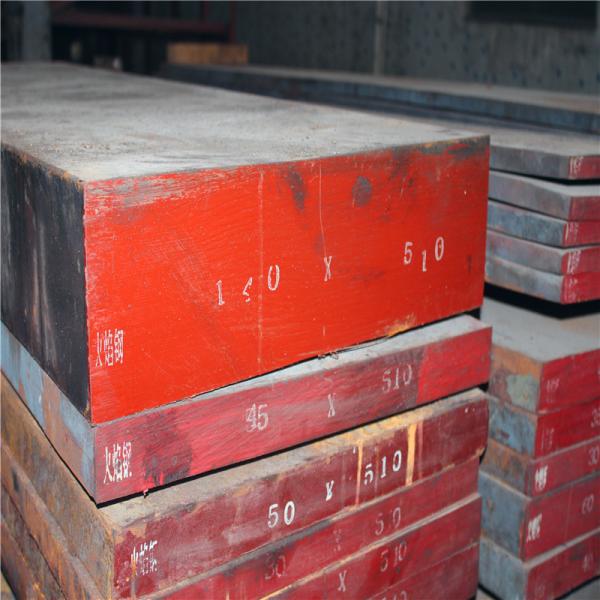

Product pictures:

AISI ASTM Standard Plastic Mold Steel / 1.2738 P20+Ni 718H Steel Plate

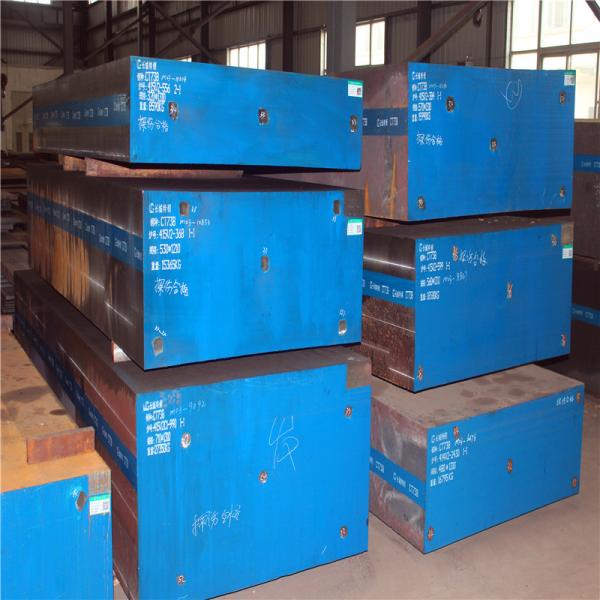

Corner of factory:

AISI ASTM Standard Plastic Mold Steel / 1.2738 P20+Ni 718H Steel Plate
​
​
