1.2083 / 420 / S136 / 4Cr13 Stainless Steel Tool Bar Good Wear Resistance
1.2083 / 420 / S136 / 4Cr13 Stainless Steel Tool Bar Good Wear Resistance
1.2083 / 420 / S136 / 4Cr13 Stainless Steel Tool Bar Good Wear Resistance
1.2083 / 420 / S136 / 4Cr13 Stainless Steel Tool Bar Good Wear Resistance
1.2083 / 420 / S136 / 4Cr13 Stainless Steel Tool Bar Good Wear Resistance
1.2083 / 420 / S136 / 4Cr13 Stainless Steel Tool Bar Good Wear Resistance
1.2083 / 420 / S136 / 4Cr13 Stainless Steel Tool Bar Good Wear Resistance
1.2083 / 420 / S136 / 4Cr13 Stainless Steel Tool Bar Good Wear Resistance
Specifications
Brand Name :
CF STEEL
Model Number :
1.2083 SUS420J2 420 S136 4Cr13
Certification :
ISO/Mill Certificate/SGS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
3000t/Month
Delivery Time :
7-30 days
Packaging Details :
standard export packing or customers' request.
Standard :
DIN,ASTM,AISI,GB,JIS
Surface treatment :
Black / Milling / Turned
Hardness :
Pre-hardened HRC 30-36; Annealing <235
Test :
SGS / Ut 100% / Element Testing
Heat Treatment :
Annealing +Q+T
Technology :
Forged or Hot Rolled
Description

1.2083/ 420 / S136 / 4Cr13 Stainless Steel Tool Bar of Special Steel

1.2083 mould steel is a kind of plastic mould steel with high chromium element which is up to 13%.1.2083mould steel has good wear resistance and good polishing, it widely used for acid proof plastic mold.

Available size(mm):

Flat Bar Size(mm) Round Bar Size(mm)
Thickness Width Length Diameter Length
12-300 800-2000 2000-6000 15-300

3000-6000


1,Grade
DIN 1.2083 AISI 420 JIS SUS420J2


2,Feature		 Excellent corrosion resistance;Excellent abrasion resistance and elasticity
Excellent high-temperature abrasion resistance
Medium toughness,dimensionally stable,high compressive strength


3,Application		 Highly stressed cutting and punching tools for thin sheets
Stone processing tools and knives for paper and plastics,shear knives
Chemical Resistance plastic mold,Corrosion of thermoplastic plastics


4,Hardness after tempering :

Tempering 100°C 200°C 300°C 400°C
HRC 54 52 52 52


5,Chemical composition (%)

Grade delivery hardnessºC C Si P S Cr Ni Mo Mn
420 HRC32-36 0.4 0.8 ≤0.03 ≤0.03 13.5 ~ 0.6 0.5
4Cr13 HB≤201 0.36-0.48 ≤0.6 ≤0.035 ≤0.03 12-14 ≤0.6 ~ ≤0.8
1.2083 HB≤235 0.26-0.35 ≤0.6 ≤0.03 ≤0.03 12.5-14 ≤0.5 ~ ≤0.8
S136 HB≤235 0.38 0.8 ≤0.03 ≤0.03 13.6 ~ ~ 0.5


6,Package: We provide standard export packing or according to customers' request.

7,Delivery: For abundant stock, 7-15 days.For customized products, 30-50 days.

8,Heat Treatment:

Annealing : 810 - 830 °C
Hardness after annealing : Max.230 HB
Stress relieving: Approx.650 °C
Hot forming: 1050 - 850 °C
Hardening: 970 - 990 °C
Quenching media: Oil, Vacuum
Hardness after quenching: 52 - 56 HRC

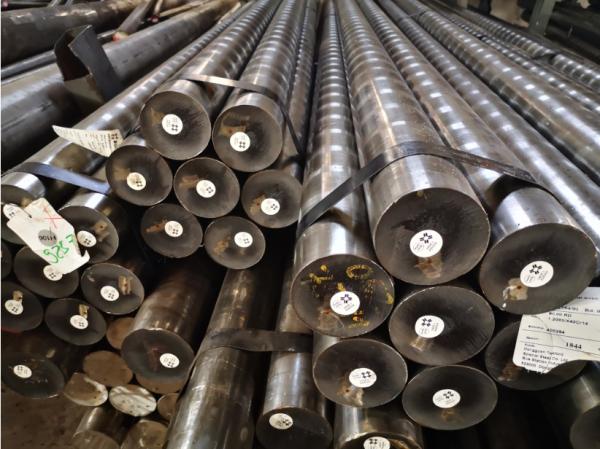

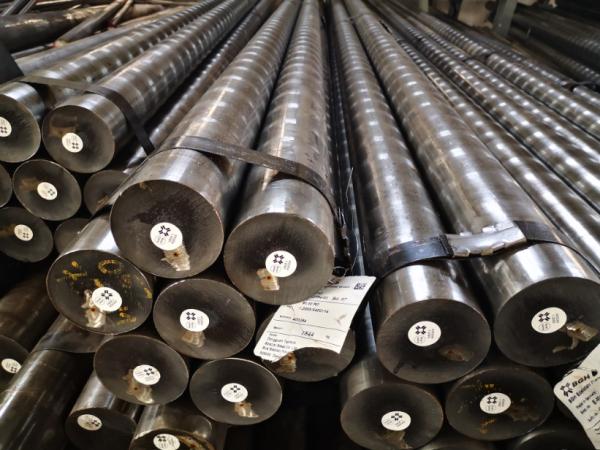

Product Photo

1.2083 / 420 / S136 / 4Cr13 Stainless Steel Tool Bar Good Wear Resistance

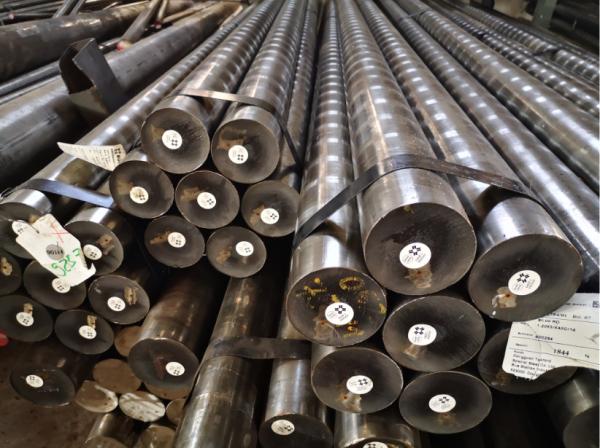

Strict Quality Control
1.2083 / 420 / S136 / 4Cr13 Stainless Steel Tool Bar Good Wear Resistance

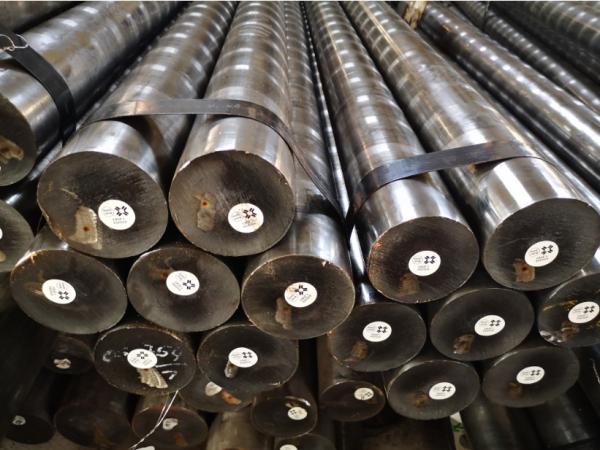

Loading Photo
1.2083 / 420 / S136 / 4Cr13 Stainless Steel Tool Bar Good Wear Resistance

Our Service For You
Pre-sale Service
1. Sample can be offered with sample charge and courier fee by buyer's side.
2. We have full stock,and can deliver within short time.Many styles for your choices.
3. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you
4. All of our products are produce by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

After you choose
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment,
3. Email you the tracking no, and help to chase the parcels until it arrive you.

After-sale choose
1. We are very glad that customer give us some suggestion for price and products.
2. If any question,please contact with us freely by E-mail or Telephone.
