Thickness 10-195mm 420 1.2083 S136 Stainless Steel Plate For Mould Steel
Company Profile
Guangzhou Changfeng Steel Co.,LTD is an export agent company of Baosteel Group special steel products, which mainly sells plastic die steel, hot work die steel, cold work die steel, alloy structural steel, bearing steel, tool steel, stainless teel, carbon steel, etc. We also act on behalf of exporting steels of mainly steel factories in China, including Shagang group, Wenfeng group, Xingcheng group, Dongte group, Daye and so on. Changfeng is full of export experience to the market all over the world, such as America, Germany, France, Italy, Turkey, Singapore, Thailand, Malaysia, Vietnam, Taiwan, and Middle-East.
Changfeng has a lot of experienced and competent elites and is capable of offering the best service after years of development. Our company equips with large-sized Vertical saw machines, Horizontal saw machines, Milling machines, Grinding machines and other advanced equipments to provide customers with cutting and other processing services. Our all products should be inspected the metallographic analysis,hardness, ultrasonic flaw detection and other strict inspection processes, which meet the standards of DIN, AISI,JIS and GB to ensure their function and quality.
Changfeng keeps the principle of " sincerely cooperation, endless striving for perfection" to establish long-term and win-win relationship with importers all over the world.
Grades Comparison
Germany(DIN) | Japan(JIS) | USA(AISI) | Sweden(SS) | China(GB) |
1.2083 | SUS420J2 | 420 | S136 | 4Cr13 |
Chemical composition (%)
Grade | delivery hardnessºC | C | Si | P | S | Cr | Ni | Mo | Mn |
420 | HRC32-36 | 0.4 | 0.8 | ≤0.03 | ≤0.03 | 13.5 | ~ | 0.6 | 0.5 |
4Cr13 | HB≤201 | 0.36-0.48 | ≤0.6 | ≤0.035 | ≤0.03 | 12-14 | ≤0.6 | ~ | ≤0.8 |
1.2083 | HB≤235 | 0.26-0.35 | ≤0.6 | ≤0.03 | ≤0.03 | 12.5-14 | ≤0.5 | ~ | ≤0.8 |
S136 | HB≤235 | 0.38 | 0.8 | ≤0.03 | ≤0.03 | 13.6 | ~ | ~ | 0.5 |
Recommend heat treatment:
Heating temperature/ºC | Cooling way | Hardness(HRC) | Tempering temperature /ºC | Hardness(HRC) | |
Preheating temperature | Solution temperature | ||||
920-980 | 1050-1100 | Oil Cooling | 48-54 | 200 | ≥48 |
Package: Standard export packing or according to customers' request.
Features:
1) Excellent corrosion resistance;Excellent abrasion resistance and elasticity;
2) Excellent high-temperature abrasion resistance;
3) medium toughness,d imensionally stable, high compressive strength;
Application:
1) highly stressed cutting and punching tools for thin sheets;
2) stone processing tools and knives for paper and plastics, shear knives
3) Chemical Resistance plastic mold, Corrosion of thermoplastic plastics;
Delivery: For abundant stock, 7-15 days.For customized products, 30-50 days.

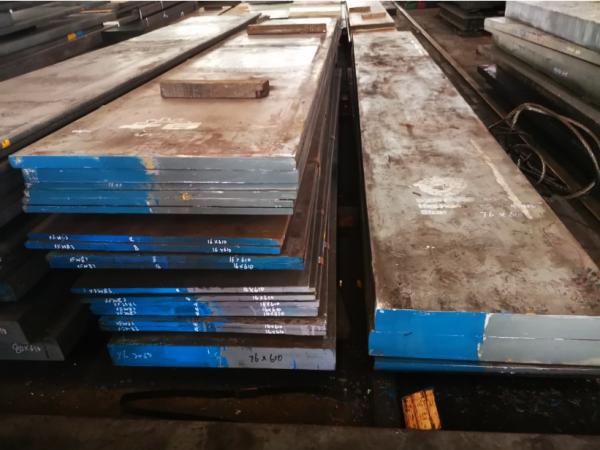

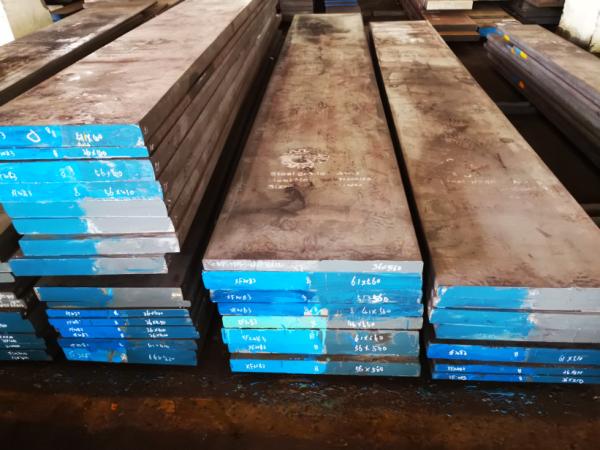

Product Photo
Strict Quality Control
Loading Photo
