Hot Rolled Hot Work Tool Steel Turned 1.2344 H13 SKD61 Turned Steel Round Bar
Hot Rolled Hot Work Tool Steel Turned 1.2344 H13 SKD61 Turned Steel Round Bar
Hot Rolled Hot Work Tool Steel Turned 1.2344 H13 SKD61 Turned Steel Round Bar
Hot Rolled Hot Work Tool Steel Turned 1.2344 H13 SKD61 Turned Steel Round Bar
Hot Rolled Hot Work Tool Steel Turned 1.2344 H13 SKD61 Turned Steel Round Bar
Hot Rolled Hot Work Tool Steel Turned 1.2344 H13 SKD61 Turned Steel Round Bar
Hot Rolled Hot Work Tool Steel Turned 1.2344 H13 SKD61 Turned Steel Round Bar
Hot Rolled Hot Work Tool Steel Turned 1.2344 H13 SKD61 Turned Steel Round Bar
Specifications
Brand Name :
CF
Model Number :
1.2344, H13, SKD61, 4Cr5MoSiV1
Certification :
ISO / MTC/ SGS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 MT/Month
Delivery Time :
7-15 days
Packaging Details :
Standard Export Packing or As per request
Standard :
DIN, JIS, AISI, ASTM, GB, BS
Melting :
EAF+LF+ESR
Technics :
Hot rolled, Forged
Flaw detection :
CC / DD/ EE
Surface Treatment :
Black/Peeled/Turned
Shape :
Round bar
Heat treatment :
Annealed / Q + T
Hardness :
＜255HBS
Performance :
Good hardenability, resistance
Cusoimized :
Yes / OEM
Our Service :
CIF / FOB / EXW
Description

Hot Rolled Hot Work Tool Steel Turned 1.2344 H13 SKD61 Turned Steel Round Bar

It's used for Die-casting mould of aluminum, extrusion mould, and thin-walled plastics mould.


1. Features
A, Good heat-resistance and fatigue-resistance.
B, Good cutting and polishing performance.

2. Application
Used for making hot squeeaing mould, forging mould and embedded lump.
A, Suitable to manufacturing aluminum, zinc, copper alloy extrusion die, die casting, hot forging die and hot shear blades, etc.
B, Extrusion mold of aluminum and magnesium, die-casting mold, especially adapt to the mold in large and complicated form.
C, Extrusion mold of copper alloy, die-casting mold

3. Heat Treatment
Quenching:
The first stage of preheating:500 ~ 550 ºC
The second stage of preheating:750 ~ 800 ºC
Cooling or high pressure gas cooling, 100 ~ 150 ºC in the tempering furnace.
Tempering:
Preheat:300 ~ 350 ºC
Tempering heating:550 ~ 680 ºC
Air cooling to room temperature, tempering three times.Quenching temperature 1000 ~ 1050 degrees, 50 to 55 HRC hardness, heat treatment deformation is small, can be nitriding surface nitriding processing, processing of products has better wear resistance.


4. SKD61 Hardness: Annealing 235 ~ 205 HB, quenching ≥50 HRC, tempering hardness 46-50HRC.

5. Delivery Detail
For abundant stock, 15-20 days.
For customized products, 30-50 days.
Package: We provide standard export packing or according to customers' request.

6. Grade

GB(China) AISI(America) JIS(Japan) DIN(Germany)
4Cr5MoSiV1 H13 SKD61 1.2344


7. Chemical composition (%)

C Si Mn Cr Mo V
0.38 1.0 0.5 5.0 1.4 1.0



8. Technical service:
Die nacuum heat treatment and die surface treatment (N-O, C-N, carburize and nitridation surface treatment).

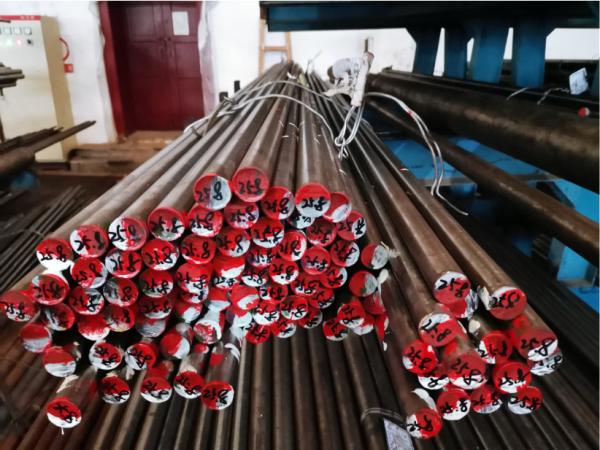

9. Product Photo

Hot Rolled Hot Work Tool Steel Turned 1.2344 H13 SKD61 Turned Steel Round Bar

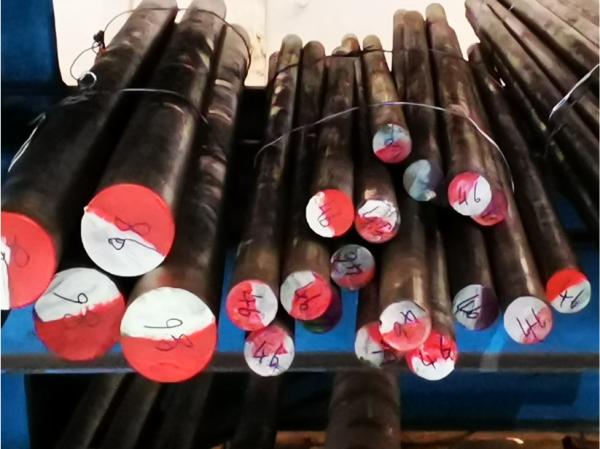

Strict Quality Control

Hot Rolled Hot Work Tool Steel Turned 1.2344 H13 SKD61 Turned Steel Round Bar

Loading Photo

Hot Rolled Hot Work Tool Steel Turned 1.2344 H13 SKD61 Turned Steel Round Bar
