Specifications
Brand Name :
Changfeng
Model Number :
DC53
Certification :
ISO/ Mill Certificate
Place of Origin :
China
MOQ :
3T
Price :
1475-2075 usd/sqm
Payment Terms :
T/T, L/C
Supply Ability :
1000t/Mouth
Delivery Time :
15-20 days
Packaging Details :
bulk packing
Technique :
Hot Rolled,Forged
Application :
Tool Steel Bar,Die Steel Bar,Cold work tool steel
Standard :
ASTM,GB,JIS
Type :
Mold Steel
Thickness :
10-70 mm
Surface :
Black surface
Shape :
Flat Bar
Description

DC53 Black Surface Cold Work mould Steel Flat Bar

DC53 Black Surface Cold Work mould Steel flat Bar with thickness 10-70mm

1. Application:

Line cutting processing of fine blanking die stamping die and all kinds of purpose. Hard processing material plastic deformation with tools. Cold forging, deep drawing and thread rolling die. High speed blanking punch, stainless steel plate punch.



2. Features

It is a kind of high toughness, high abrasion resistance steel, high hardenability and wear resistance, machineability, be good abrasive.


3. Steel Grade: DC53 Cold Work Mould Steel Flat Bar


4.
Chemical Compositons

C Si Mn P S Cr Ni Mo V
1.0 0.90 0.35 ≤0.030 ≤0.030 8.0 0.14 2 0.25



5. Size

Size of DC53 Cold Work Steel
Round bar Diameter(mm) Length (mm)
Max:80 Max: 6000
Plate Thickness(mm) Length (mm)
Max:70 Max:6000



6. Delivery Date

Abundant stock, 15-20 days.
Customized products, 30-50 days.


7. Payment term: T/T or L/C

8. Company Profile:

Guangzhou ChangFeng Steel Co., Ltd, is located in Guangzhou city, it was established in 2012, and is an Professional import and export company with ten years experience of selling special steel, which mainly sells plastic die steel, hot work die steel, cold work mould steel, alloy structural steel, bearing steel, tool steel, stainless steel, carbon steel, etc.
We also act on behalf of exporting steels of mainly steel factories in China, including Baogang group, Shagang group, Wenfeng group, Xingcheng group, Dongte group, Daye and so on. We are full of export experience to the market all over the word, such as America, Germany, France, Italy, Turkey, Singapore, Thailand, Malaysia, Vietnam, Taiwan, and Middle-East.
At the same time, We offer the seamless steel pipe, welded carbon steel pipe, GI pipe, and special pipe. Fittings elbow, tee, reducer, cap, lap joint, flanges etc...This is better for our customer to buy the different products from China, while they are saving their time, but they can enjoy in our best serves.

Hot Sale Products for Hot/Cold work Mold Steel

STANDARD/GRADE Flat Bar Size(mm) Round bar Size(mm) Technics
DIN AISM JIS GB(China) Thickness Width Length Diameter Length
1.2311 P20 PDS-3 3Cr2Mo 10-460 155-2200 1600-10000 12-120 4000-6000 Forged, Hot Rolled
1.2738 P20+Ni - 3Cr2NiMnMo 21-1200 1600-2200 4000-10000 - -
1.2379 D2 SKD11 Cr12Mo1V1 6-160 155-810 3000-6000 14-80 3000-6000
1.2080 D3 SKD1 Cr12 12-90 155-610 3000-6000 10-180 3000-6000
1.2083 420 - 4Cr13 12-260 205-2000 1600-6000 12-500 3000-6000
1.2344 H13 SKD61 4Cr5MoSiV1 16-500 205-1000 3000-6000 150-450 3000-6000
1.2510 O1 SKS3 9CrWMn 9-120 155-610 3000-6000 8-80 3000-6000
1.7225 SAE4140 SCM440 42CrMo 20-280 155-2200 2000-6000 16-450 3000-10000

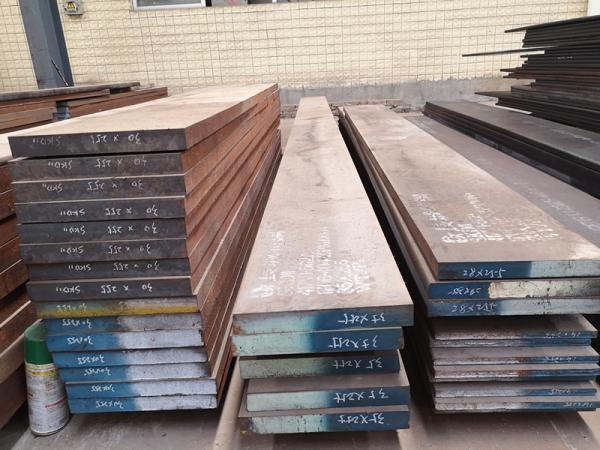

Warehous
