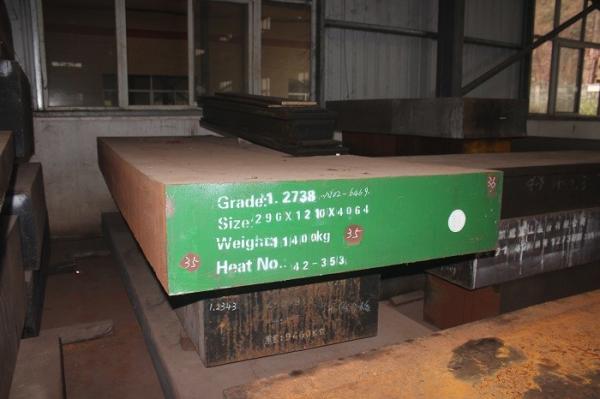

1.2738 P20+Ni 718 3Cr2NiMnMo Plastic Mold Steel Block With Thickness 300-810mm
1.2738 P20+Ni 718 3Cr2NiMnMo Plastic Mold Steel Block With Thickness 300-810mm
1.2738 P20+Ni 718 3Cr2NiMnMo Plastic Mold Steel Block With Thickness 300-810mm
1.2738 P20+Ni 718 3Cr2NiMnMo Plastic Mold Steel Block With Thickness 300-810mm
Specifications
Brand Name :
Changfeng
Model Number :
1.2738/P20+Ni/3Cr2NiMnMo
Certification :
ISO/ Mill Certificate
Place of Origin :
China
MOQ :
3T
Price :
To be negotiated
Payment Terms :
T/T, L/C
Supply Ability :
1000 ton/Month
Delivery Time :
15-20 days
Packaging Details :
bulk packing
Shape :
Block
Process Technology :
Annealed/Forged
Heat Treatment :
Annealed / Q+T
Quality Inspection :
100% UT passed
Thickness :
300-810mm
Description

1.2738 P20+Ni 718 3Cr2NiMnMo Plastic die Steel Block


DIN 1.2738, forged Plastic Mould Steels, pre-hardened large size injection mould, can be pollished normally.Used for making high demand large size plastic mould.

1. Features
A. uniform hardness qualitative of Material.
B. No quenching crack danger,Without heat treatment costs that can reduce the tool cost.
C. Excellent polishing performance.
D. Good machining performance.

2. Application
Used for various large -sized mirror plastic mould,percision mould.
A. Leather grain, pear skin grain etching, imitation stone moulds.
B. Clear plastic container classes such as pencil case, commodity high gloss mould.
C. Such as refrigerator, air conditioner production to demand higher large mould.

3. Grade

GB AISI DIN
3Cr2NiMnMo P20+Ni 1.2738


4. Chemical composition(%)

C Mn Si Cr Ni Mo P S
0.35-0.45 1.30-1.60 0.20-0.40 1.80-2.10 0.90-1.20 0.15-0.25 ≤0.035 ≤0.035

5. Hardness:33-37HRC

6. Packing:Standard Export Packing or As per request

7. Delivery:
Abundant stock, 15-20 days.
Customized products, 30-50 days.

Package: We provide standard export packing or according to customers' request.

All the sizes as require can be customerized as fresh production with MOQ,products of required specifications can be developed/produced per international, chinese or industry standards, or based on agreements with customers.

8. The process flow
1) Hot rolled or forged condition, Pre-harden &tempering , black surface
2) Hardness:30~36HRC
3) Hot rolled technology:EAF+LF+VD
Forged technology:EAF+LF+VD+ESR+Forging +QT + Machined surface

9. Payment term: T/T or L/C

FAQ:

Q: Are you a manufacturer or merely a trader?
A: We are trading company act as exporting Steel Products with our own factory,
we can manufacture the products as in cutomer's requirement,wholesale and retail all kinds of domestic mould steel,the price we offered is very competitive compared with other agents.

Q: How do you guarantee the quality of your product?
A: Firstly, we can provide the certificates from the third party, such as SGS, CE,ISO if you need. Secondly, we have a complete set of inspection system and every process is checked by QC. Quality is the lifeline of enterprise survival. Third,the products we export are mainly from ShaGang group, WenFeng group, XingCheng group, DongTe group,DaYe and so on, the quality are certained.

Warehous

1.2738 P20+Ni 718 3Cr2NiMnMo Plastic Mold Steel Block With Thickness 300-810mm

Processing

1.2738 P20+Ni 718 3Cr2NiMnMo Plastic Mold Steel Block With Thickness 300-810mm


Strict Quality Control

1.2738 P20+Ni 718 3Cr2NiMnMo Plastic Mold Steel Block With Thickness 300-810mm

1.2738 P20+Ni 718 3Cr2NiMnMo Plastic Mold Steel Block With Thickness 300-810mm
